Product Description

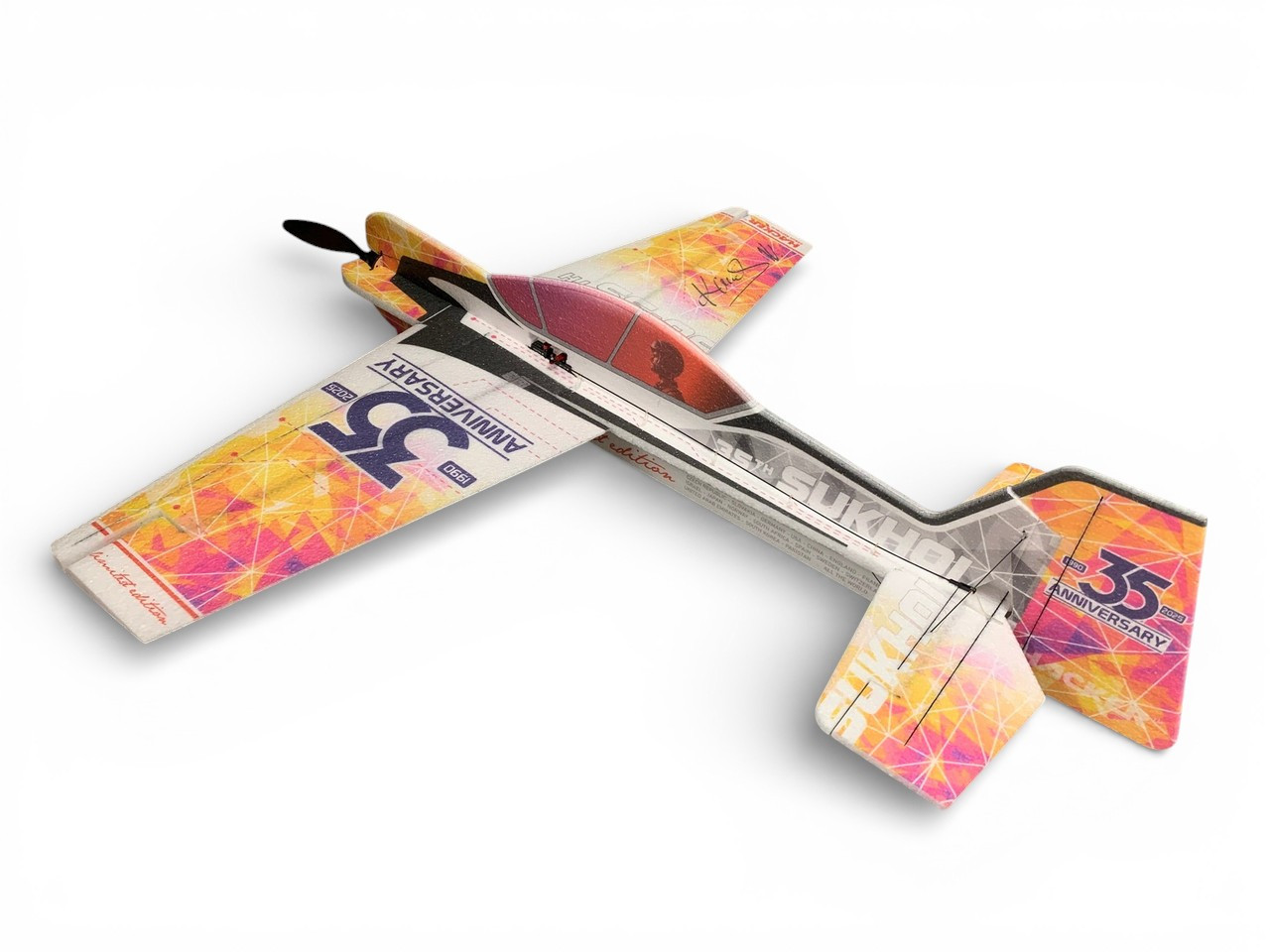

HM 39" EPP Sukhoi SU-35th
Created to celebrate Hacker Model Production’s 35th anniversary, the SU-35th is a limited-edition EPP aerobatic model inspired by the legendary SU-29. It combines a strong carbon-reinforced fuselage, precision-milled components, and excellent maneuverability in a durable 39" airframe.
Oversized ailerons, refined control surfaces, and redesigned landing gear give the SU-35th strong aerobatic performance, improved takeoff handling, and a wide flight envelope for both airfield flying and smaller flying areas.
Features and Specifications
- Wingspan: 39 inches / 1000 mm
- Estimated Flying Weight: Approximately 375 to 390 g, depending on equipment
- Construction: Printed EPP with carbon-fiber reinforcement
- Airframe: Limited-edition 35th anniversary aerobatic design inspired by the SU-29
- Control Surfaces: Oversized ailerons and refined control surfaces for strong maneuverability
- Landing Gear: Redesigned gear for improved takeoff and ground handling
- Recommended Battery: 3S 850 mAh LiPo with XT30 connector, 25C or higher, with 25C to 60C burst maximum recommended for this system
- Flight Style: Sport aerobatics, precision flying, freestyle, and aggressive 3D
- Pilot Level: Intermediate to Advanced
Required to Complete
This is an airframe kit. The recommended power system, radio equipment, battery, charger, adhesive, and spinner are sold separately. No printed manual is included; downloadable PDF resources are available below.
Recommended Matched Power System
3S Setup: Use a 3S 850 mAh LiPo with XT30 connector and the recommended PC11 power system. A 25C or higher pack is recommended, with 25C to 60C burst maximum being a good range for this setup.
PC11 Power System Includes
- CSP 2213 1100KV brushless motor
- BOLT 22A ESC with XT30 connector
- Four CSP-D14M digital metal-gear servos
- 10 x 4.7 Slow Fly propeller
Important: Always confirm proper CG, control direction, motor direction, and ESC throttle calibration before flight. Remove the propeller before throttle calibration or ESC setup.
Additional Required Items
- 4-channel or greater transmitter and compatible lightweight receiver
- 3S 850 mAh LiPo battery with XT30 connector
- LiPo-compatible balance charger
- Foam-Tac and CA glue as specified during assembly
Build Resources and Compatible Parts
