Product Description

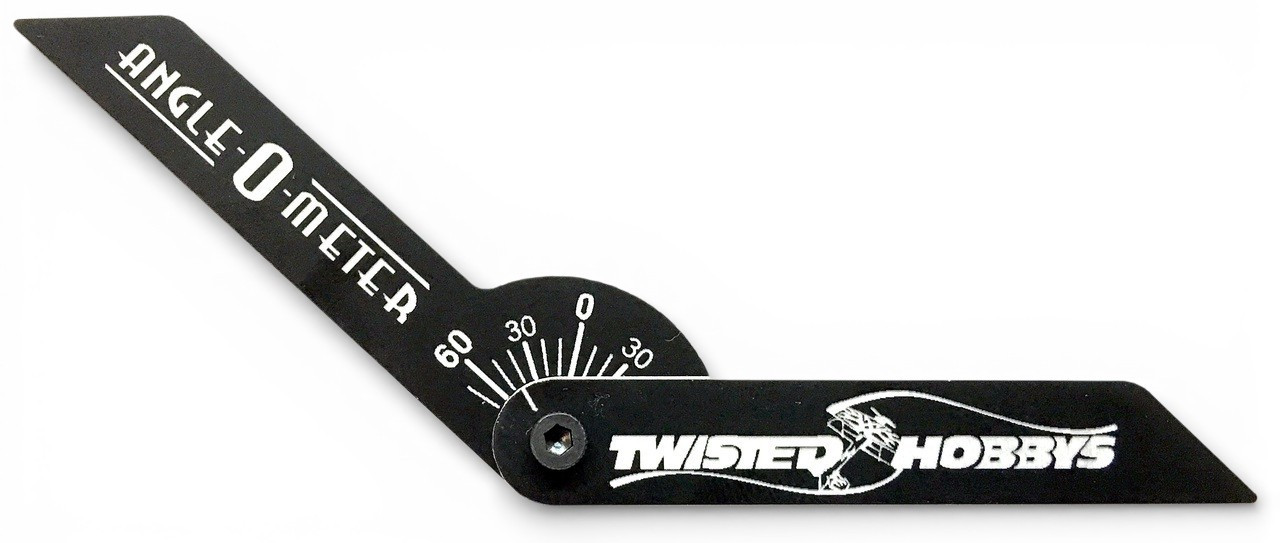

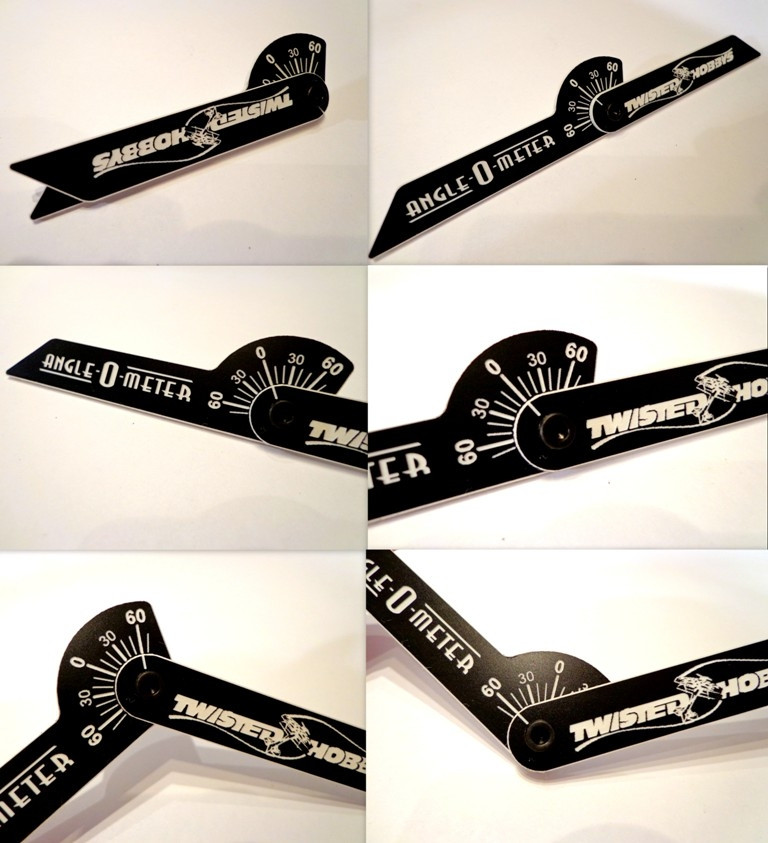

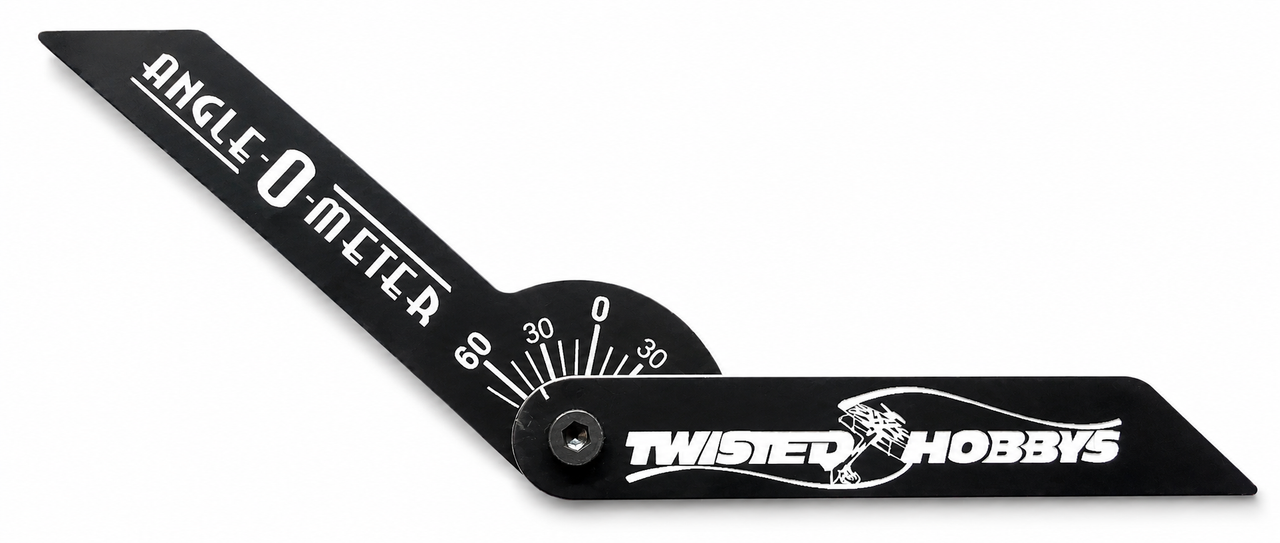

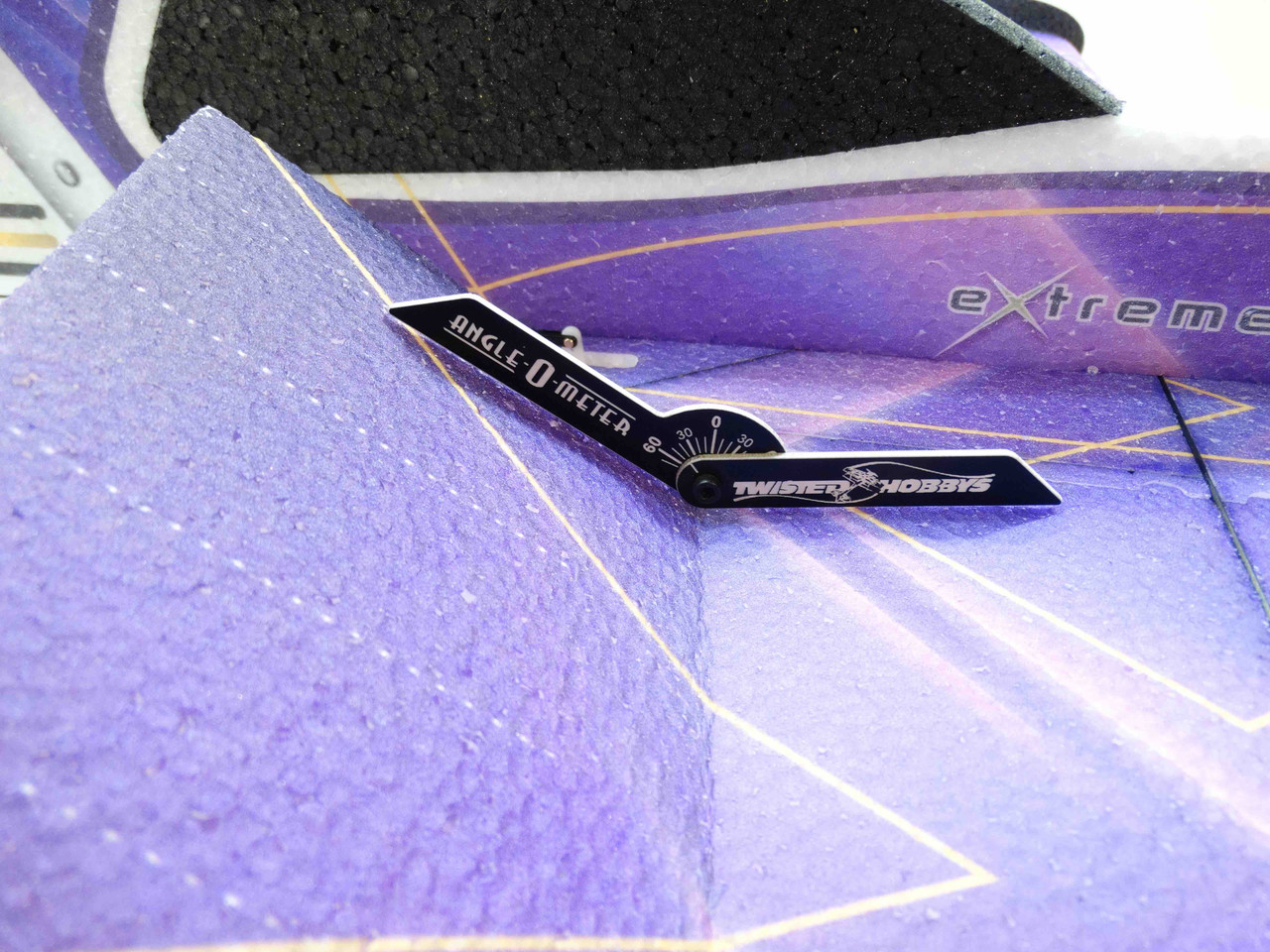

Twisted Hobbys Control Throw Angle-Meter Tool
The Twisted Hobbys Control Throw Angle-Meter provides a simple and repeatable way to measure aileron, elevator, and rudder movement during aircraft setup.
Its easy-to-read scale measures control deflection up to 70 degrees in either direction, helping you match control throws and identify unwanted differential.
Key Features
- Measures control-surface movement up to 70 degrees in either direction
- Helps match positive and negative control throws
- Useful for checking aileron, elevator, and rudder differential
- Bold, easy-to-read angle markings
- Suitable for sport, precision-aerobatic, and 3D aircraft
- Compact and reusable setup tool

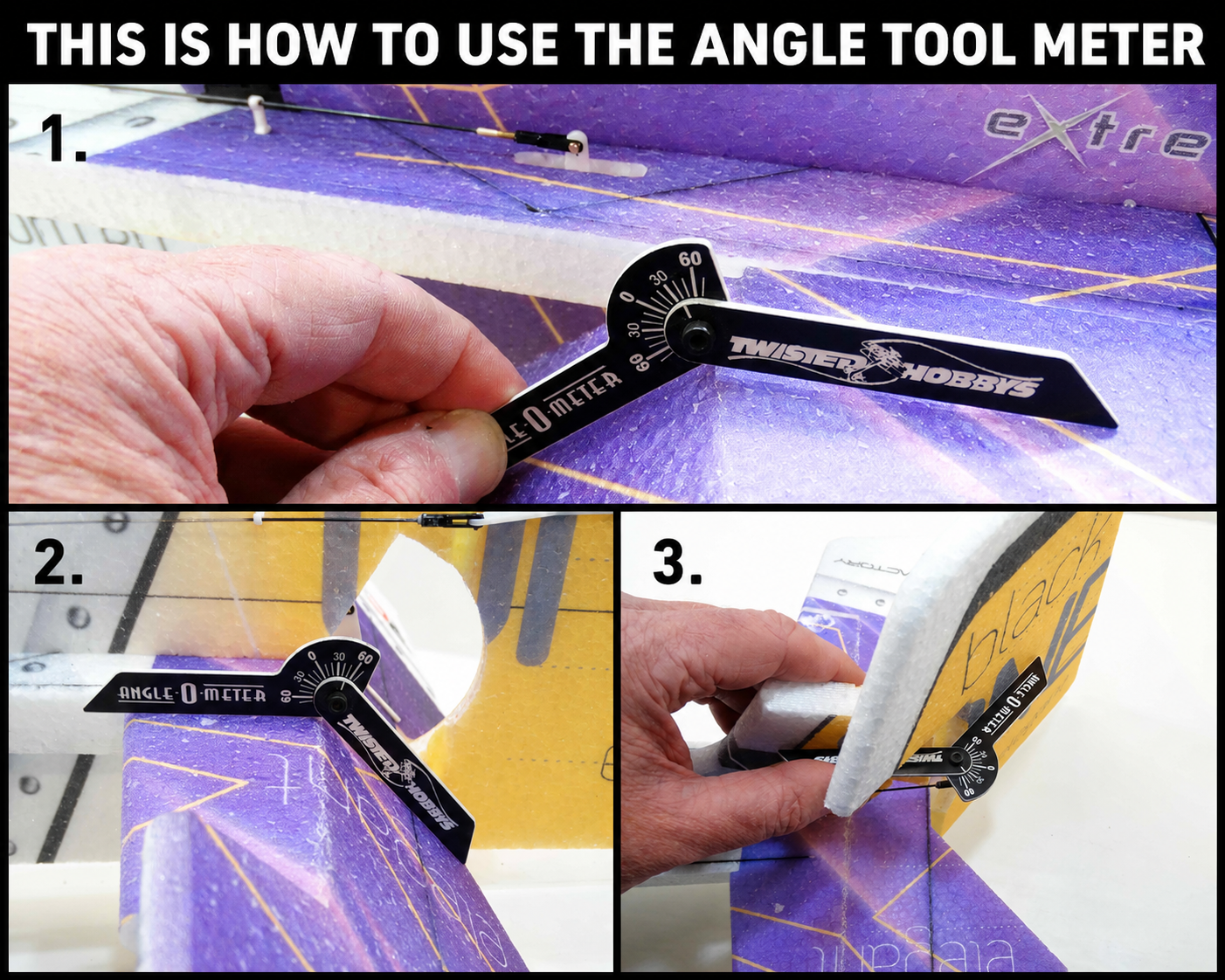

Basic Use

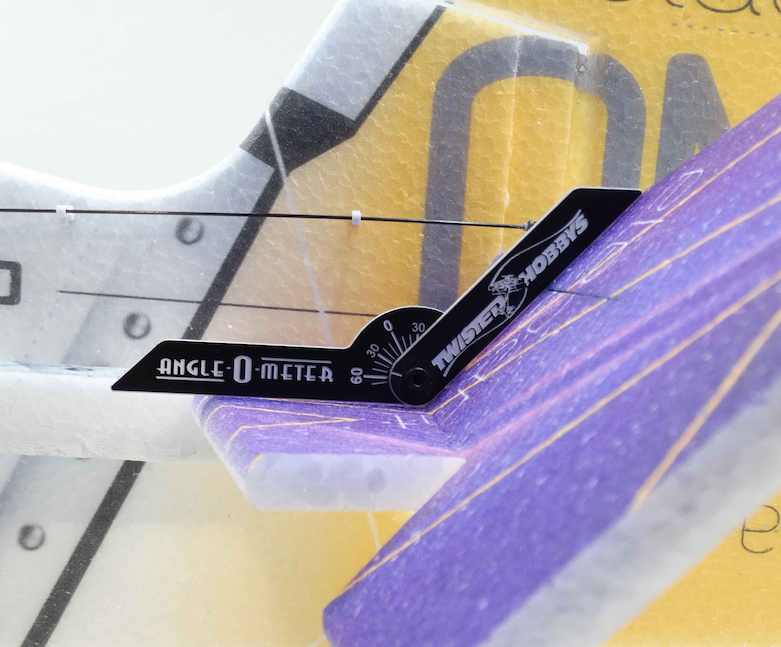

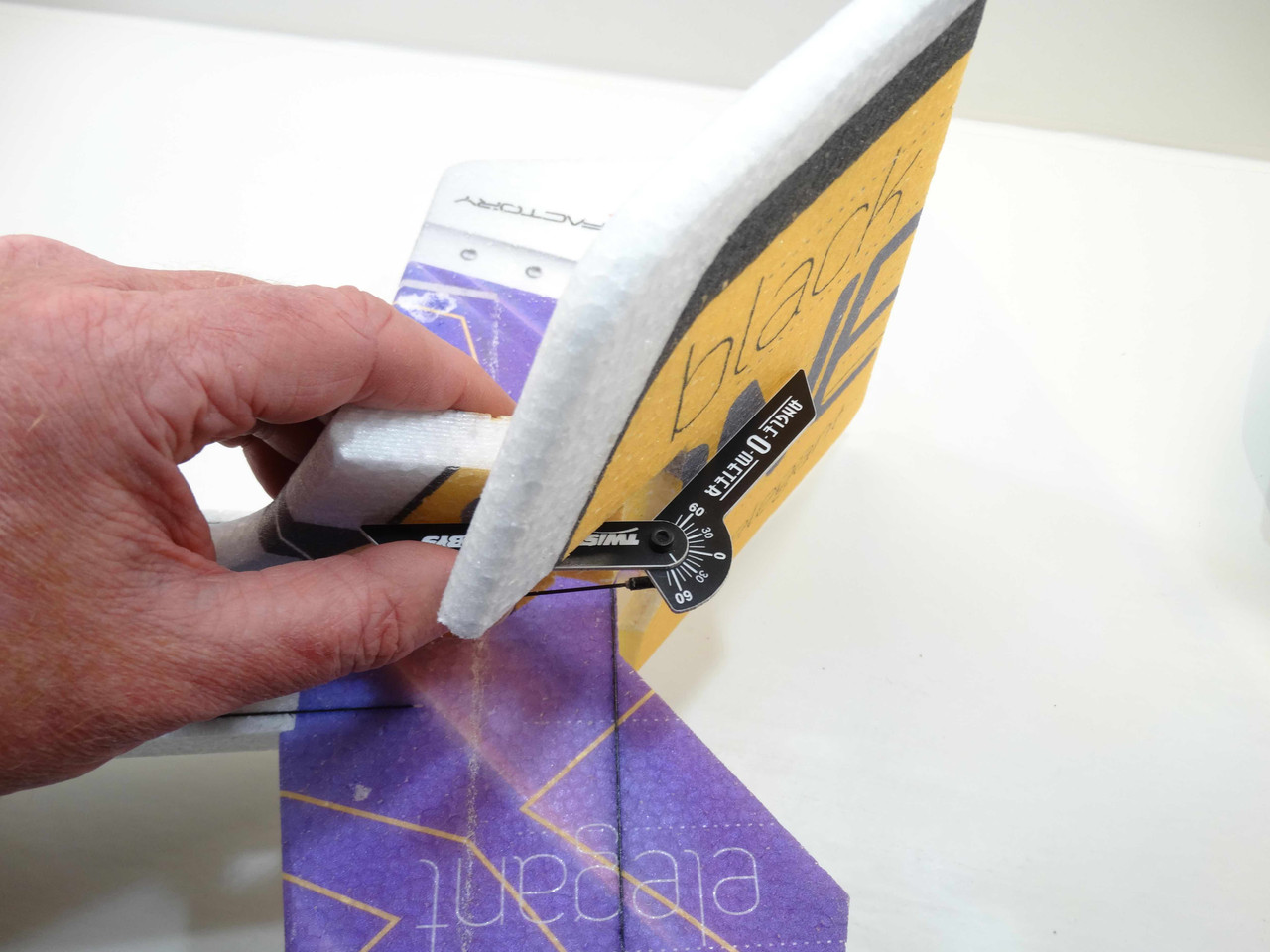

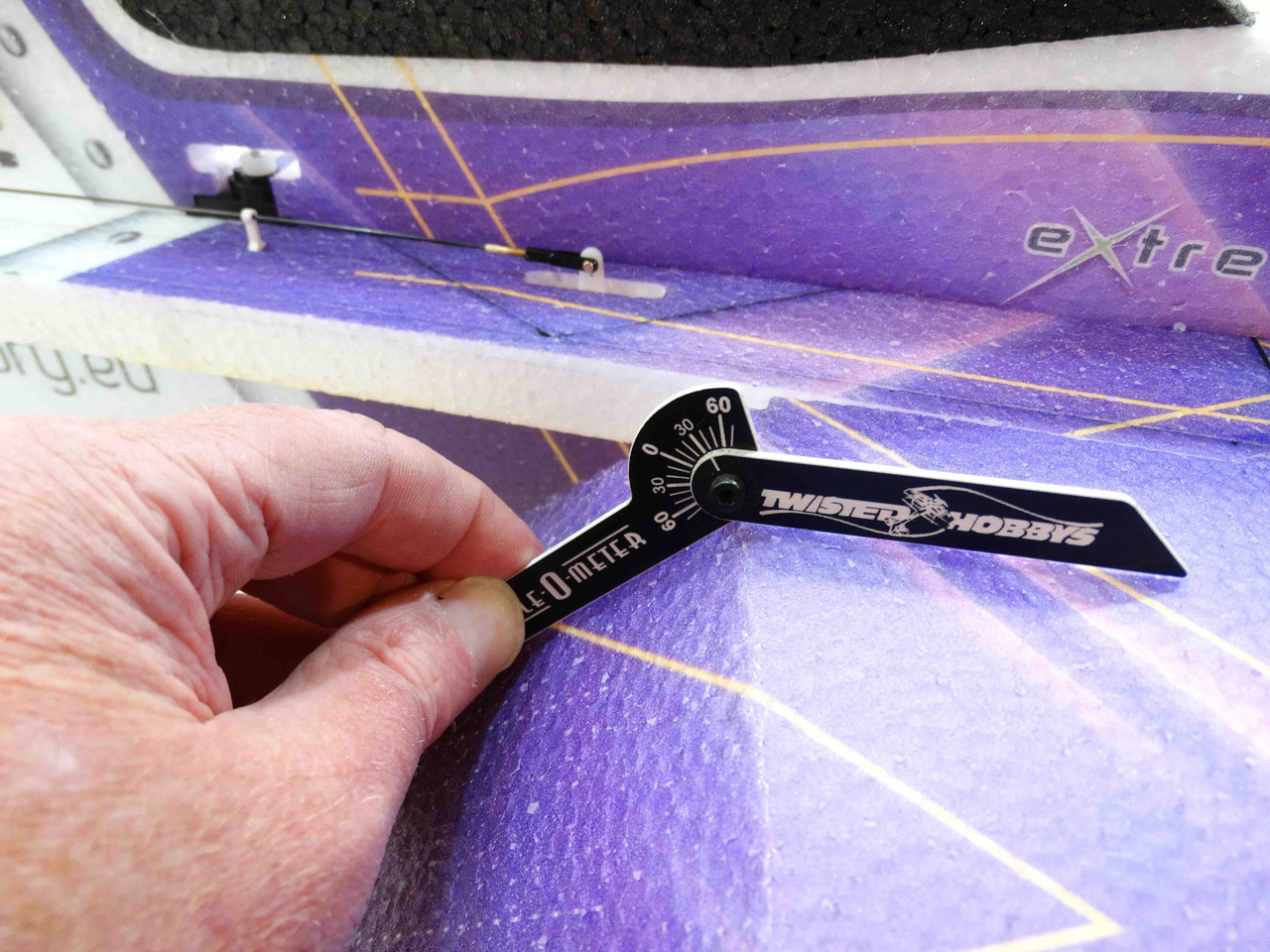

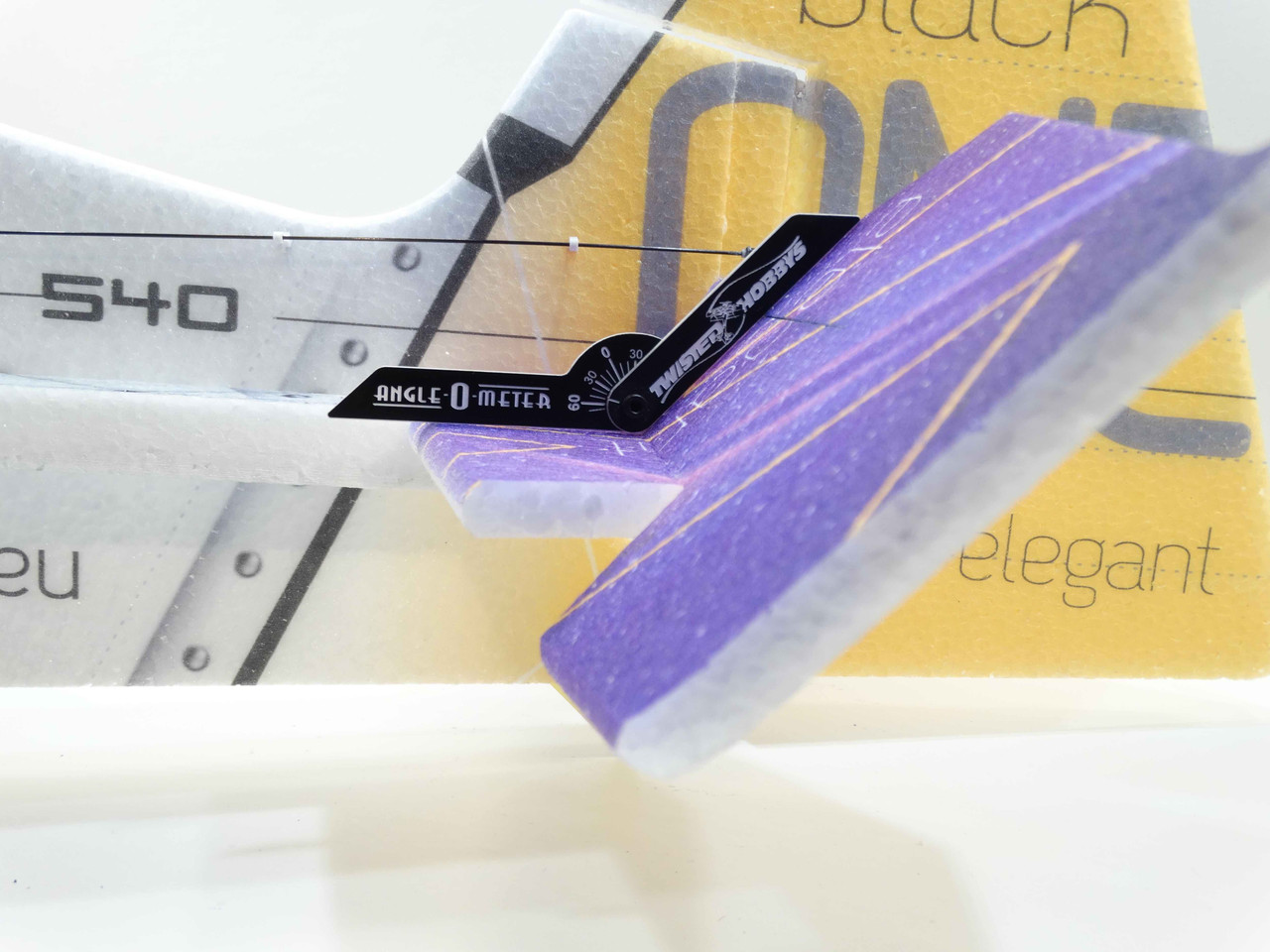

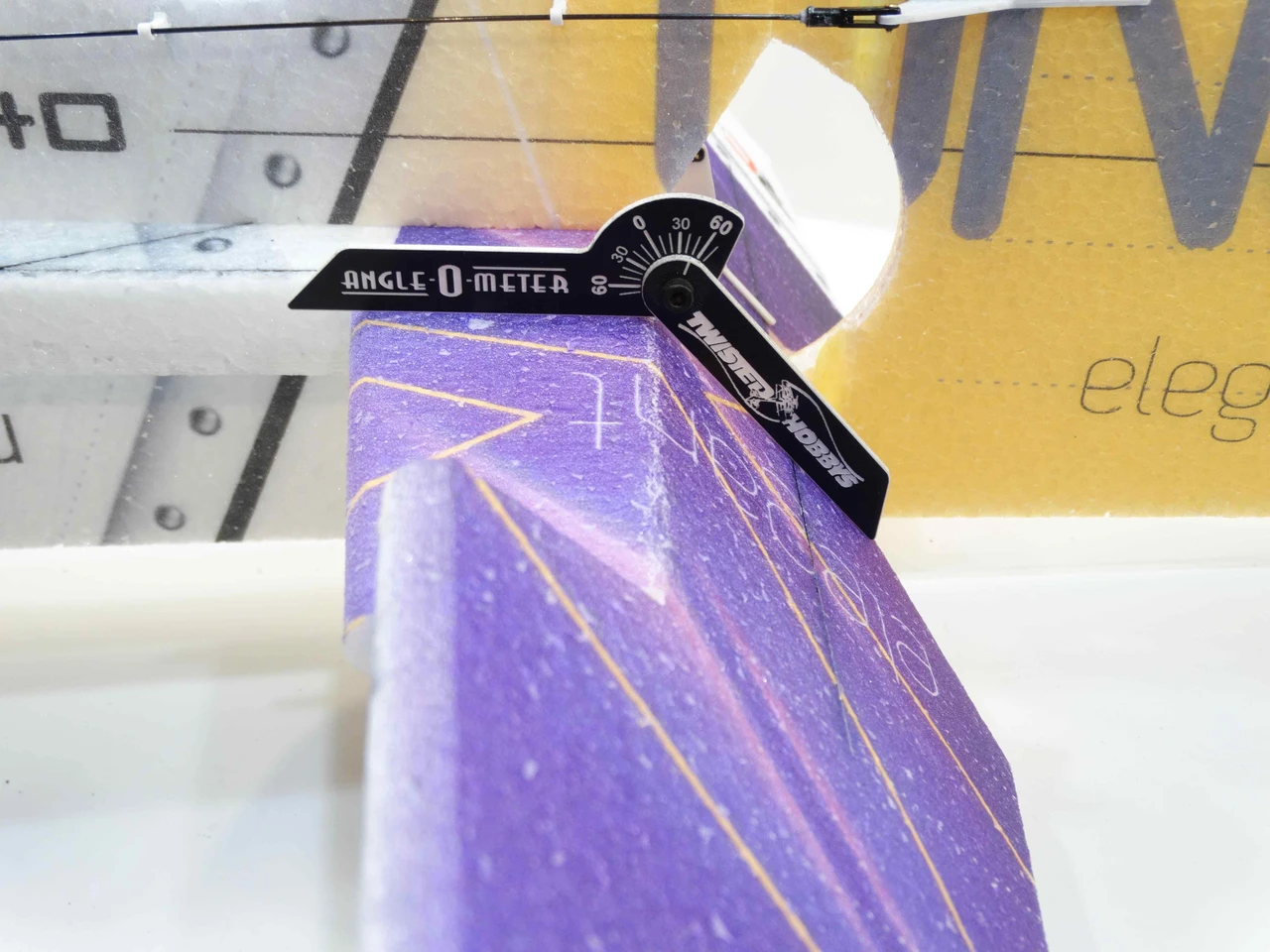

- Center the control surface and position the tool at the measurement point.
- Move the surface to full travel and read the angle shown.
- Measure the opposite direction from the same position and adjust the linkage or transmitter settings as needed.
Included
- One Twisted Hobbys Control Throw Angle-Meter Tool
Related Aircraft Setup Tools
Product Videos
Custom Field
Product Reviews
7 Reviews Hide Reviews Show Reviews
-
Throw Angle-Meter
WOW A few weeks ago I misplaced a very old wooden angle meter that looked like this one. I web searched everywhere for a similar one and the only one I found was at TW. Now don't get we wrong but when I ordered this one, I had extremely low expectations. When it arrived, I felt nothing in the mailing envelop, and I was thinking it's carboard! BUT then I opened it ... Let me say it's great! Its plastic, made well, easy to read, easy to adjust tension, and "handles" better that the lost bigger one!. Might be pricey, but you won't regret the purchase. Only issue is ... I lost one that was 3X bigger!!! I've already found a nice case to keep this one in! (When the old one is found, it'll go to a storage location!)
-
Works as prescribed
Purchased to try it out, works just fine. Small enough not to damage surface.
-
Throw Angle-Meter Tool
I used this on two models. The arms are fairly tight. This is good if you are trying to match the two control surfaces or perhaps the up and down throws. It would be OK if you preset the tool and then try to match the angle on the plane. Of course you have to conver the inch or mm throws to angles. If you are wanting to place it on the surface and let it swing as you adjust the surface, you would need to loosen the pivot.
-
angle-meter
Small and light, works great on small foam models.
-
accurate
Didn't know what to expect much better quality then i thought. Works great for all models.
-
Great tool for angle setting
Great little tool for checking the angle of surface throws. Very simple and straightforward. Every toolbox should have one.
-
great tool
helped me find my roll barrel issue for my pitts model. Can now set up my throws and dial in each plan I have. Use it on 3dhs Slick also.
