Product Description

The Ultra Halo XX1 is a lightweight, high-output LED lighting kit developed for approximately 32–48-inch RC aircraft. Two extended, fully pre-wired light sticks provide excellent multi-angle visibility during evening, low-light, and nighttime flying, while the installed JST connector allows simple plug-and-play operation from a compatible 3S LiPo power source.

Ultra Halo XX1 Overview

Made in the USA

Aircraft Size

32–48 in

Power Source

Compatible 3S LiPo

Recommended Voltage

11.4V–12.6V

Maximum Voltage

16V

LEDs

4 Per Light Stick

Stick Length

Just Under 8 in Each

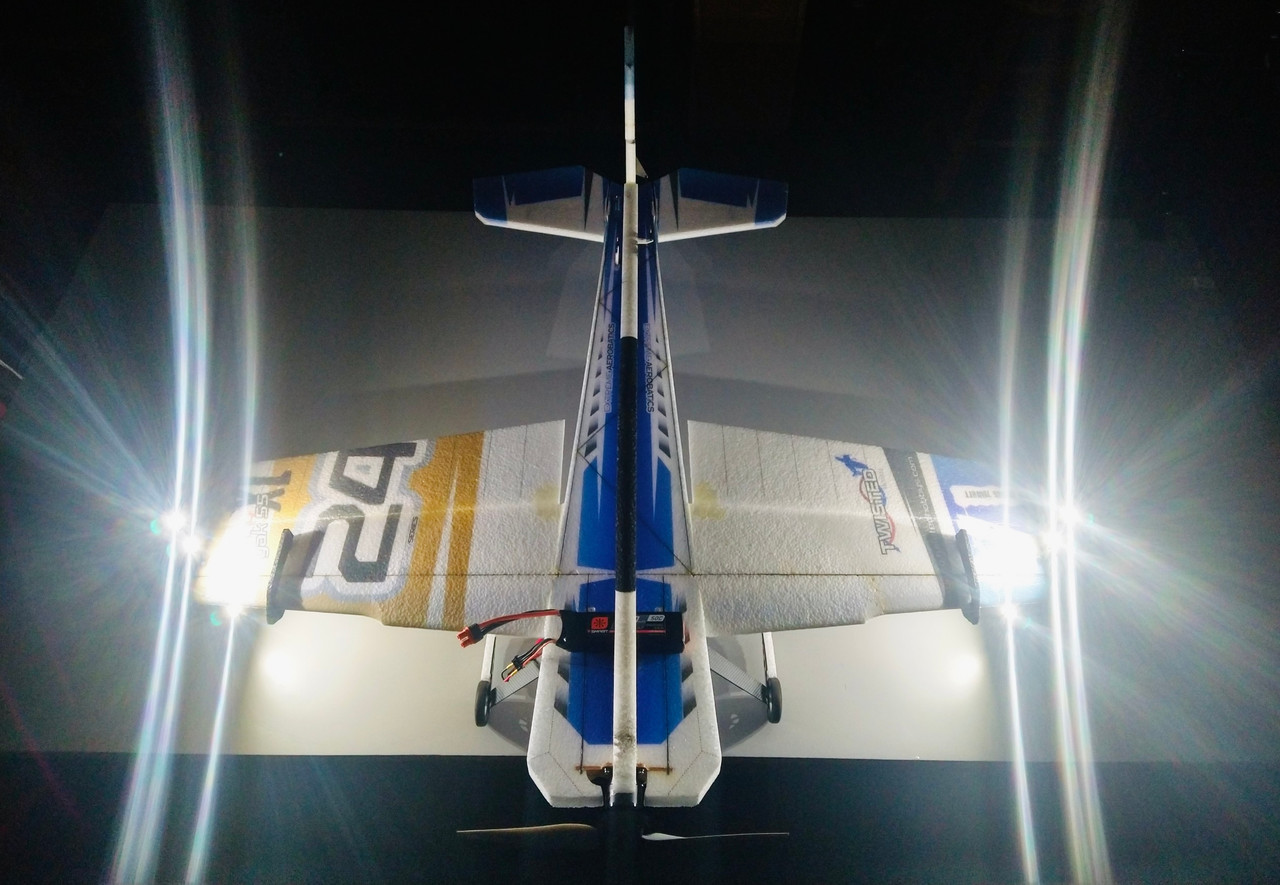

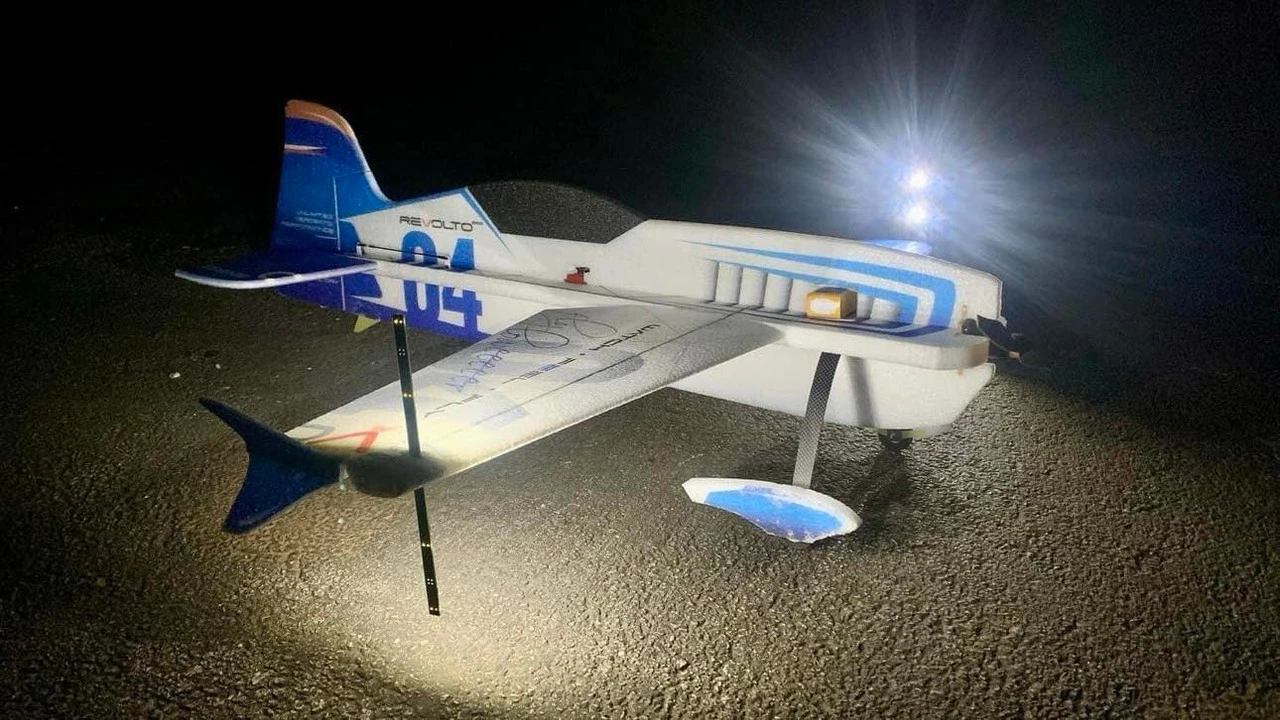

Extended Night-Flight Visibility

Four high-output 6500K daylight-white LEDs on each extended light stick help make the aircraft easier to track from multiple angles. The complete system arrives pre-wired with a JST power connector, so standard installation requires no soldering.

XX1 Lighting Kit

Light Sticks: Two extended LED light sticks

LEDs: Four high-output daylight-white LEDs per stick

Connection: Pre-installed JST power connector

Protection: Polarity-protected circuit design

Color Temperature: 6500K daylight white

Electrical Performance

Standard Current: Approximately 100mA per light stick

Combined Standard Current: Approximately 200mA

Current at 16V: Approximately 150mA per light stick

Combined Current at 16V: Approximately 300mA

Light Output: Approximately 100 lumens per light stick

Important Power Requirement: The XX1 is designed for a compatible 3S LiPo power source, with 11.4V to 12.6V recommended. Never exceed the 16V maximum input voltage, and confirm correct connector polarity before connecting the battery or applying power.

Installation Notes

Connect to 3S Power

Use the installed JST connector with a compatible 3S LiPo power source.

Keep the LEDs Visible

Position the light sticks where the LEDs remain unobstructed by foam, covering, wiring, or other components.

Secure the Installation

Keep the light sticks and wiring away from control linkages, servos, the motor, and the propeller.

Disconnect After Use

Disconnect the flight battery whenever the aircraft is not in use.

Optional Shortened Configuration: When the full stick length is not required or mounting space is limited, one LED section may be removed from each end of both light sticks. This creates a shorter installation while maintaining illumination across the aircraft.

Permanent Modification: Shortening the boards is permanent and reduces the total number of LEDs and overall light output. Carefully review the circuit-board layout before making any cuts.

Compatible Products and Resources

XX1 Manual and Information Sheet Ultra Halo XX1 Video LED Wire Staples View Smaller Ultra Halo XX0 Kit

Product Videos

Videos Hide Videos Show Videos

Custom Field

Product Reviews

Write a Review

4 Reviews Hide Reviews Show Reviews

5
Yak Lights

Posted by Sanka Perera on Sep 6th 2023

Quality is high! Not a cheap flimsy LED kit like I've used before, holy cow they light up the sky. I can easily fly 3D in pitch black fields. This is a must for those short winter days.
5
Ultra Halo light kit

Posted by Anthony Coffey on Sep 3rd 2022

These are great!!!! Picked this kit up to use on my crack yak XL and they didn’t disappoint!
5
Very Bright

Posted by Mark the Great on Oct 9th 2016

These lights are very bright when using a 3s lipo.
5
Very bright

Posted by Nick Samual on Sep 4th 2016

Didn't think this was going to be as bright as it was. Also very straight forward and well thought out product. This is installed on a 48" Sbach using 4503s. no heat which is a plus for a foamy. Plan to use on my MxS EF model next. Need to make one larger for my 79" slick would be nice.
