Ultra Halo XX0 LED Light Stick Kit – Small

Ultra Halo XX0 LED Light Stick Kit: Small and Lightweight

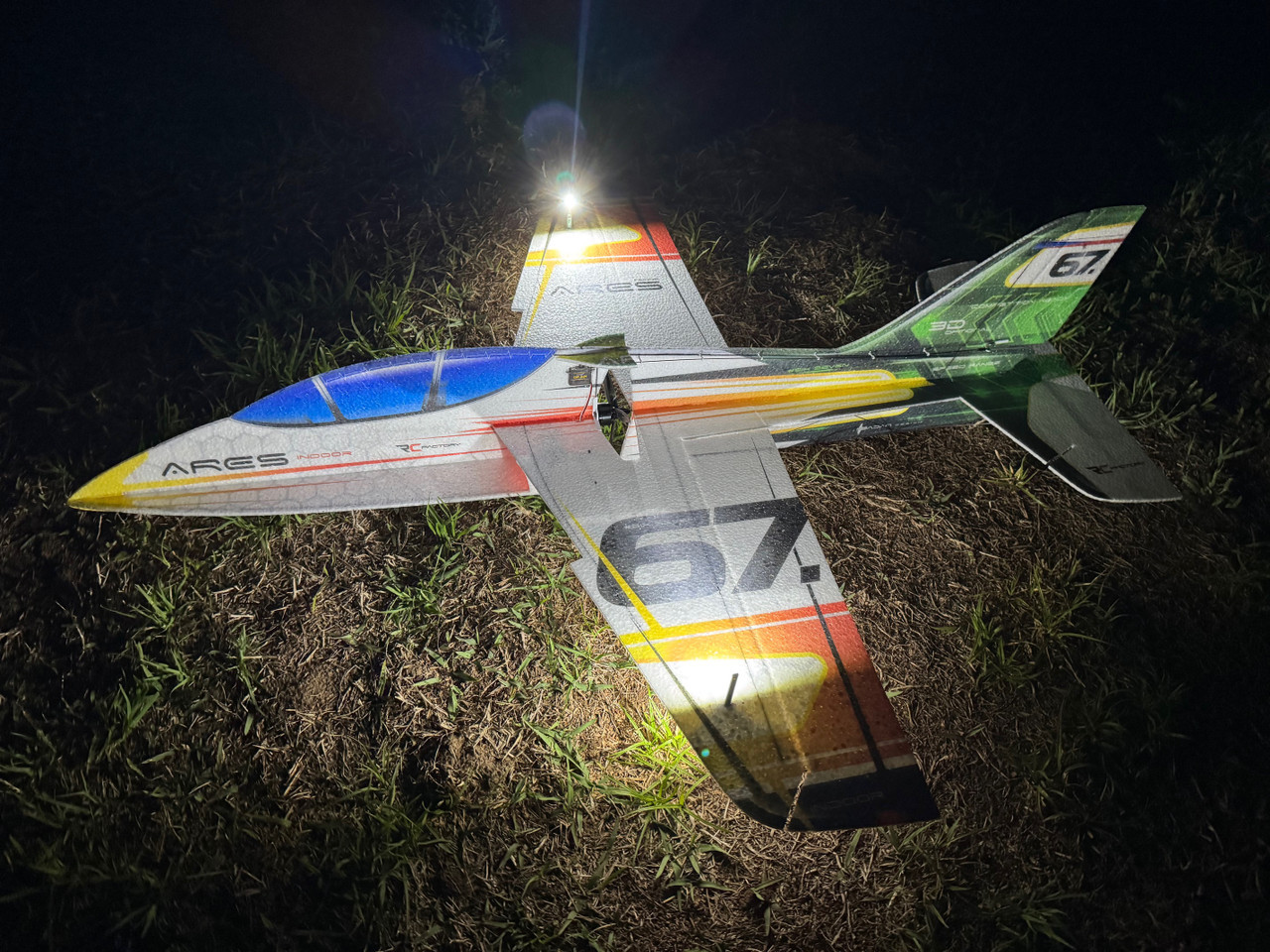

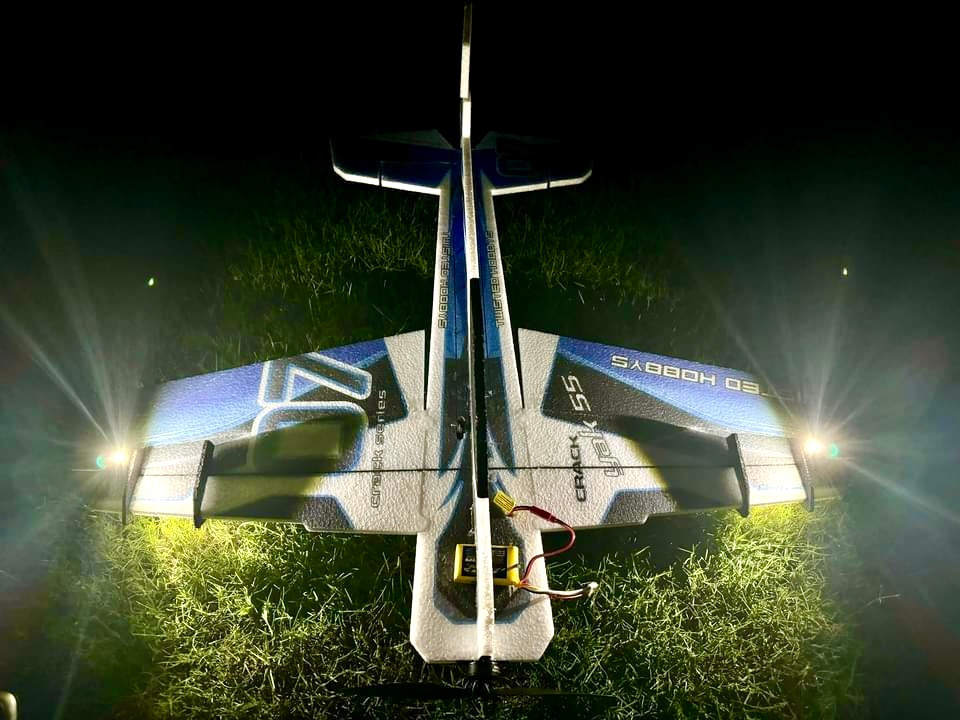

The Ultra Halo XX0 is our smallest and lightest LED lighting kit, developed for 20 to 35-inch RC aircraft where brightness and visibility are needed without adding unnecessary weight. The complete system arrives fully pre-wired with a standard servo-style connector for simple plug-and-play installation.

Each light stick uses 2 high-output daylight-white LEDs.  LED faces inward while providing excellent visibility from multiple angles during evening, low-light, and nighttime flying. No soldering is required for standard installation.

Key Features

• Designed for approximately 20 to 35-inch RC aircraft
• Extremely lightweight two-stick lighting system
• 2 high-output LEDs per light stick
• Upward, downward, and inward-facing illumination
• 6500K daylight-white color temperature
• Approximately 100 lumens per light stick in standard configuration
• Fully pre-wired with a standard servo-style connector
• No soldering required for standard installation
• Low current consumption for minimal effect on flight time
• Manufactured in the USA

Specifications

• Recommended Aircraft Size: 20 to 35-inch wingspan
• Operating Voltage: 4V to 6V
• Recommended Voltage: 5V
• Maximum Input Voltage: 6V
• Standard Current Draw: Approximately 40 to 60mA per light stick
• Current Draw at 6V: Approximately 60mA per light stick
• Light Output: Approximately 100 lumens per light stick
• Color Temperature: 6500K daylight white
• LEDs: 2 per light stick.
• Light-Stick Weight: Approximately 1.7 g each
• Wire-Harness Weight: Approximately 2.5 g and may be shortened to reduce weight
• Connection: Standard servo-style plug
• Installation: Fully pre-wired and plug-and-play, faced inward

Installation and Power Notes

• Connect the kit to a compatible receiver port, regulated BEC output, or regulated 4V to 6V power source.
• Confirm that the power source can support the lighting system together with the receiver and all connected servos.
• Do not exceed the 6V maximum input voltage.
• Position the light sticks so the LEDs remain unobstructed by foam, covering, wiring, or other components.
• The wire harness may be carefully shortened when minimizing installed weight is a priority.
• Secure loose wiring to prevent contact with linkages, servos, the motor, or the propeller.

Optional High-Output Mode

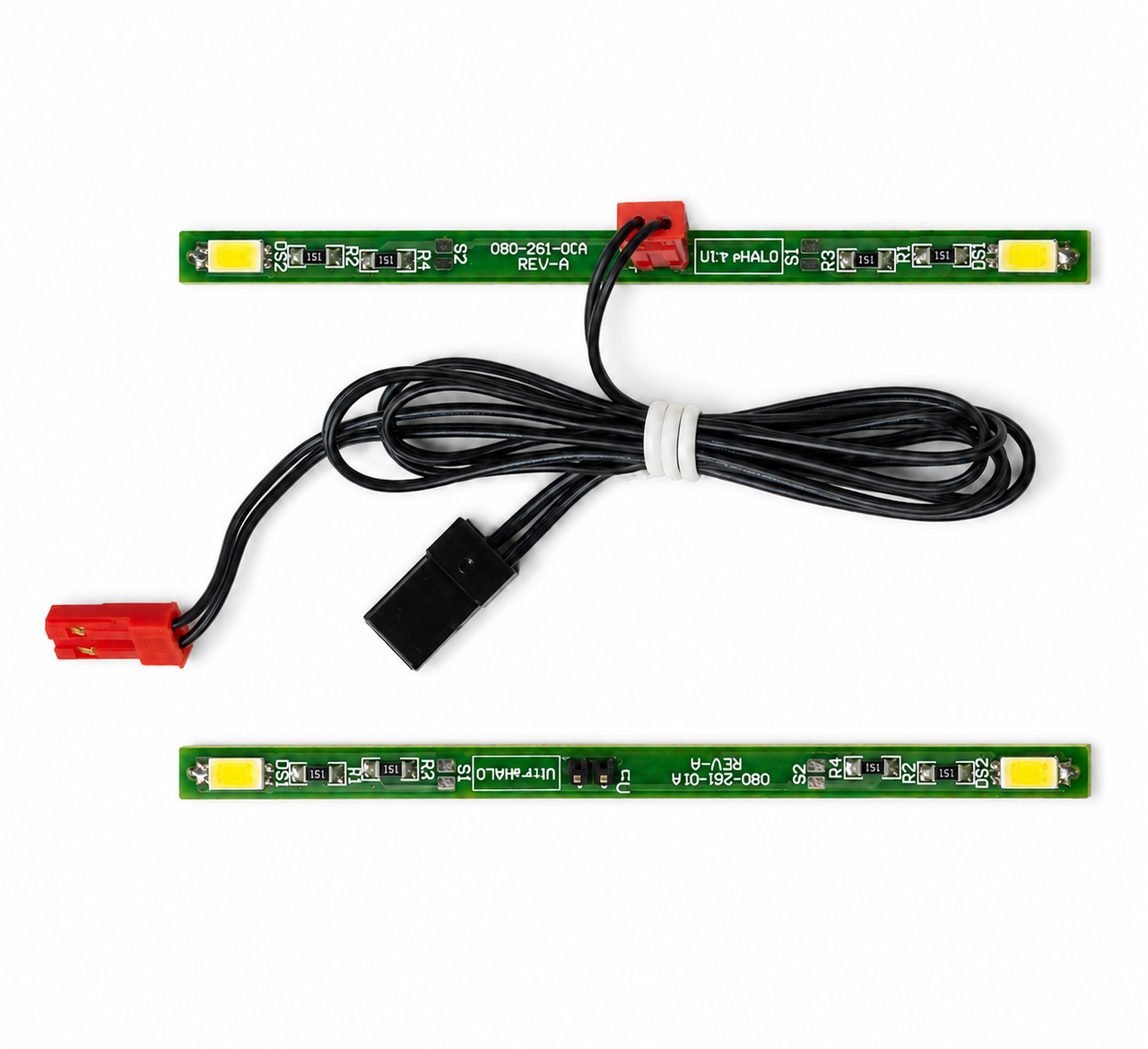

For increased brightness, solder points S1 and S2 may be bridged with a small solder connection. This modification approximately doubles the light output and increases current consumption.

• Maximum Current at 6V: Approximately 120mA per light stick
• Combined Two-Stick Current at 6V: Approximately 240mA

Only perform the high-output modification if you are comfortable soldering small electronic components. Verify that the receiver or BEC has enough available current capacity for the lights, receiver, and all servos before operating in high-output mode.

Compatible Products and Accessories

• Wire Staples for Securing LED Wiring

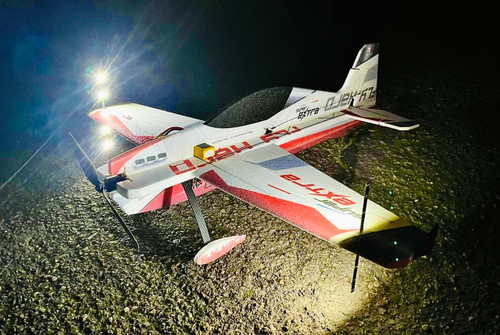

• View the Larger Ultra Halo XX1 Light Stick Kit

Made in the USA.
