Product Description
PC11 Power Combo: 39-Inch Mono and 37-Inch Revo Models
The PC11 Power Combo combines the matched motor, ESC, servos, and propeller recommended for many 39-inch airfoiled monoplanes and 37-inch Revo-series aircraft.
The included components provide strong 3D performance, smooth throttle response, and a simplified installation without purchasing each electronics component separately.
Recommended Flight Setup
Battery: 3S 850 mAh LiPo with XT30 connector
Propeller: Included 10 x 4.7 Slow Fly propeller
Key Features
- Matched electronics package for compatible 37 to 39-inch EPP aircraft
- Complete motor, ESC, servo, and propeller combination
- Optimized for 3S LiPo operation
- XT30 battery connection
- Includes motor-connector adapters for installation
- Suitable for precision aerobatics and advanced 3D flying

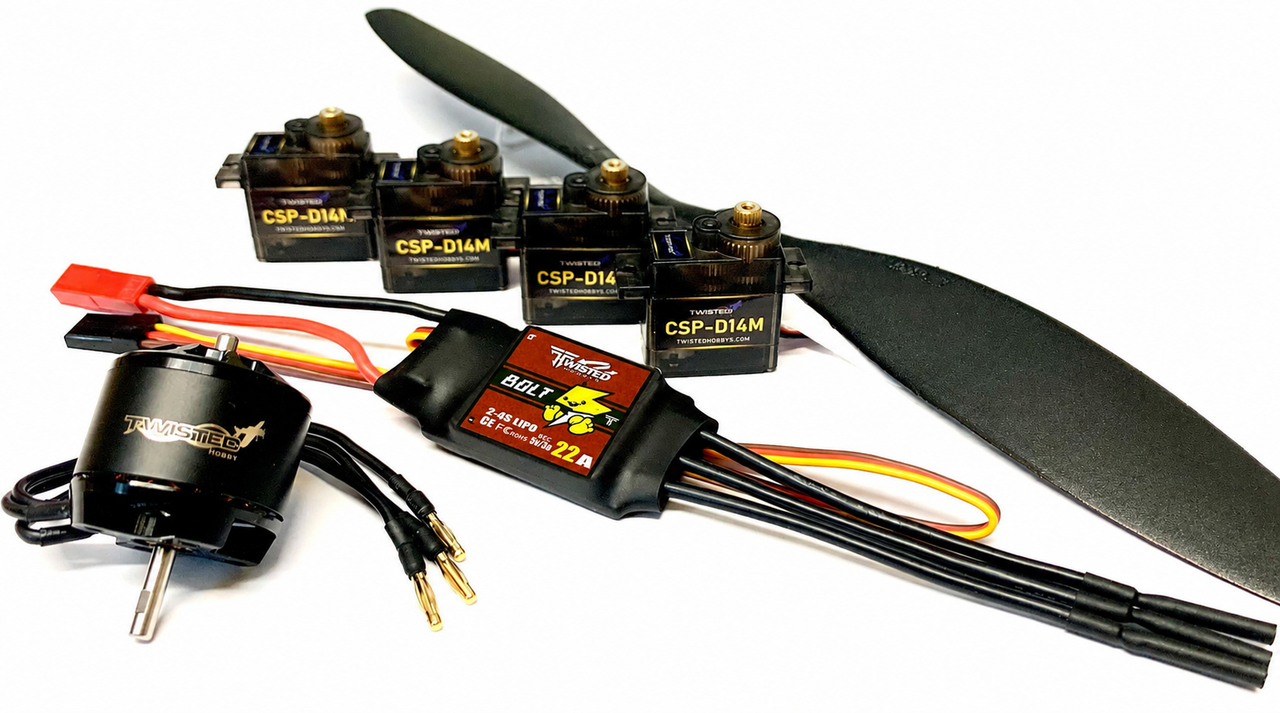

Included Components
- Motor: CSP 2213 1100KV 60 g Crack Series Pro brushless motor
- ESC: BOLT 22A ESC with XT30 connector
- Servos: Four CSP-D14M 14 g digital metal-gear servos
- Propeller: One 10 x 4.7 Slow Fly propeller with adapting rings
- Adapters: Motor-to-ESC connector adapters required for the included components
System Specifications
- Recommended Battery: 3S 850 mAh LiPo with XT30 connector
- Recommended Propeller Range: 10 x 3.8 to 10 x 4.7
- Included Propeller: 10 x 4.7 Slow Fly
- Motor: 1100KV, approximately 60 g with installed hardware
- ESC Rating: 22A continuous and 35A burst
- ESC BEC: 5V / 2A linear BEC
- Servo Count: Four
Important Initial Setup
The transmitter throttle range must be calibrated before the ESC will arm and operate the motor correctly. Always remove the propeller before throttle calibration, checking motor direction, or making ESC adjustments.
Compatible Aircraft
- RC Factory 39-inch Crack Yak-55
- RC Factory 39-inch Flash
- RC Factory 37-inch Revo-series models
- Hacker Model 39-inch Edge 540 V3
- Hacker Model 39-inch Supra Race
- Hacker Model 39-inch Super Zoom
Additional Items Required
- Battery: 3S 850 mAh LiPo battery with XT30 connector
- Radio System: Compatible transmitter and lightweight receiver
- Charger: LiPo-compatible balance charger
Airframe, battery, receiver, transmitter, and charger are not included.
Setup Resources and Accessories
Product Videos
Custom Field
Product Reviews
2 Reviews Hide Reviews Show Reviews
-
Power Combo 39"
Used on a 39" Crack Yak - it's a perfect match! I did end up changing the JST connector to a XT30 to match up with my batteries - longer wires would have been nice.
-
Power Combo for 39"
Overall seems to be nice quality. I was not very pleased with the prop. Seemed a little cheap. Balanced ok, however it did not come with the correct inserts to fit the shaft or the prop correctly.
