Product Description

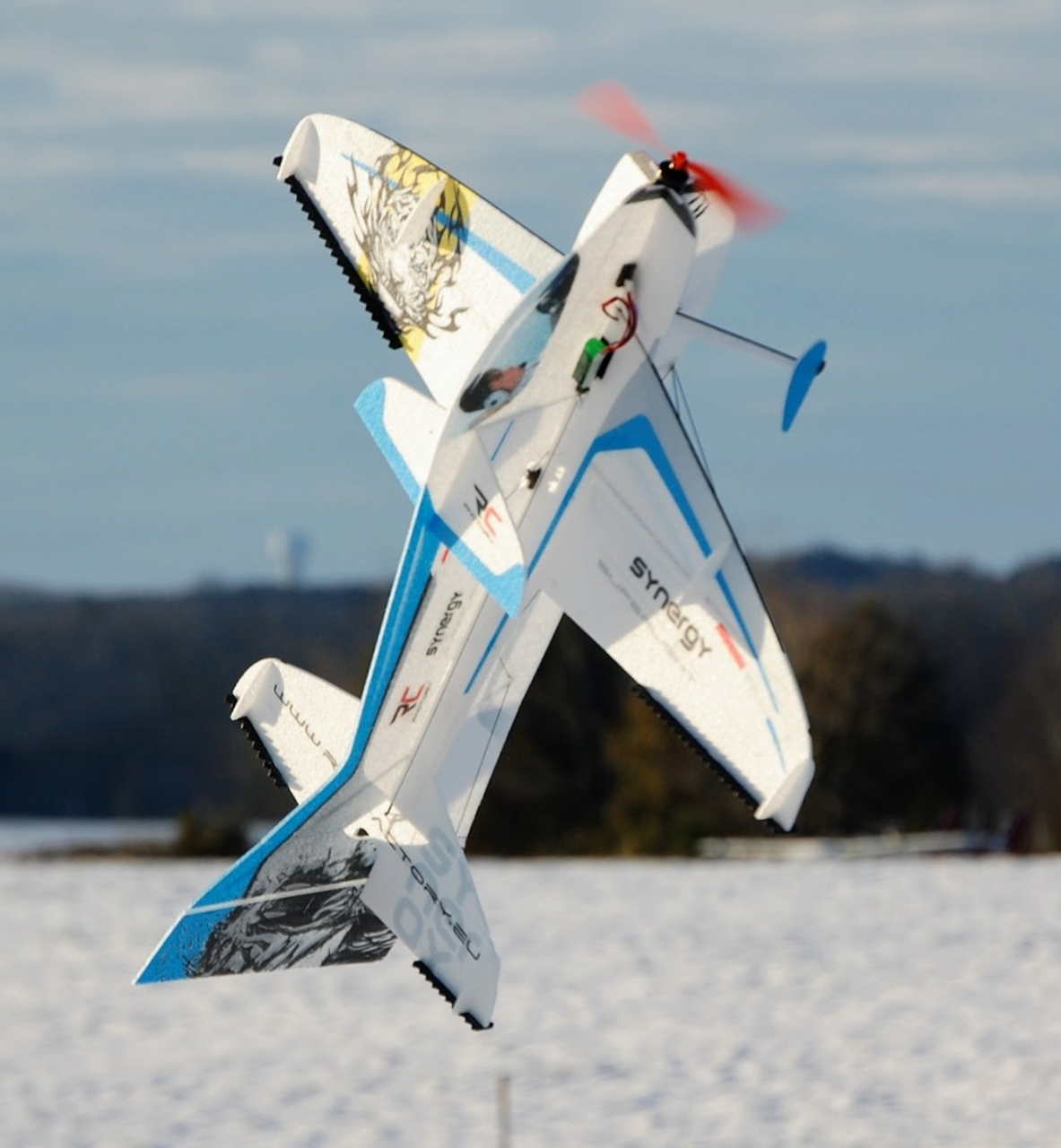

The PC04 is a professionally matched lightweight power system developed for Twisted Hobbys Super Lite and select indoor EPP aircraft. EBundle and save with a proven package that costs less than purchasing the components individually.

PC04 System Overview

2S / 3S Super Lite Power System

System

PC04

Motor

2203 1800KV / 18 g

ESC

Vertex 16A

BEC Output

6V / 3A SBEC

Battery

2S / 3S 350–450 mAh

Included Propeller

8 × 4.3 for 2S

Developed for Super Lite Performance

The lightweight motor, 16A ESC, and mixed 5 g and 9 g servo layout provide the low installed weight and precise control needed for Super Lite and compatible indoor EPP aircraft.

Included in the PC04 Package

1 ×

CSP 2203 1800KV Brushless Motor

Lightweight 18 g outrunner

1 ×

Vertex 16A Brushless ESC

6V / 3A switching BEC

1 ×

CSP-D10M Digital Metal-Gear Servo

9 g servo for aileron control

2 ×

CSP-D6M Digital Metal-Gear Servos

For elevator and rudder control

1 ×

GWS 8 × 4.3 Slow Fly Propeller

Included for the recommended 2S setup

Additional Items Required

Airframe

Compatible Super Lite or lightweight EPP aircraft

Flight Battery

2S or 3S 350 to 450 mAh LiPo

2S 350 | 2S 450 | 3S 450

Radio System

4-channel or greater transmitter and compatible lightweight receiver

Charger

LiPo-compatible balance charger

Airframe, battery, receiver, transmitter, charger, adhesives, and the 3S propeller are not included.

Battery and Propeller Recommendation: For 2S operation, use a 350 to 450 mAh LiPo with the included 8 × 4.3 propeller. For 3S operation, use a 350 to 450 mAh LiPo with a compatible 6 to 7-inch propeller. The included 8 × 4.3 propeller is intended for 2S operation and should not be used on 3S.

Important Initial Setup: The transmitter’s throttle range must be calibrated before the ESC will arm and operate correctly.

Setup Resources

ESC Manual Throttle Calibration Video

Product Videos

Videos Hide Videos Show Videos

Custom Field

Product Reviews

Write a Review

3 Reviews Hide Reviews Show Reviews

5
Power Combo

Posted by Rich on Feb 18th 2021

I used this on my Superlite Edge. It's the perfect amount of power from a lightweight set up. The new CSP servos are powerful, quiet and very precise with excellent centering. It's a perfect combination of equipment for the Superlite planes.
5
Rock Solid

Posted by william Holmes on Oct 31st 2016

90 percent of all my twisted models have the power combo suggested by Twisted Hobbies and there is no doubt that there equipment is ROCK SOLID.I have a crack yak for 3 years and all equipment works as good today as it did 3 years ago!!!
5
Cant go wrong

Posted by William H on Sep 26th 2016

I really enjoy a company who takes the time to put together a model and combo kit that actually is of awsome quality .I perfer to purchase the plane and combo so that the model will be set up right ,as the parts fit proper from the start cant go wrong
