Power Combo 30-32" Standard Mono

PC02 Matched Power System: 30–32-Inch Standard Models

The PC02 is a complete, spec-matched electronics package developed for select 30-inch and 32-inch Twisted Hobbys EPP aircraft. Each component has been selected to work together, providing dependable power, responsive control, and balanced performance without the guesswork of choosing individual electronics.

The updated system includes the lightweight Vertex VS28-05B 1550KV brushless outrunner and Vertex 16A ESC with an upgraded 6V / 3A switching BEC. The system can be flown on either 2S or 3S power using the recommended battery and propeller combinations listed below.

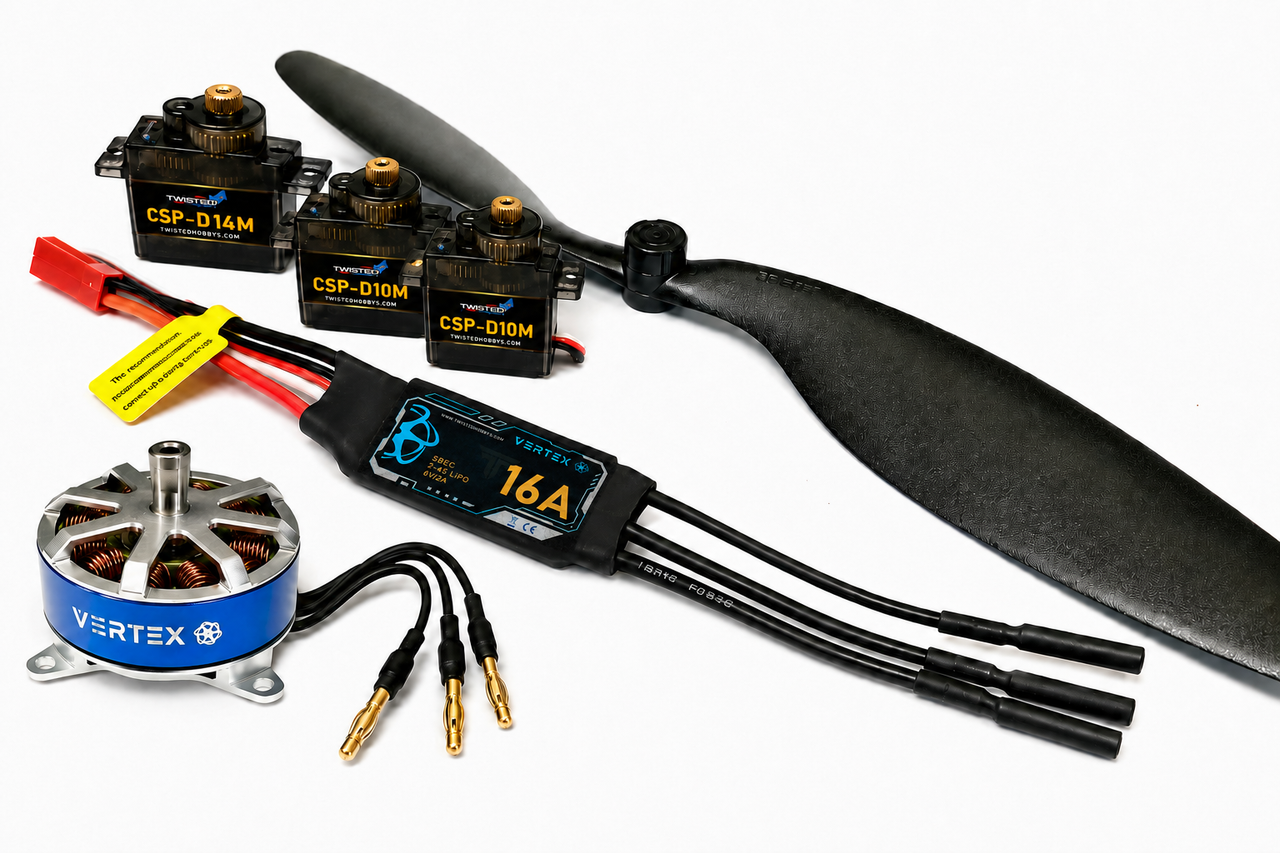

PC02 Power System Includes

• Vertex VS28-05B 1550KV brushless outrunner motor – approximately 24 g
• Vertex 16A ESC with 6V / 3A SBEC
• One CSP-D14M 14 g digital metal-gear servo
• Two CSP-D10M 9 g digital metal-gear servos
• One 9 x 4.7 Slow Fly propeller for the recommended 2S setup

Recommended Battery and Propeller Setup

• 2S Setup: 450 to 600 mAh LiPo with the included 9 x 4.7 Slow Fly propeller
• 3S Setup: 450 to 600 mAh LiPo with a compatible 8-inch Slow Fly propeller

Important: The included 9 x 4.7 propeller is intended for 2S operation. Do not use the included 9-inch propeller on 3S. A compatible 8-inch propeller is required for the recommended 3S setup.

Compatible Aircraft

• 32-inch Crack Yak-55 and Yak-55
• 32-inch Extra Slick
• 32-inch MXS-C
• 32-inch Edge 540
• 32-inch Xtra Vector
• 32-inch Sbach
• 30-inch Crack Pitts M-12

Additional Items Required

• 4-channel or greater transmitter
• Compatible lightweight receiver rated for 6V operation
• 2S or 3S 450 to 600 mAh LiPo battery
• LiPo-compatible balance charger
• Compatible 8-inch propeller when operating on 3S

Standard 3D Configuration

The included Vertex 16A ESC provides standard forward-only motor control and a regulated 6V / 3A switching BEC for the receiver and servos. Although the Vertex VS28-05B motor can support reversible 4D operation, this PC02 package is configured for traditional 3D, sport, and aerobatic flight. Reversible 4D operation requires the Vertex 17A 3D/4D ESC and a compatible 4D propeller.
