Vertex VS28 3D/4D Motor Reversible

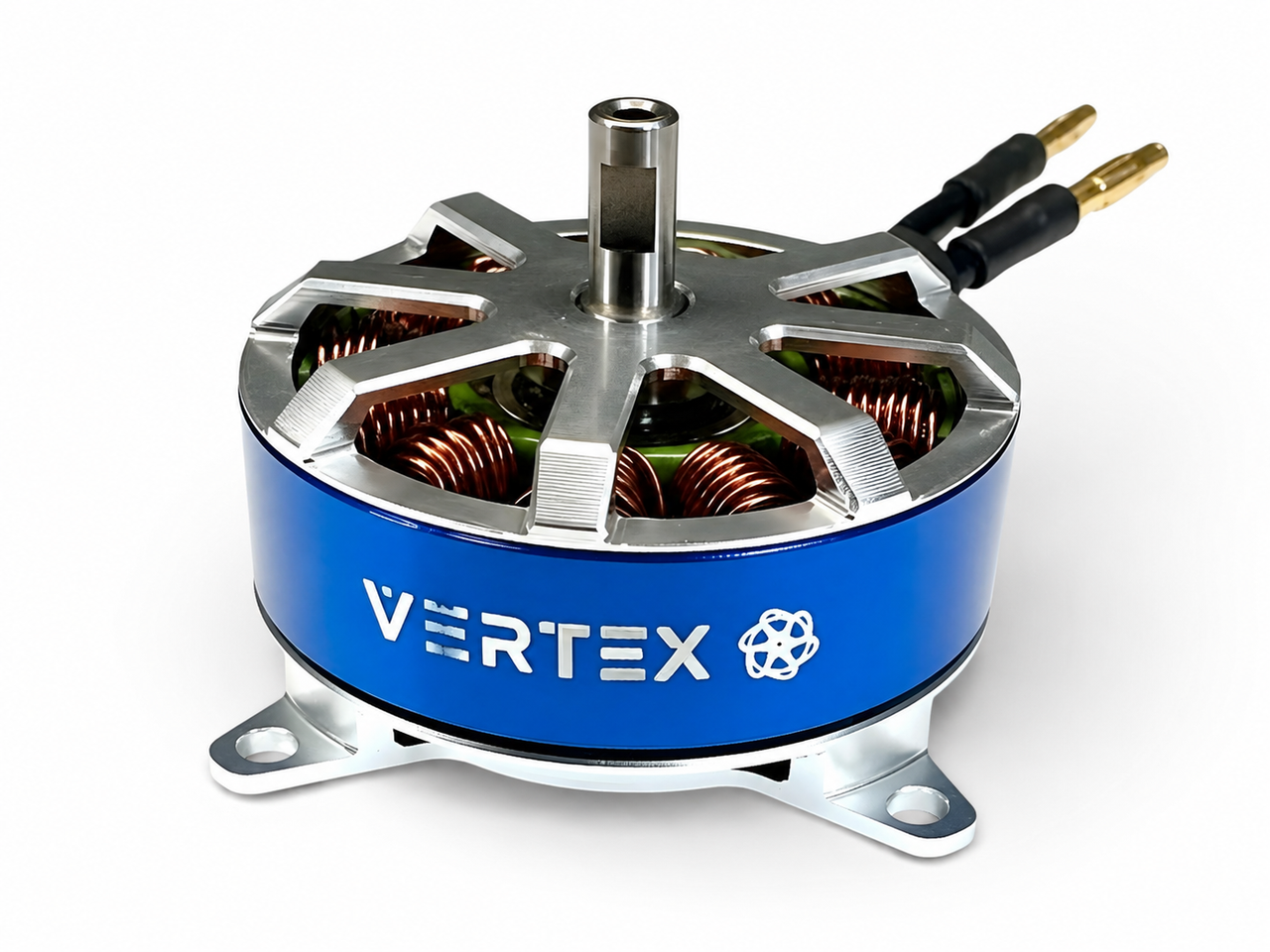

Vertex VS28 Series 3D/4D Reversible Outrunner Motor

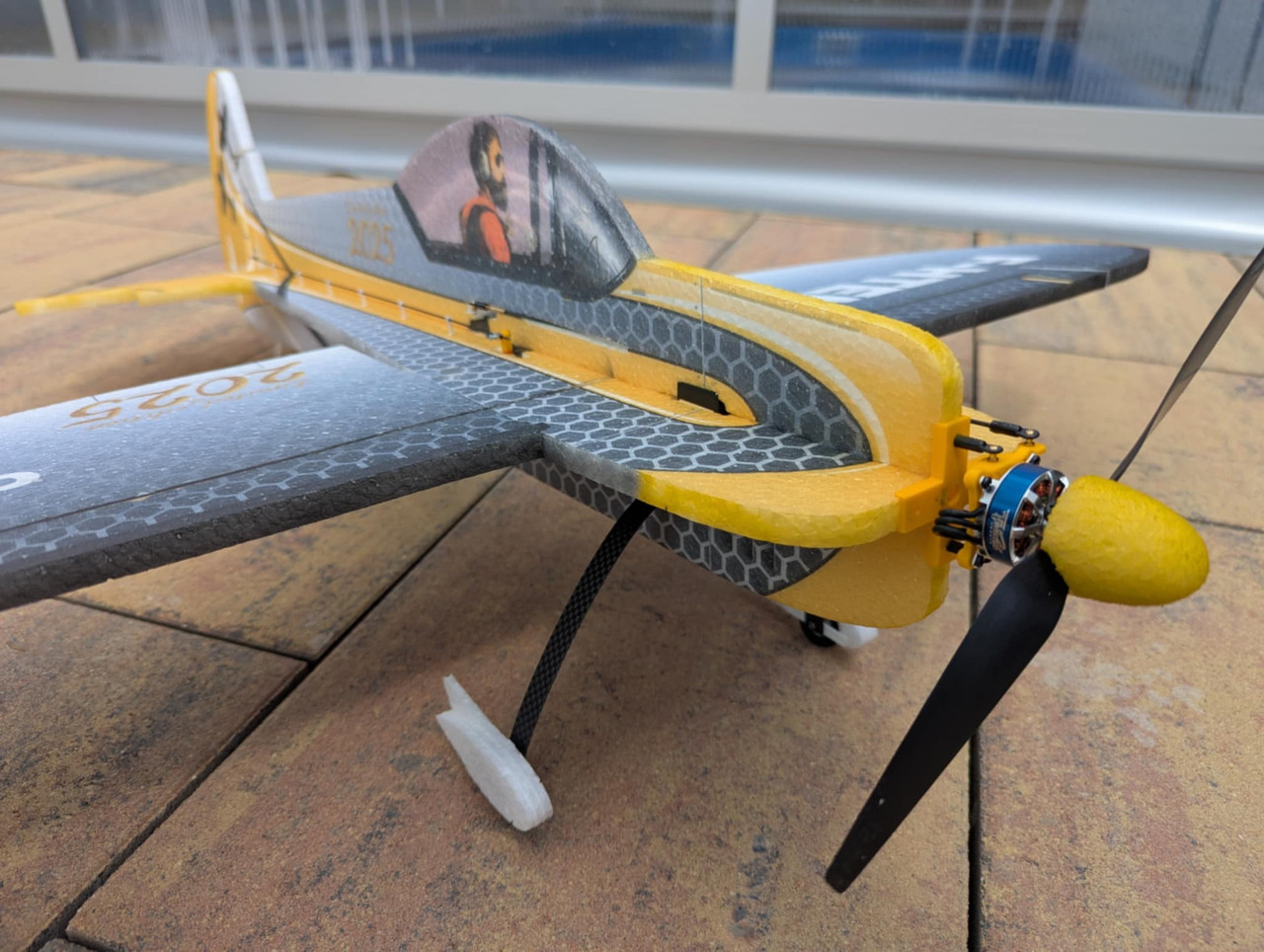

The Vertex VS28 Series is a lightweight, high-performance brushless outrunner designed for traditional 3D flying and reversible 4D operation. Available in 1550KV and 1950KV versions, the VS28 provides fast throttle response, smooth power delivery, and strong performance for approximately 6 to 20 oz foam aircraft.

Each motor includes hardware for both standard 3D propellers and compatible 4D reversible propellers. Pre-soldered 2 mm bullet connectors provide a direct connection to compatible Vertex speed controllers.

Key Features

• Designed for traditional 3D and reversible 4D flight
• Available in 1550KV and 1950KV versions
• Compatible with 2S and 3S LiPo power systems
• Lightweight design for approximately 6 to 20 oz foam aircraft
• Includes standard 3D prop-saver hardware
• Includes a 5 mm hub assembly for compatible APC 4D propellers
• Pre-soldered 2 mm bullet connectors
• Tested for strong acceleration and rapid direction changes

Motor Options

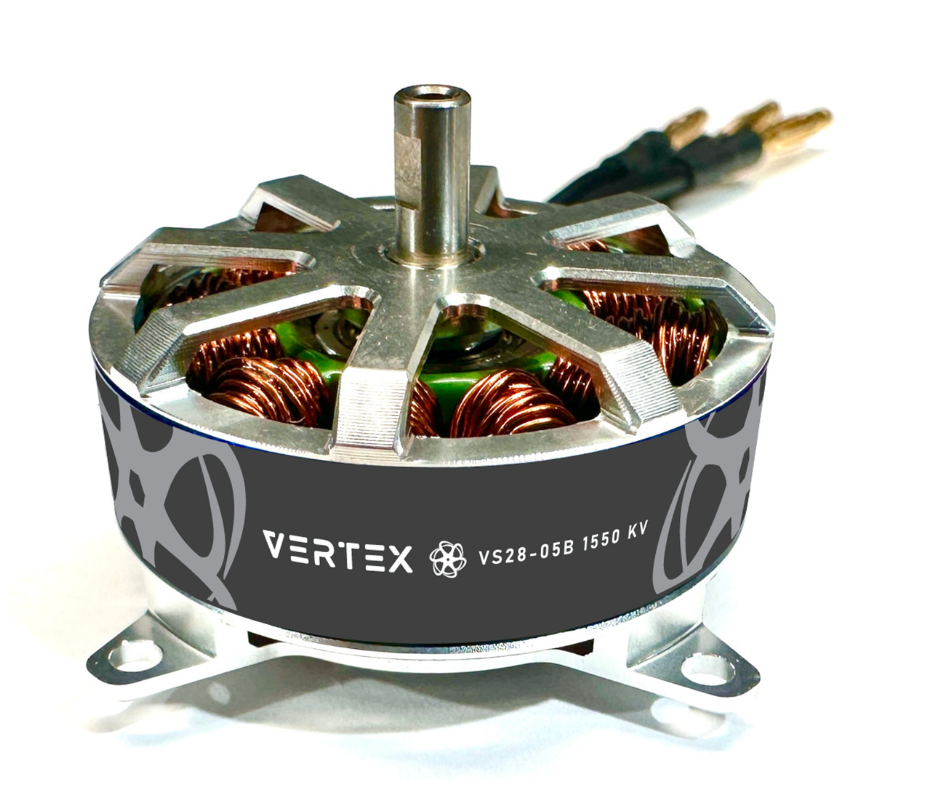

• VS28-05B: 1550KV, approximately 24 g
• VS28-05C: 1950KV, approximately 23 g

Specifications

• Available KV Ratings: 1550KV and 1950KV
• Battery Compatibility: 2S to 3S LiPo
• Continuous Current: 10A
• Burst Current: 25A
• Tested Power: Up to approximately 60W on 2S and more than 180W on suitable 3S setups, depending on propeller and battery
• 1950KV Weight: Approximately 23 g
• 1550KV Weight: Approximately 24 g
• Motor Connectors: Pre-soldered 2 mm bullet connectors
• Standard Propeller Hardware: 5.5 mm and 7 mm prop-saver hardware
• 4D Propeller Hub: 5 mm hub assembly for compatible APC 4D propellers

Recommended Setups

• Standard 3D on 3S: 8-inch Slow Fly propeller
• Standard 3D on 2S: 9-inch Slow Fly propeller
• Reversible 4D: Begin with an appropriate 8-inch 4D propeller on 2S or 3S
• Higher-KV Motor: A 9-inch 4D propeller is not recommended with the 1950KV motor

Propeller size must be matched to the selected motor KV, battery voltage, aircraft weight, and intended flight style. Always verify motor and ESC temperature and confirm that current remains within the rated operating limits.

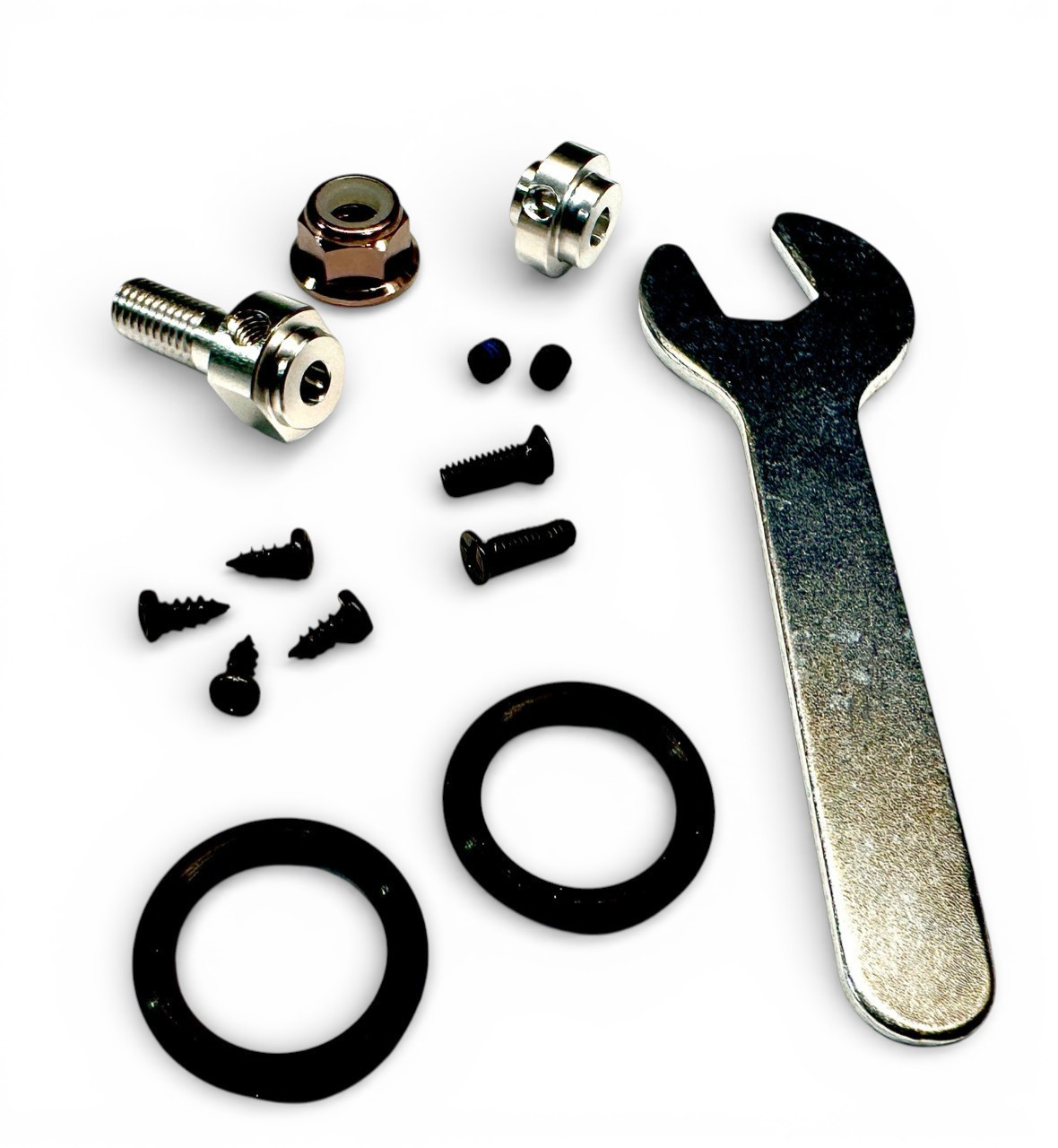

Included

• Vertex VS28 brushless outrunner motor
• 5.5 mm and 7 mm standard prop-saver hardware
• 5 mm 4D propeller hub assembly
• Propeller installation wrench
• Motor mounting hardware

Compatible Products and Replacement Parts

• Vertex 17A 3D/4D Reversible ESC
• APC 8 x 4.2 4D Slow Fly Propeller, 5.5 mm Hub
• APC 8 x 3.7 4D SFR Propeller, 5 mm Hub
• Vertex VS28 Replacement Hardware Bag
• Standard-Duty Prop-Saver Bands
• Heavy-Duty Prop-Saver Bands
