Product Description

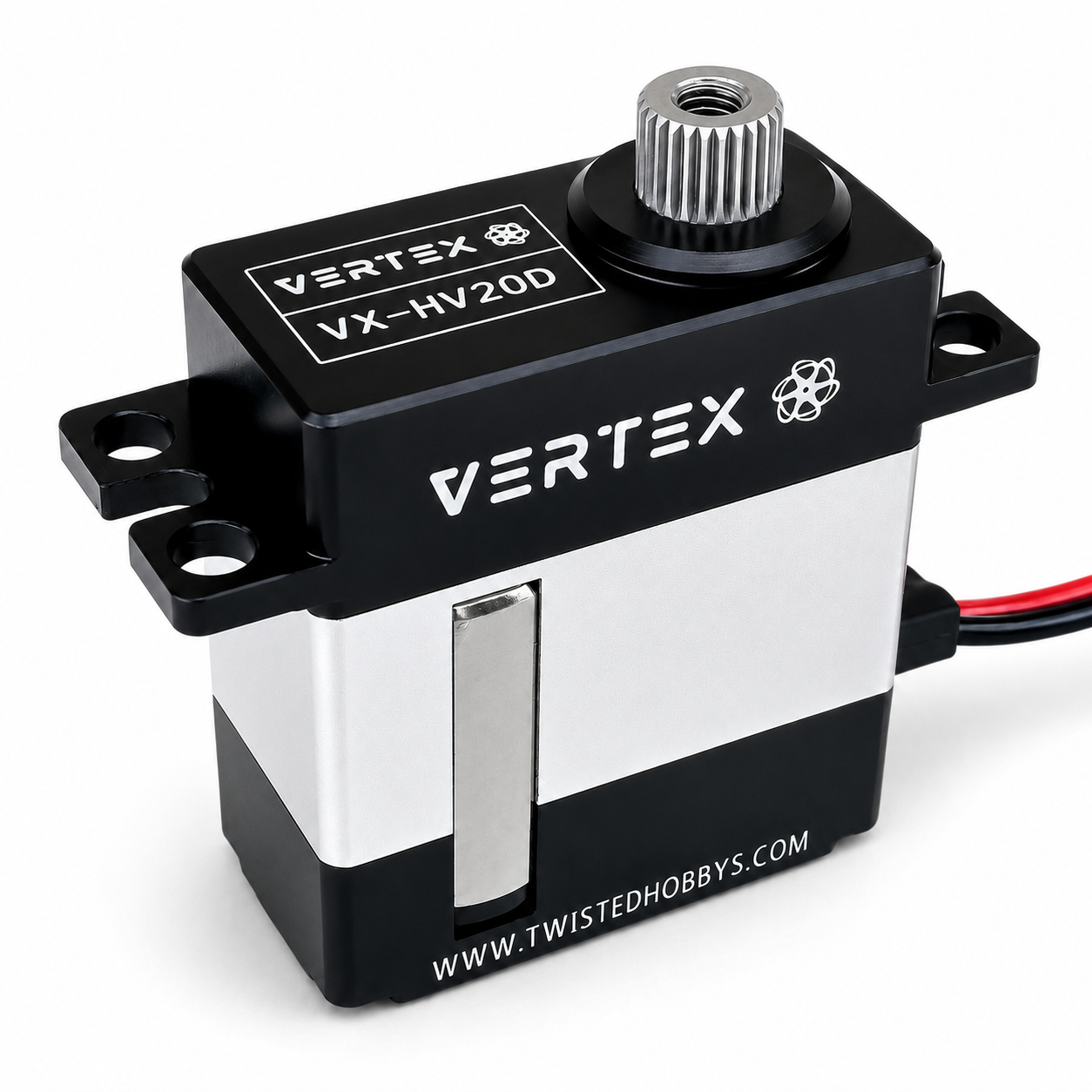

Vertex VX-HV20D 20 g High-Voltage Metal-Case Servo
The Vertex VX-HV20D is a compact high-voltage digital servo developed for larger EPP and lightweight balsa aircraft requiring strong torque, fast response, and precise control.
Its CNC-machined aluminum case, stainless-steel gears, coreless motor, and dual ball bearings provide smooth operation and dependable performance. An aluminum servo horn is included and works especially well with the optional MP Jet Ball Link Kit.

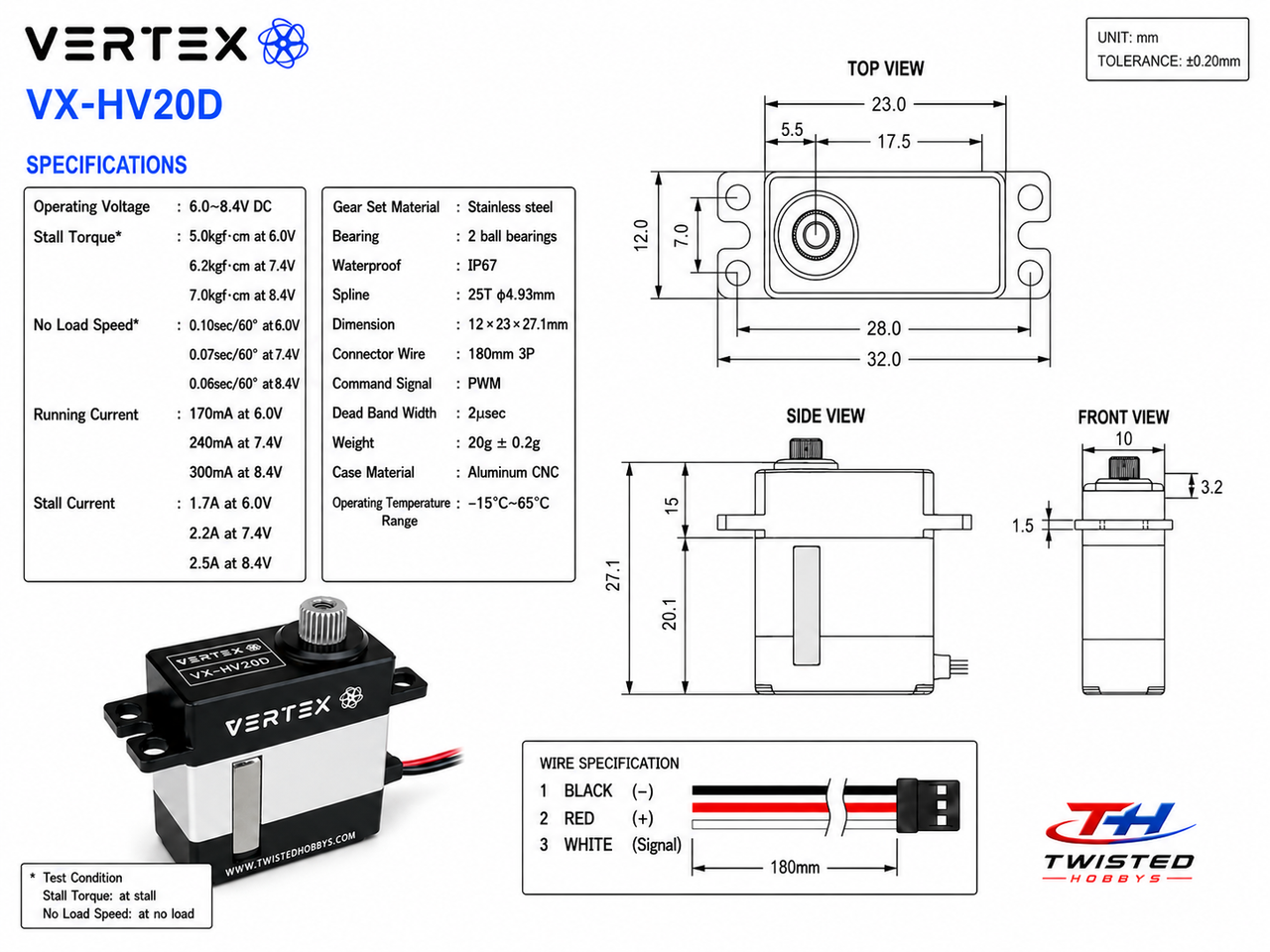

Features and Specifications
- Operating Voltage: 6.0 to 8.4V
- Speed: 0.10 sec/60° at 6.0V, 0.07 sec/60° at 7.4V, and 0.06 sec/60° at 8.4V
- Peak Stall Torque: 5.0 kgf·cm at 6.0V, 6.2 kgf·cm at 7.4V, and 7.0 kgf·cm at 8.4V
- Servo Weight: Approximately 20 g without accessories and approximately 22 g with the extended lead
- Dimensions: 12 x 23 x 27.1 mm
- Case: CNC-machined aluminum
- Gears: Stainless steel
- Motor: Coreless
- Bearings: Dual ball bearings
- Output Spline: 25T
- Control: Digital PWM
- Wire Length: Approximately 36 cm / 14.2 inches
- Recommended Applications: Many 39 to 48-inch EPP aircraft and lightweight balsa models
Voltage and Power Requirements
The VX-HV20D may be operated at standard 6V or at higher voltages up to 8.4V. Speed and torque increase as operating voltage rises.
Confirm that the ESC BEC, receiver, and all connected equipment support the selected voltage. Stall current is approximately 1.7A at 6.0V, 2.2A at 7.4V, and 2.5A at 8.4V per servo.
Included
- Vertex VX-HV20D high-voltage digital servo

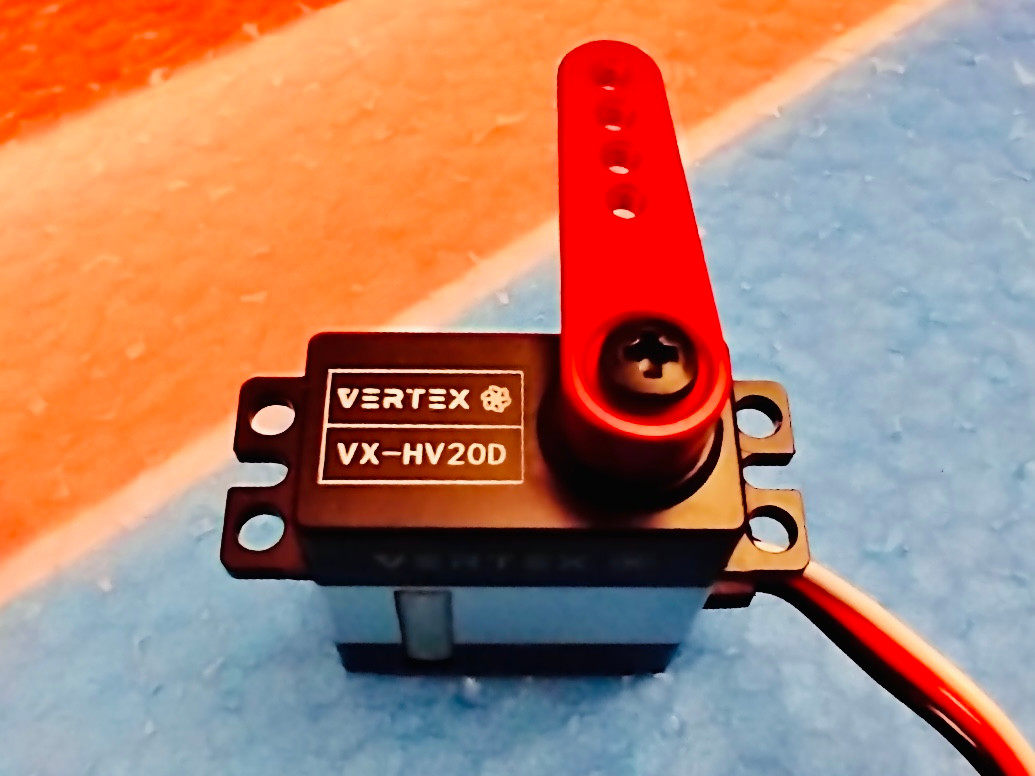

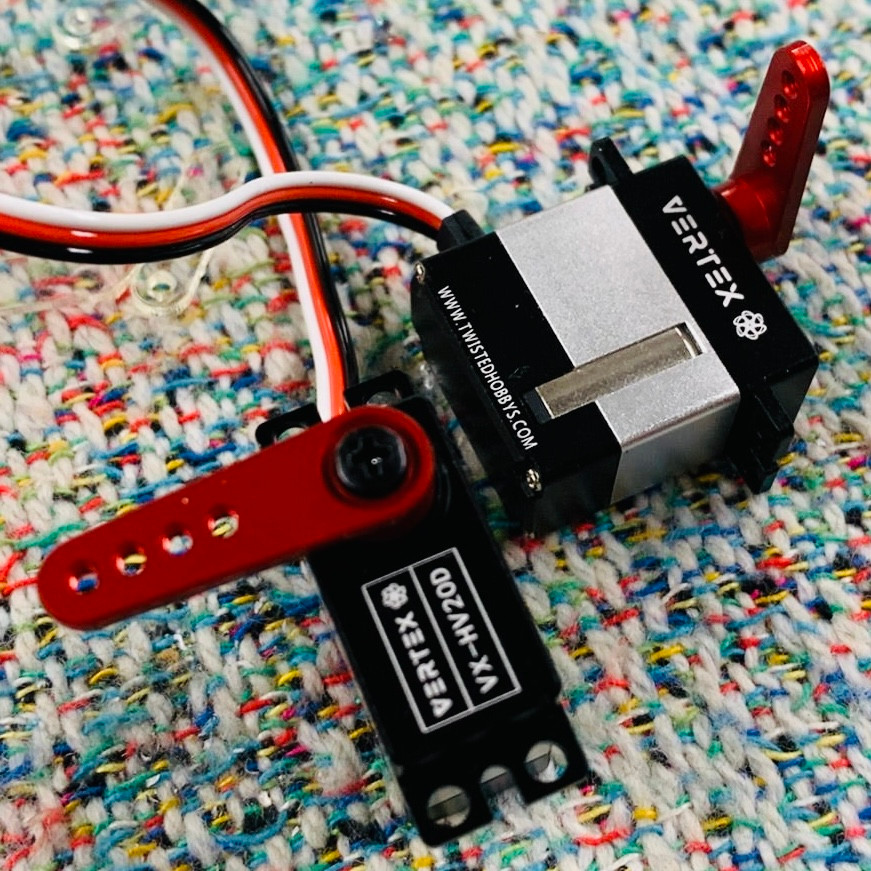

- Aluminum servo horn
Compatible Linkage Upgrade
Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
Top Tier
The Vertex VX-HV20D is by far one of the strongest and smoothest servos on the market. The metal case combined with the performance you get with high voltage makes for a "locked in" flight performance only rivaled by the likes of balsa aircraft. They are definitely not the cheapest option but for their performance you wont be left disappointed, these really are the best of the best for 39" to 48" foamies or balsa airplanes!
