Product Description

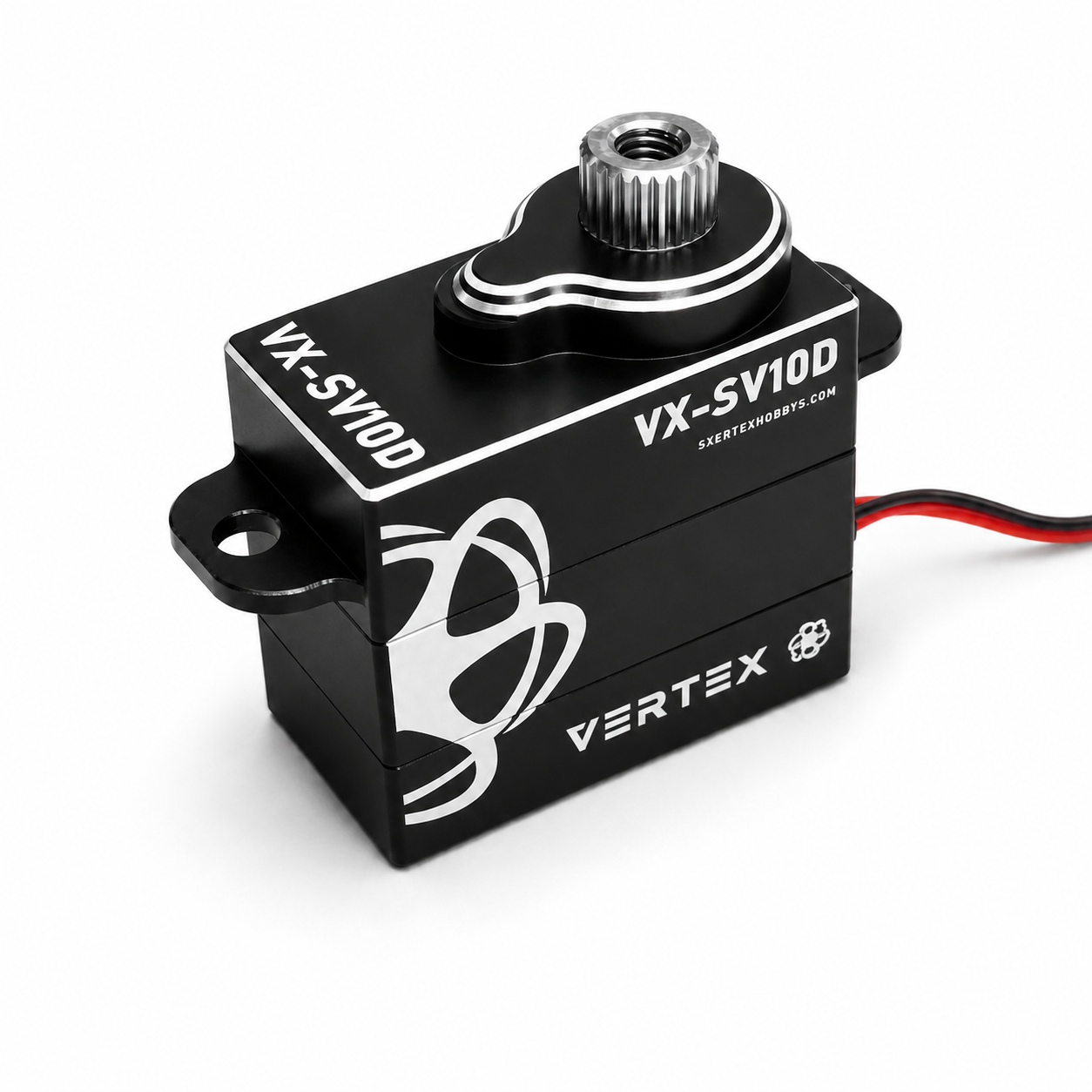

Vertex VX-SV10D 10 g High-Speed Digital Metal-Case and Metal-Gear Servo
The Vertex VX-SV10D is a compact, high-speed digital servo developed for lightweight EPP and aerobatic aircraft requiring quick response, smooth movement, and precise control.

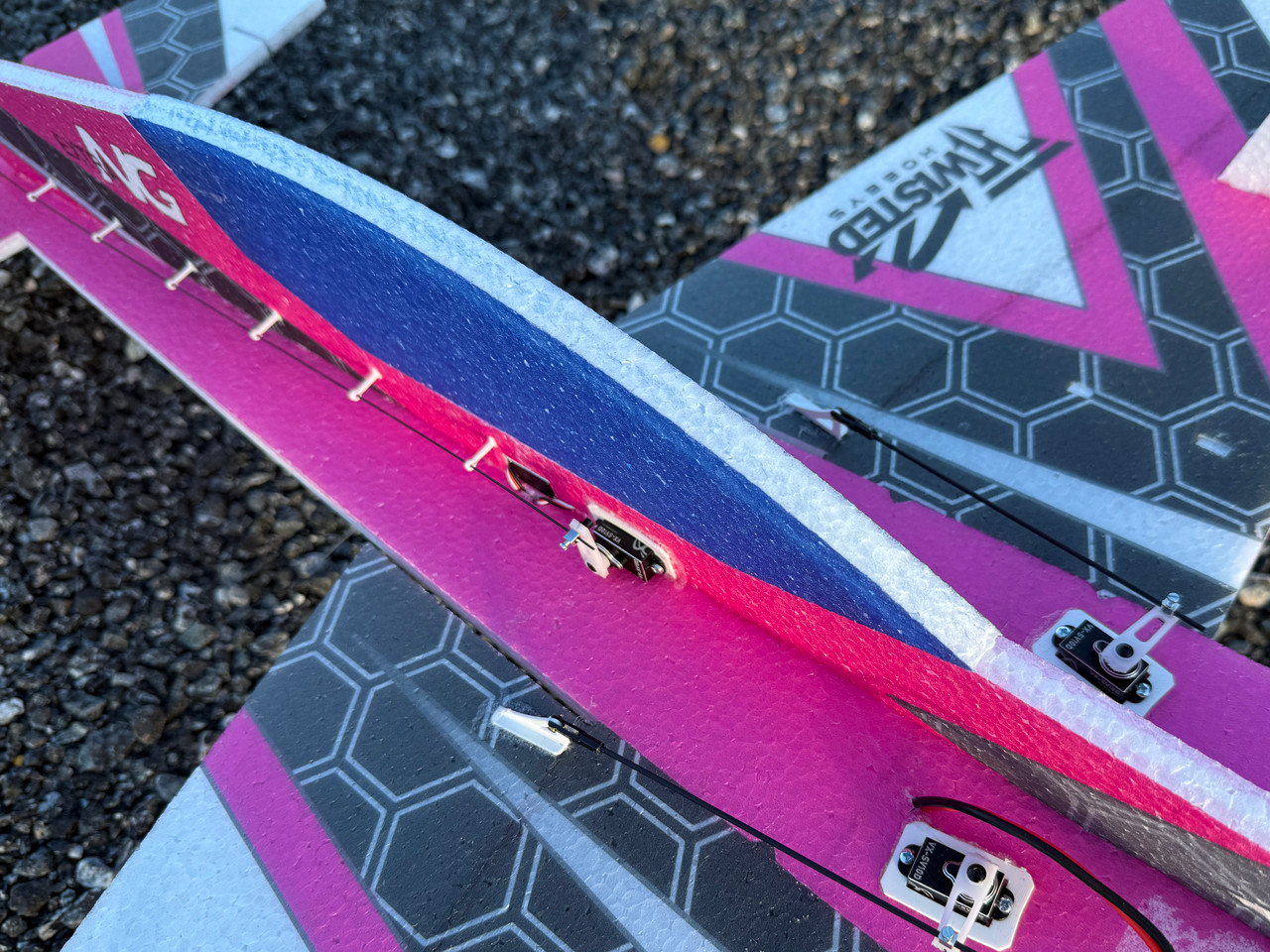

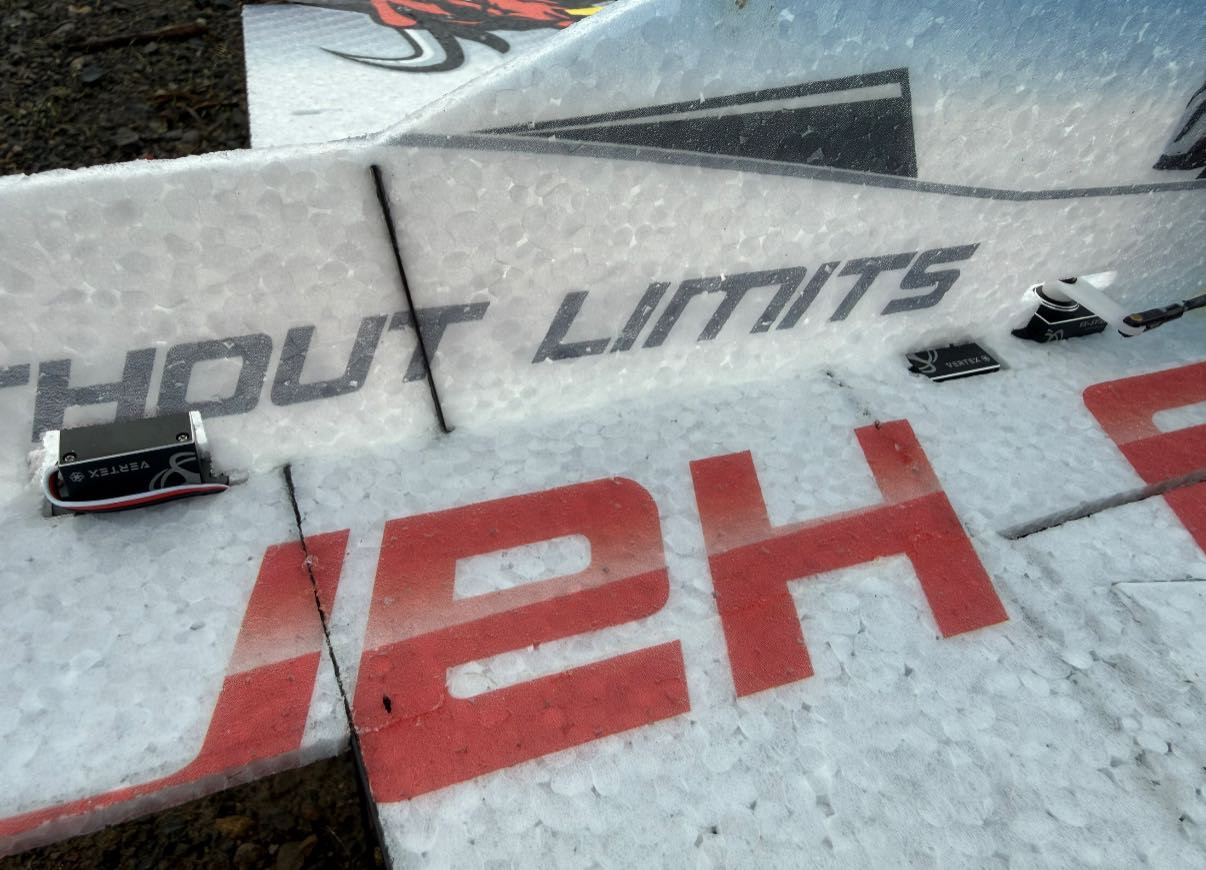

Its CNC-machined aluminum case, metal gear train, and coreless motor provide a rigid and responsive package at approximately 10 g. The fast transit speed makes it especially well suited for tail-control applications and aircraft requiring rapid control-surface response.
Features and Specifications
- Operating Voltage: 4.8 to 6.0V
- Torque: 1.2 kgf·cm / 16.7 oz-in at 4.8V and 1.4 kgf·cm / 19.4 oz-in at 6.0V
- No-Load Speed: 0.075 sec/60° at 4.8V and 0.065 sec/60° at 6.0V
- Stall Current: Approximately 900 mA
- Weight: 10.0 g ± 0.5 g, including wire
- Dimensions: 11.3 x 20 x 21 mm
- Case: CNC-machined aluminum
- Gear Set: Metal gears
- Motor: Coreless
- Mechanical Limit Angle: 360°
- Wire Length: Approximately 300 mm / 11.8 inches
Power and Installation Notice
Confirm that the ESC BEC or receiver power supply provides sufficient current for the total number of servos installed. Multiple VX-SV10D servos operating under load may require a higher-current BEC.
Check all control surfaces and linkages for binding before flight. Excessive load, stalled operation, or restricted movement can increase servo temperature and current draw.
Included
- Vertex VX-SV10D digital servo
- Aluminum servo horn
- Plastic servo horns
