Product Description
PC22 Power Combo: 34-Inch Ares Indoor Jet
The PC22 Power Combo includes the matched motor, ESC, servos, and propeller recommended for the 34-inch Ares Indoor Jet.
This lightweight electronics package provides smooth throttle response and precise control while simplifying component selection and installation.
Recommended Flight Setup
Battery: 2S 350 to 600 mAh LiPo
Propeller: Included GF 5128 5-inch three-blade propeller

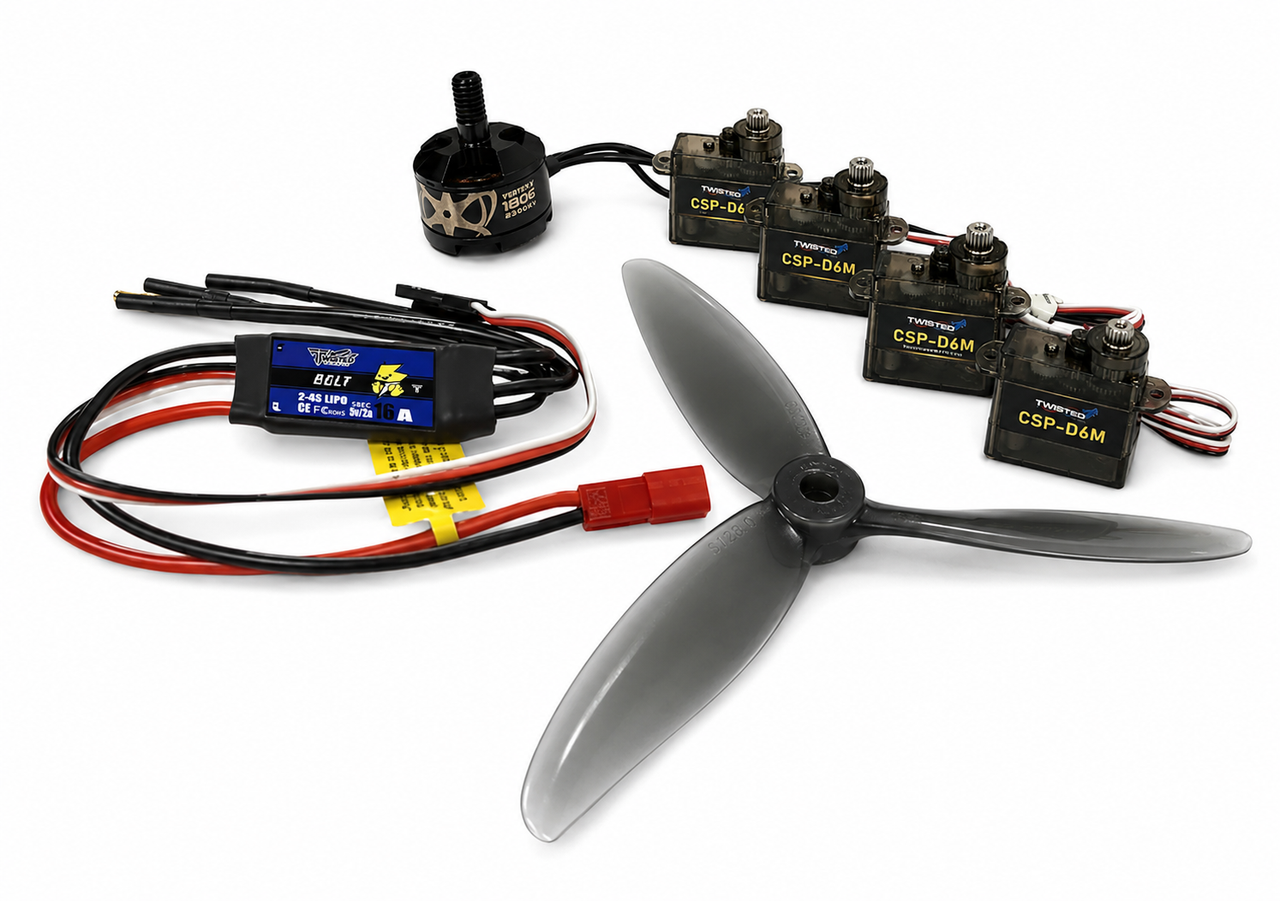

Included Components
- Motor: Vertex 1806 2300KV brushless motor, approximately 19 to 20 g with pre-soldered 2 mm connectors
- ESC: Vertex 16A ESC with 6V / 3A switching BEC
- Servos: Four CSP-D6M digital metal-gear servos
- Propeller: One GF 5128 5-inch three-blade propeller
Important Initial Setup
The transmitter throttle range must be calibrated before the ESC will arm and operate the motor correctly. Always remove the propeller before throttle calibration or checking motor direction.
Additional Items Required
- 2S 350 to 600 mAh LiPo battery
- Compatible transmitter and lightweight receiver
- LiPo-compatible balance charger
Battery, receiver, transmitter, charger, and aircraft kit are not included.
