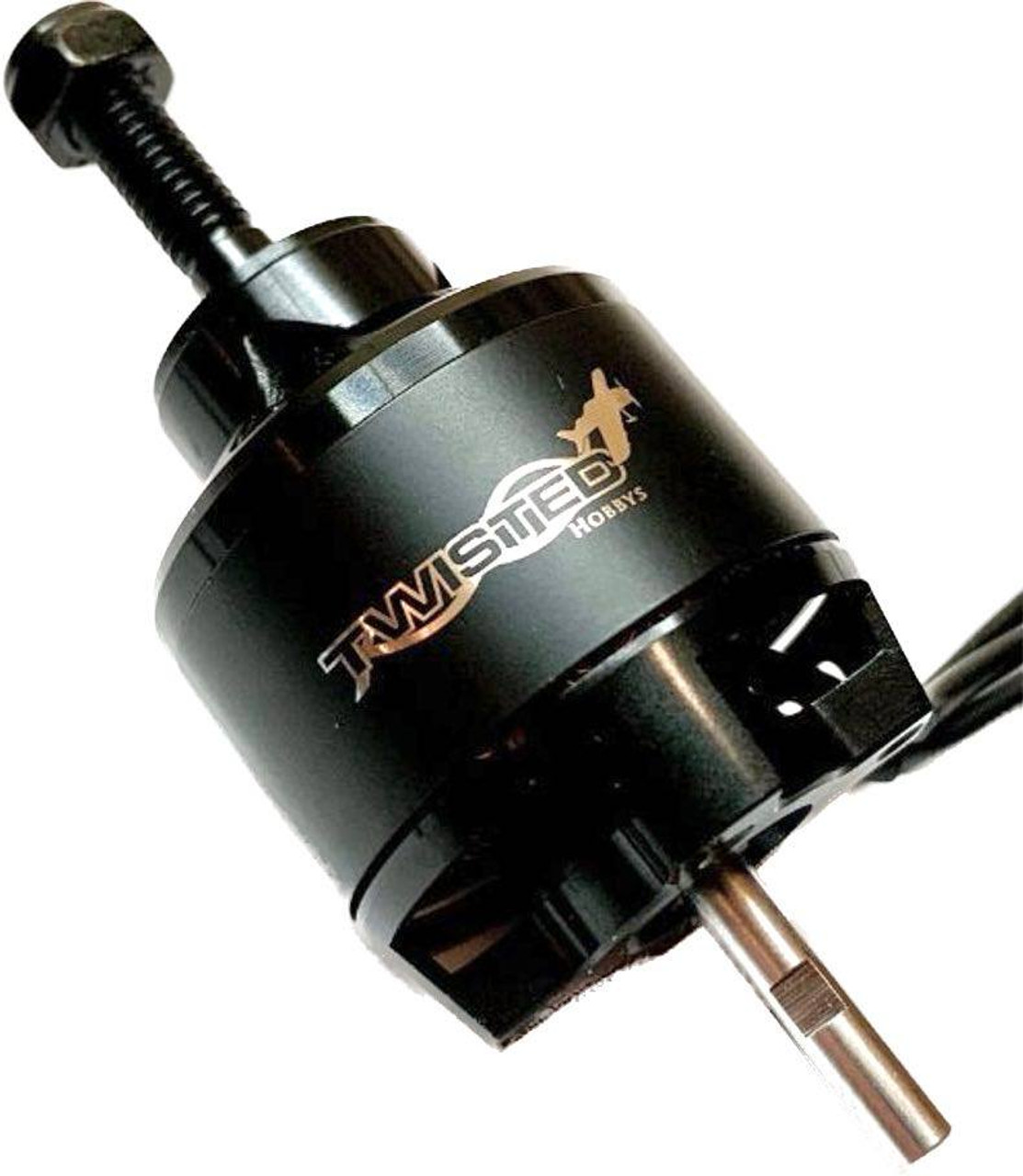

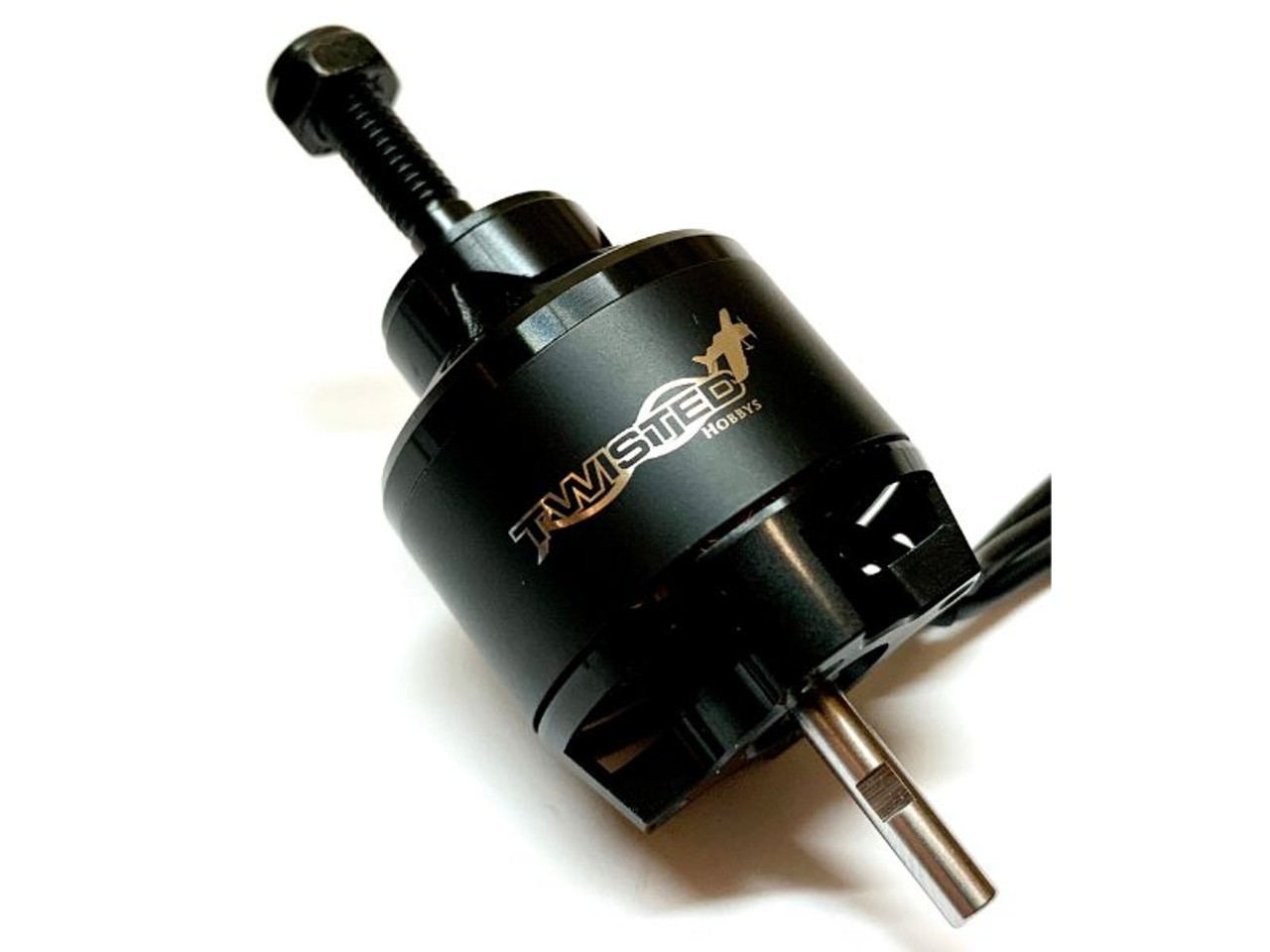

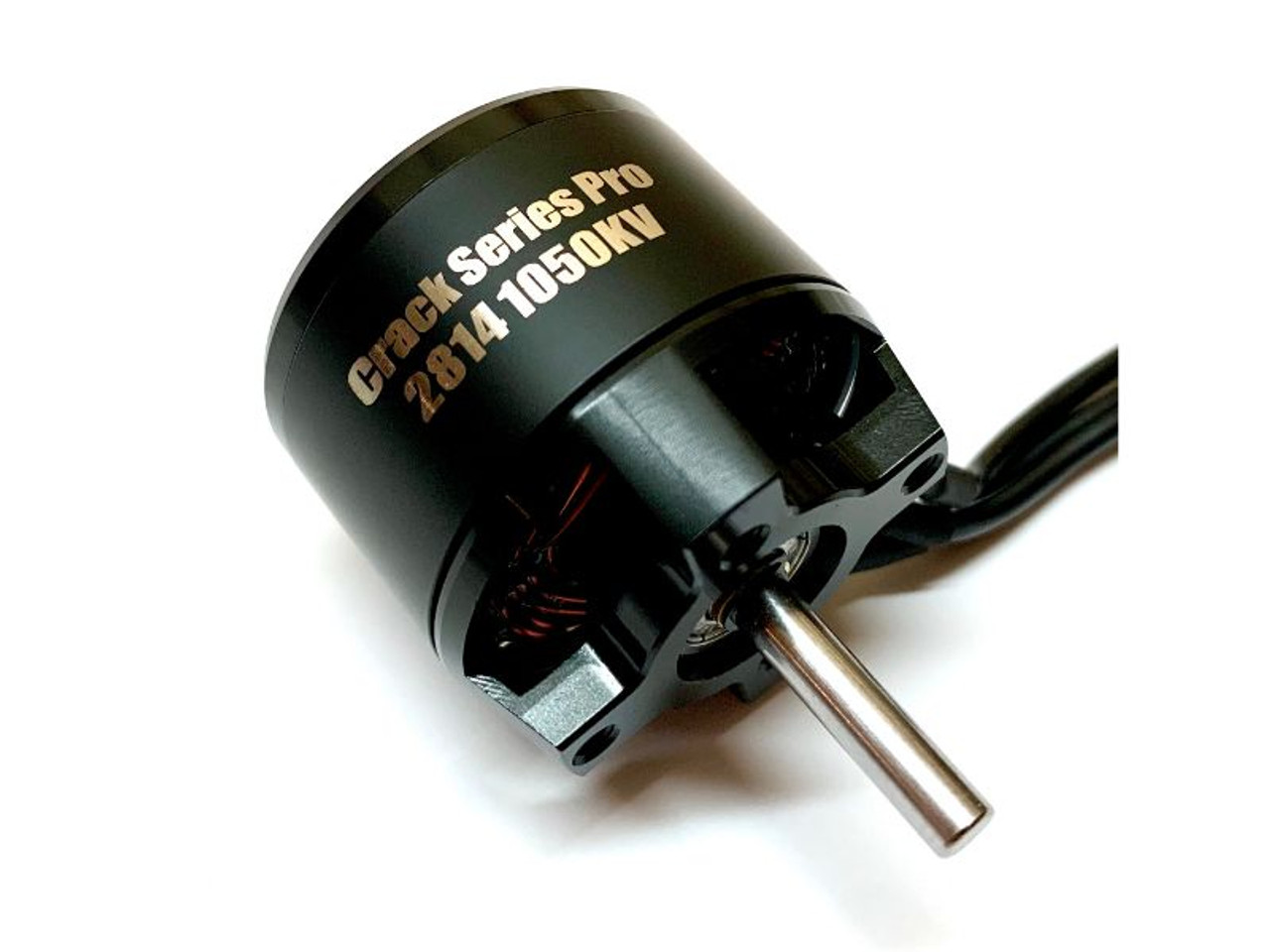

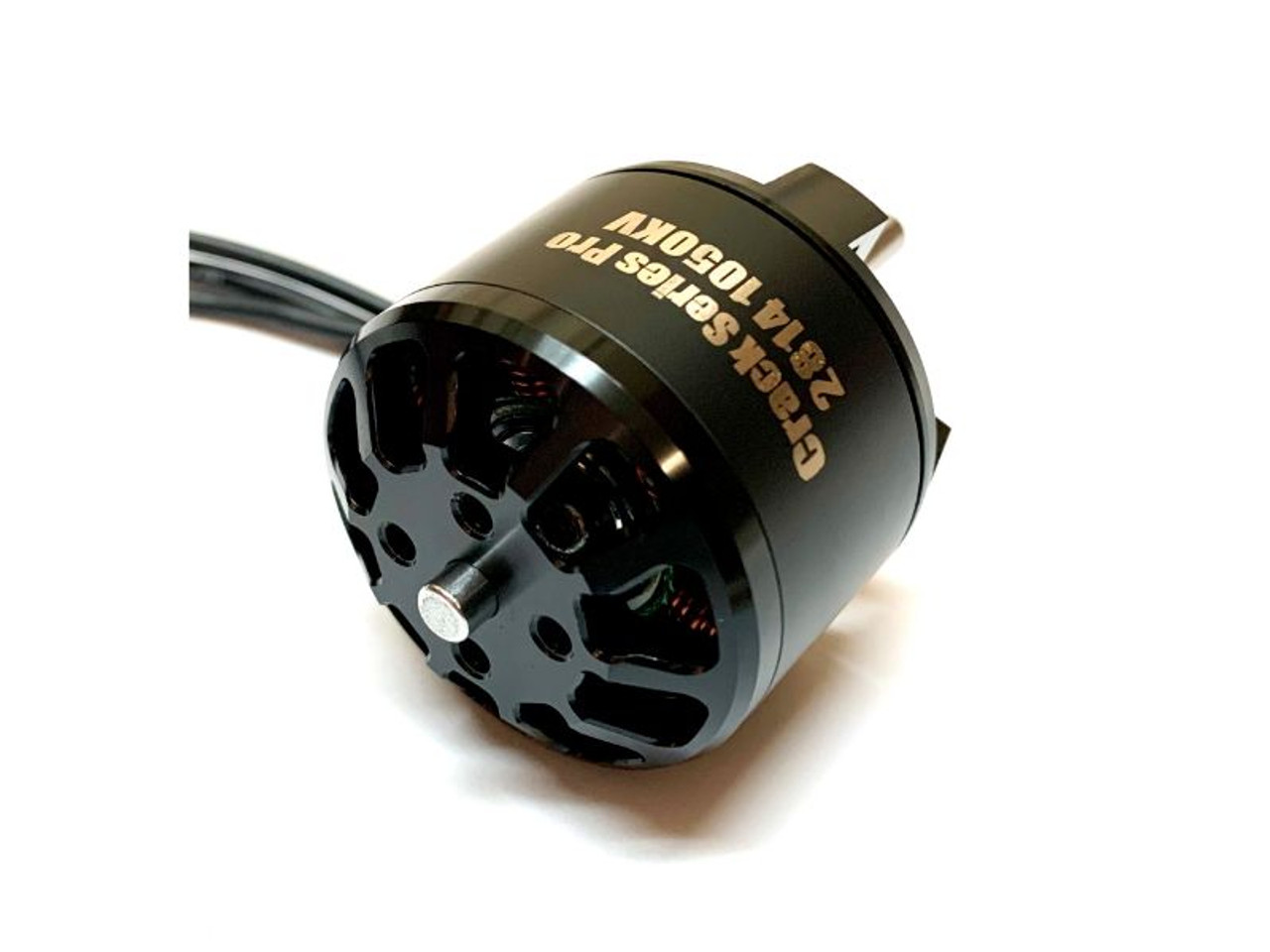

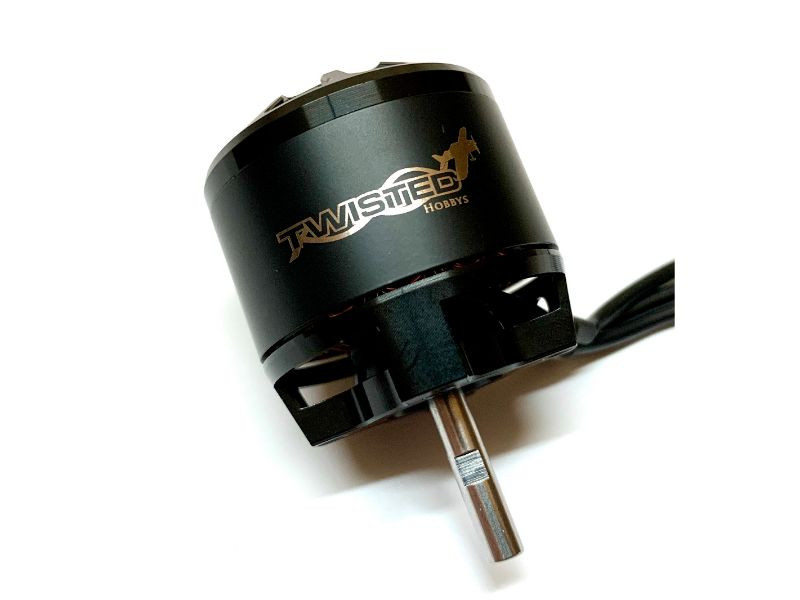

CSP 2814 1050KV 100g Brushless Outrunner Motor

Crack Series Pro 2814 1050KV 100 g Brushless Motor

The CSP 2814 1050KV outrunner is designed for larger EPP aircraft requiring strong thrust, fast acceleration, and dependable vertical performance without unnecessary motor weight.

Built to Twisted Hobbys specifications, it is a proven match for many 40 to 48-inch aircraft and includes both front and rear propeller-mounting options for flexible installation.

Features and Specifications

• Motor Type: Brushless outrunner
• KV Rating: 1050KV
• Recommended Aircraft: Many 40 to 48-inch models weighing approximately 22 to 32 oz
• Weight: Approximately 90 to 100 g depending on installed mounting hardware
• Case Diameter: 35 mm
• Case Length: 34.1 mm
• Motor Shaft: 4 mm
• Propeller Hub Shaft: 6 mm
• Mounting Pattern: 30.5 x 30.5 mm
• Current: Up to 40A with approximately 65A burst capability
• Power: Approximately 450W rated and up to 650W, depending on setup
• Motor Connectors: Pre-soldered 3.5 mm bullet connectors

Always confirm current draw and motor, ESC, and battery temperatures when testing a new propeller or battery combination. Actual power and thrust will vary with the complete setup.

Included

• CSP 2814 1050KV brushless motor
• Front and rear propeller-mounting hardware
• Pre-soldered 3.5 mm bullet connectors
• Motor-mounting hardware

Recommended Matching Components

• BOLT 45A Brushless ESC
• APC 12 x 4.5 MR Propeller
• TMW 42 to 43-Inch Aluminum Motor Mount
• TMW 41 to 48-Inch Universal Aluminum Motor Mount
