Product Description

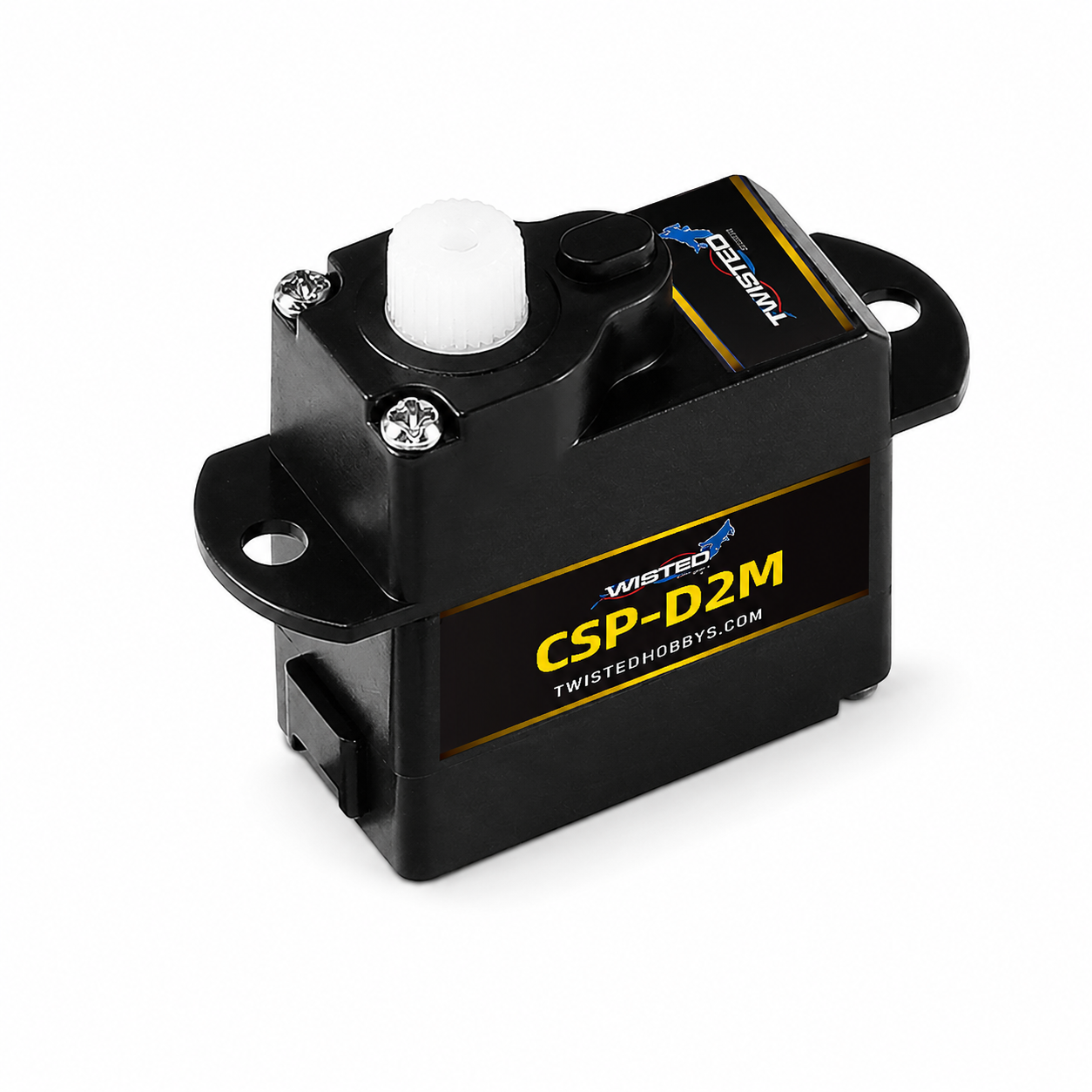

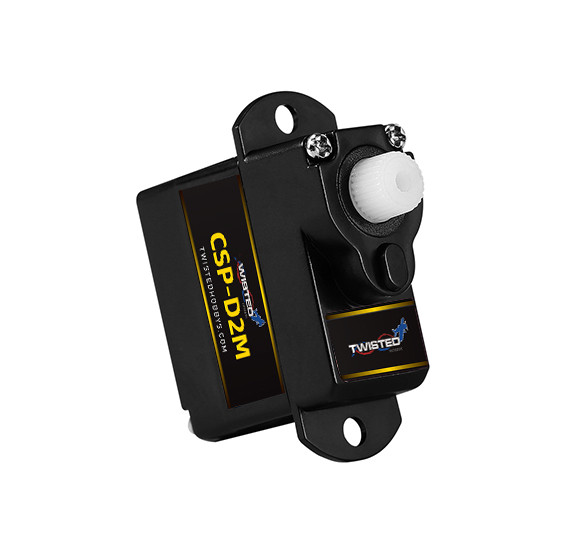

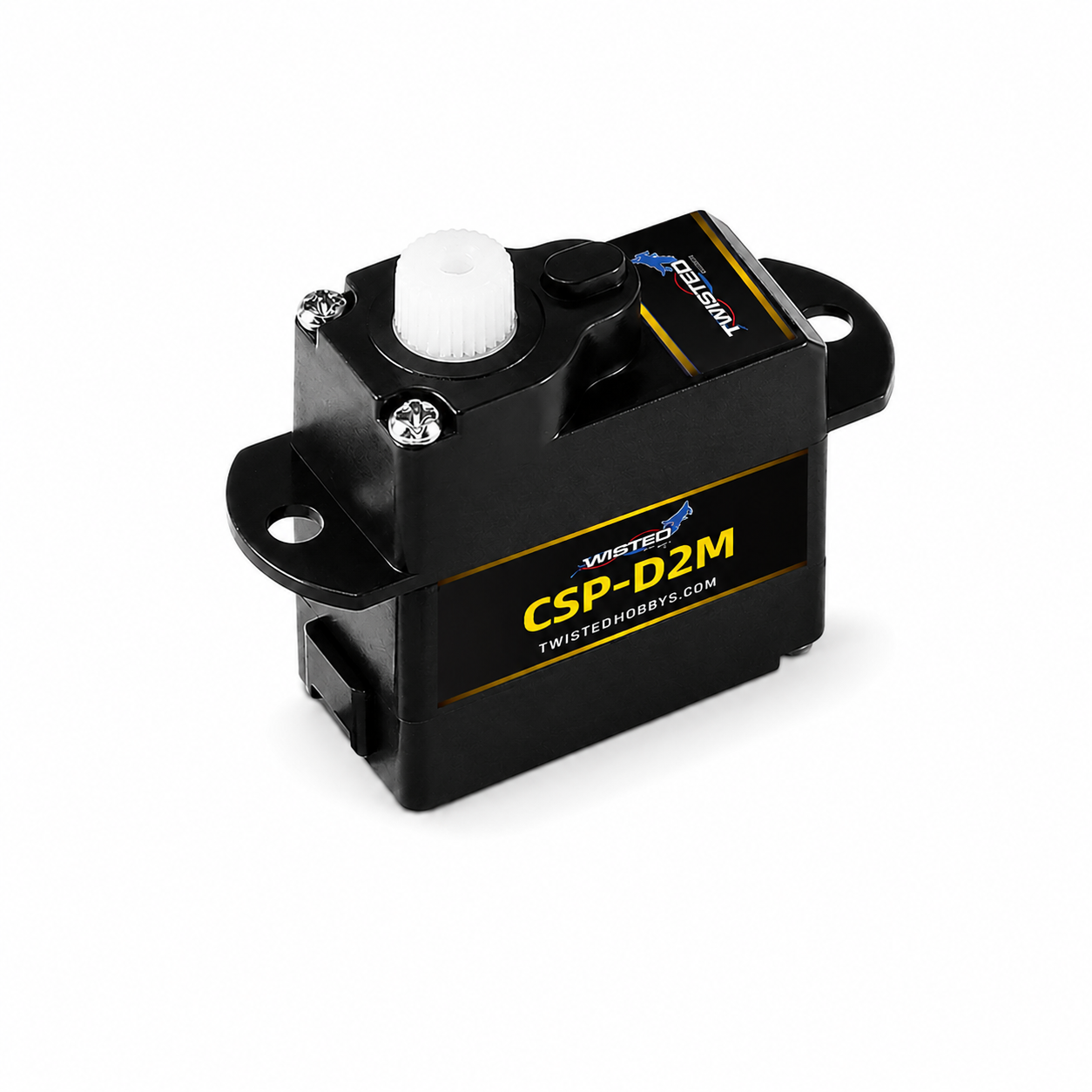

CSP-D2M 2g High-Speed Digital Servo
The Crack Series Pro CSP-D2M is an extremely lightweight digital servo developed for indoor, competition, and very small EPP aircraft where every gram matters.
Its coreless motor delivers exceptionally quick response, while the compact ABS case and lightweight plastic gear train keep the total weight to approximately 2.6 g including the wire. It is best suited for small control surfaces and low-load linkage applications.
Features and Specifications
- Operating Voltage: 3.7 to 5.0V DC
- Stall Torque: At least 0.30 kgf·cm at 4.2V
- No-Load Speed: Less than 0.06 sec/60° at 4.2V
- Weight: 2.6 g ± 0.2 g including wire
- Dimensions: 16.2 x 8.2 x 17.1 mm
- Case: Lightweight ABS

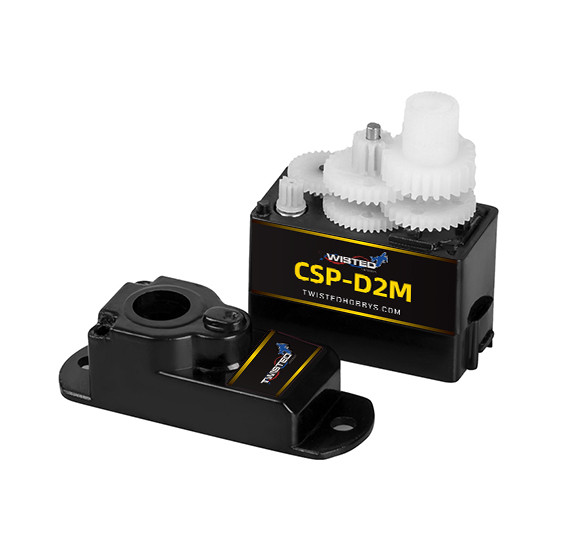

- Gear Set: Plastic gears
- Motor: Coreless
- Mechanical Limit Angle: 360°
- Wire Length: Approximately 100 mm / 4 inches
- Recommended Applications: Ultra-light indoor, competition, and small EPP aircraft
Important Voltage and Installation Notice
The maximum operating voltage is 5.0V. Do not connect this servo to a BEC with a 6V or higher output. Confirm the ESC BEC output voltage before installation. Use lightweight, freely moving linkages and check all control surfaces for binding before flight. This servo is designed for low-load applications and should not be used with large or heavily loaded control surfaces.

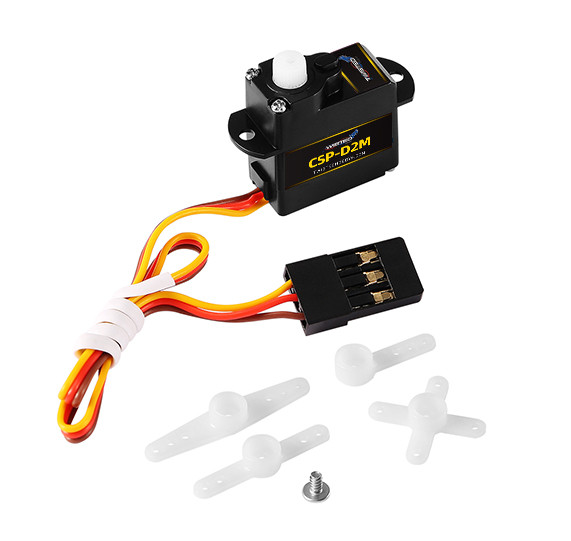

Included
- One CSP-D2M digital servo
