Product Description

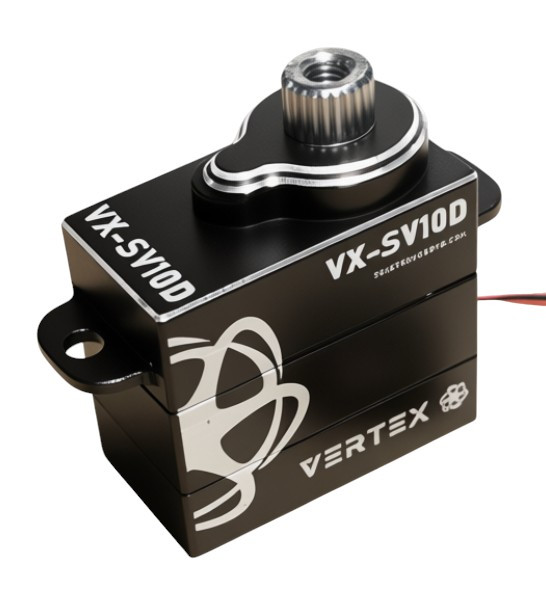

Twisted Hobbys Vertex servos deliver exceptional speed. Featuring precision metal gears and a solid metal case, the VX SV10D operates with whisper-smooth performance. Custom-engineered, team-tested, and flight-proven for unmatched reliability in your Twisted Hobbys aircraft.
Model No: VX-SV10D : Can be used as direct replacement of CSP-D6M and or CSP-D10 servos, as it is similar in size. We recommend a higher amp bec when running multiple of these servos. Idea tail servo for many of our models due to their speed.
Servo can produce high amounts of heat, we recommend not over loading servos, check control surface movements as required.
Spec's:
Operating Voltage: 4.8–6.0 VDC
Torque: 4.8v = .08 kgf·cm / 6v = 1.0 kgf·cm
No Load Speed: .075-.065 sec/60° @ 4.8v - 6.0v Stall: 900mA
Mechanical Limit Angle: 360°
Casing Material: CNC Machined Aluminum
Gear Material: Metal Gears
Motor Type: Coreless Motor
Weight: 10.0g ± 0.5g(weight wire)
Dimensions: 11.3 × 20 × 21mm
