Product Description
Twisted Hobbys Vertex servos deliver insane speed, power, and durability. Built with metal gears and cases, the VX HV20D runs on high voltage for peak performance. Custom-designed, team-tested, and flight-proven for unmatched reliability in your Twisted Hobbys builds.

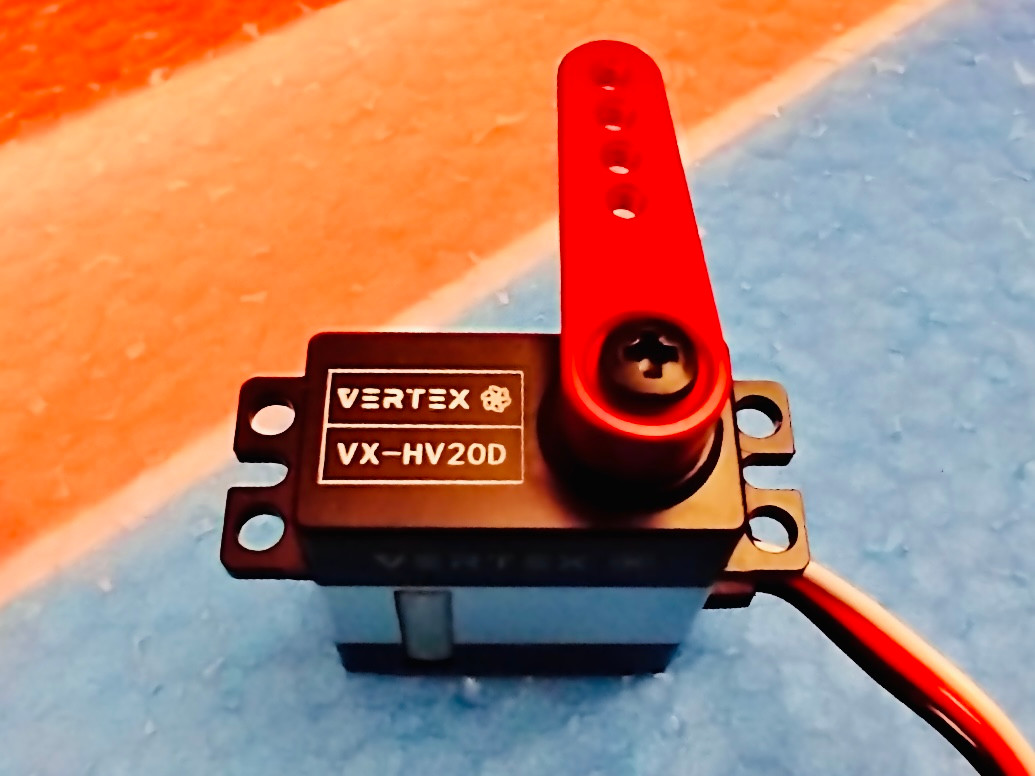

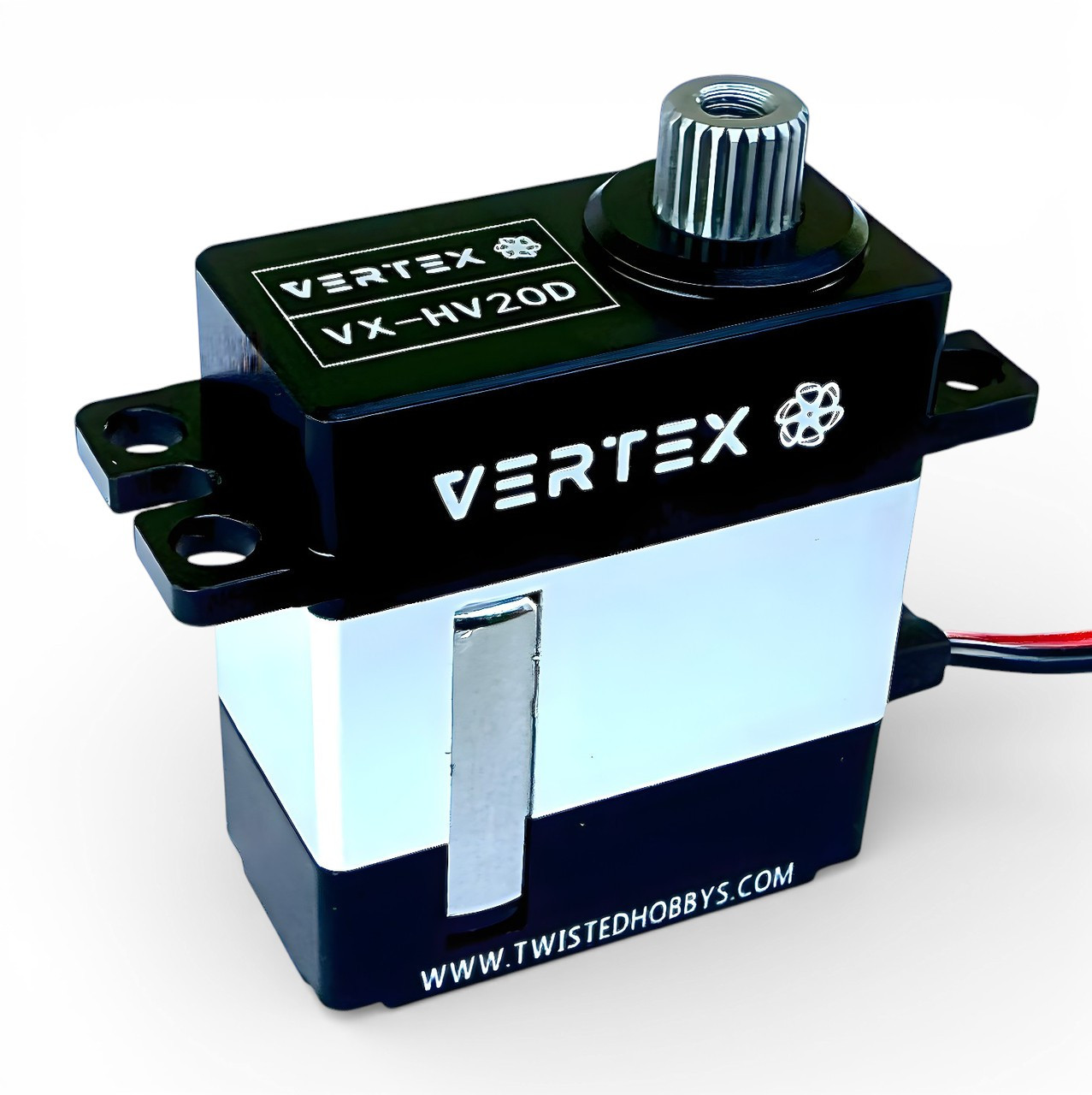

Model No: VX-HV20D
Specifications:
Operating Voltage: 6–8.4VDC
Stall Torque: 4.5–6.7kgf·cm @ 6–8.4V
No Load Speed: 0.12–0.09sec/60° @ 6–8.4V
Mechanical Limit Angle: 360°
Casing Material: CNC Machined Aluminum

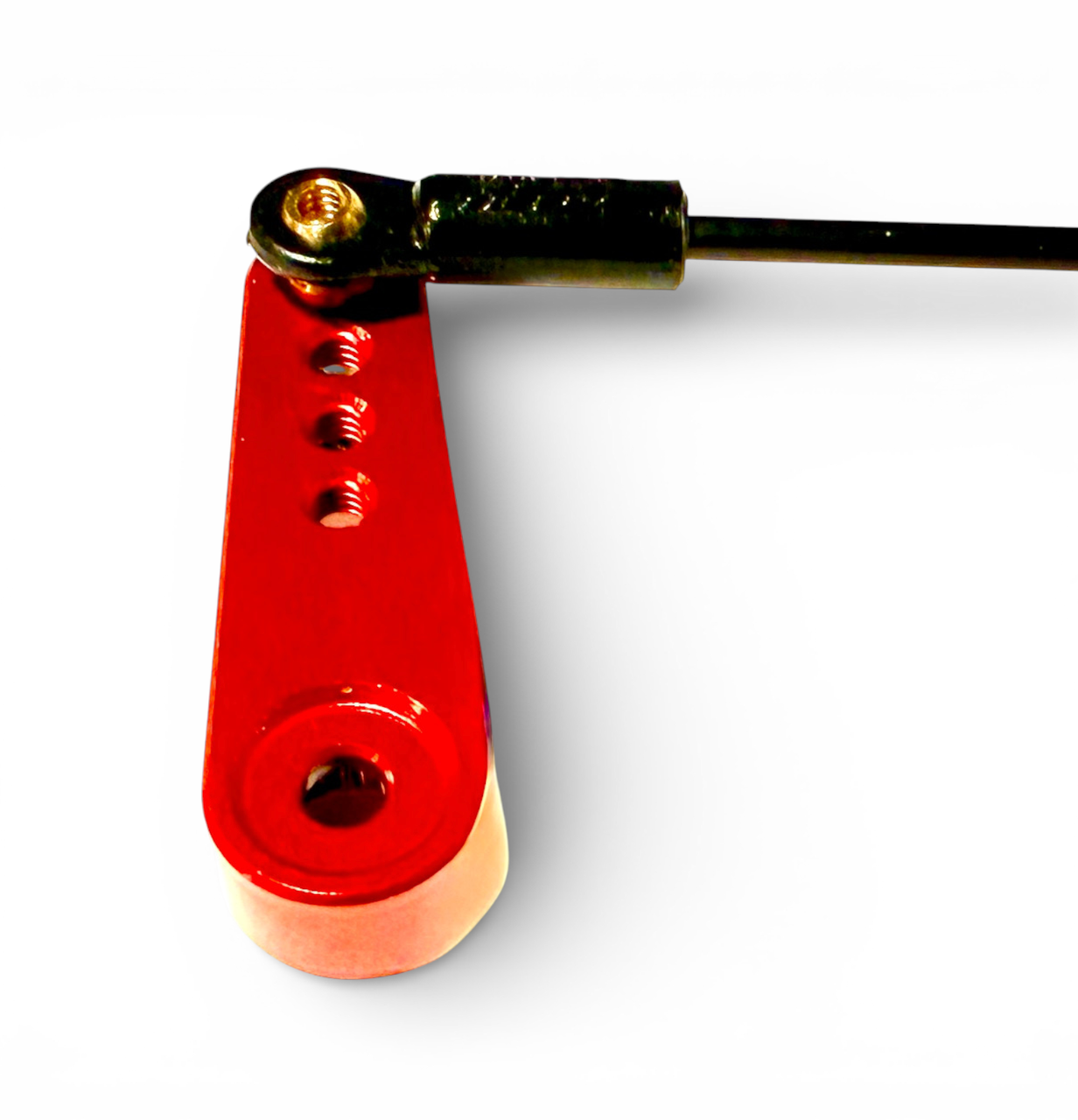

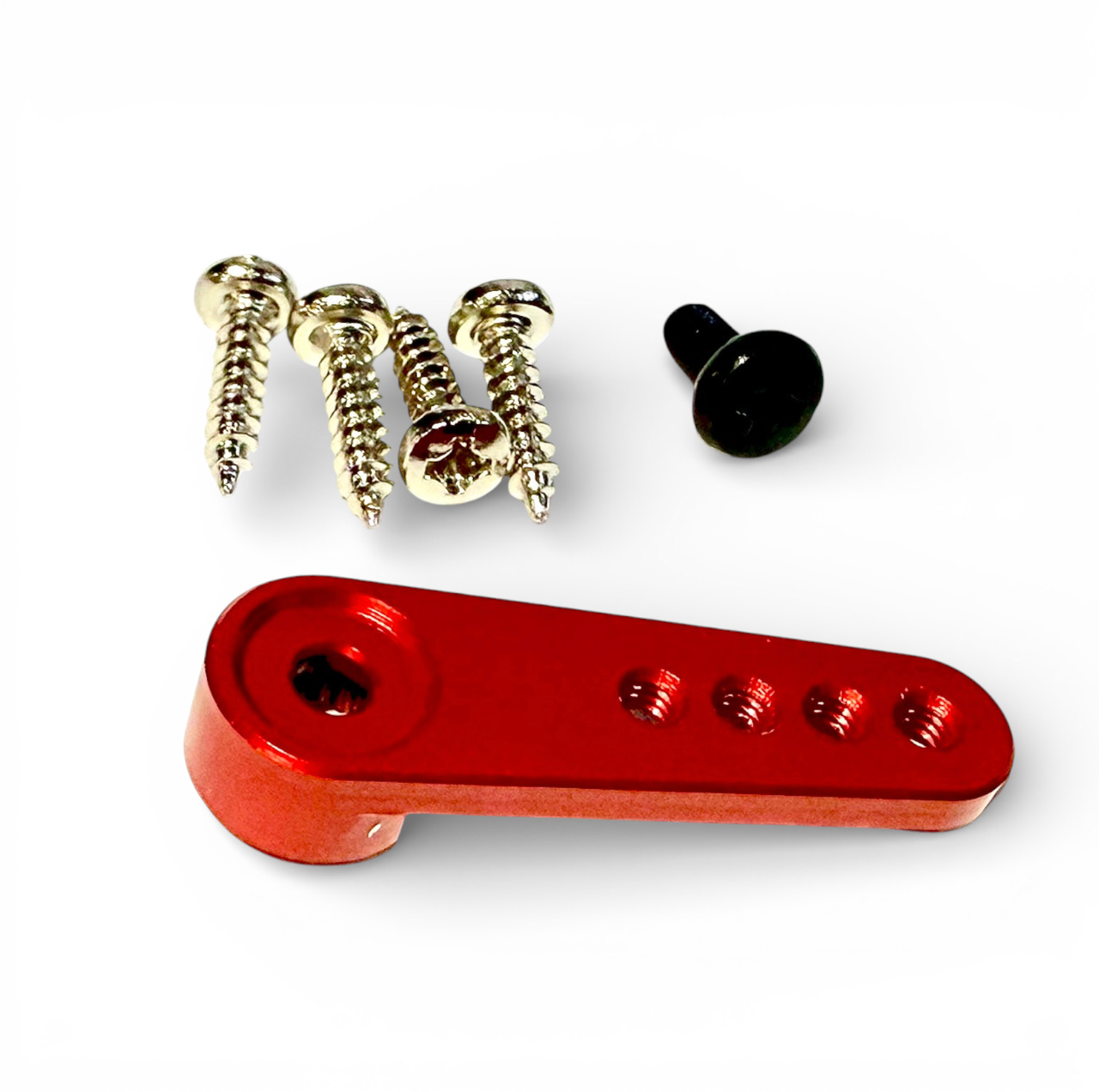

Gear Material: Metal Gears / Horn Alum
Motor Type: Coreless Motor
Weight: 20.0g ± 1g (depending on wire length) standard wire length: 35cm length.
Dimensions: 12×27×23mm
Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
Top Tier
The Vertex VX-HV20D is by far one of the strongest and smoothest servos on the market. The metal case combined with the performance you get with high voltage makes for a "locked in" flight performance only rivaled by the likes of balsa aircraft. They are definitely not the cheapest option but for their performance you wont be left disappointed, these really are the best of the best for 39" to 48" foamies or balsa airplanes!
