Product Description

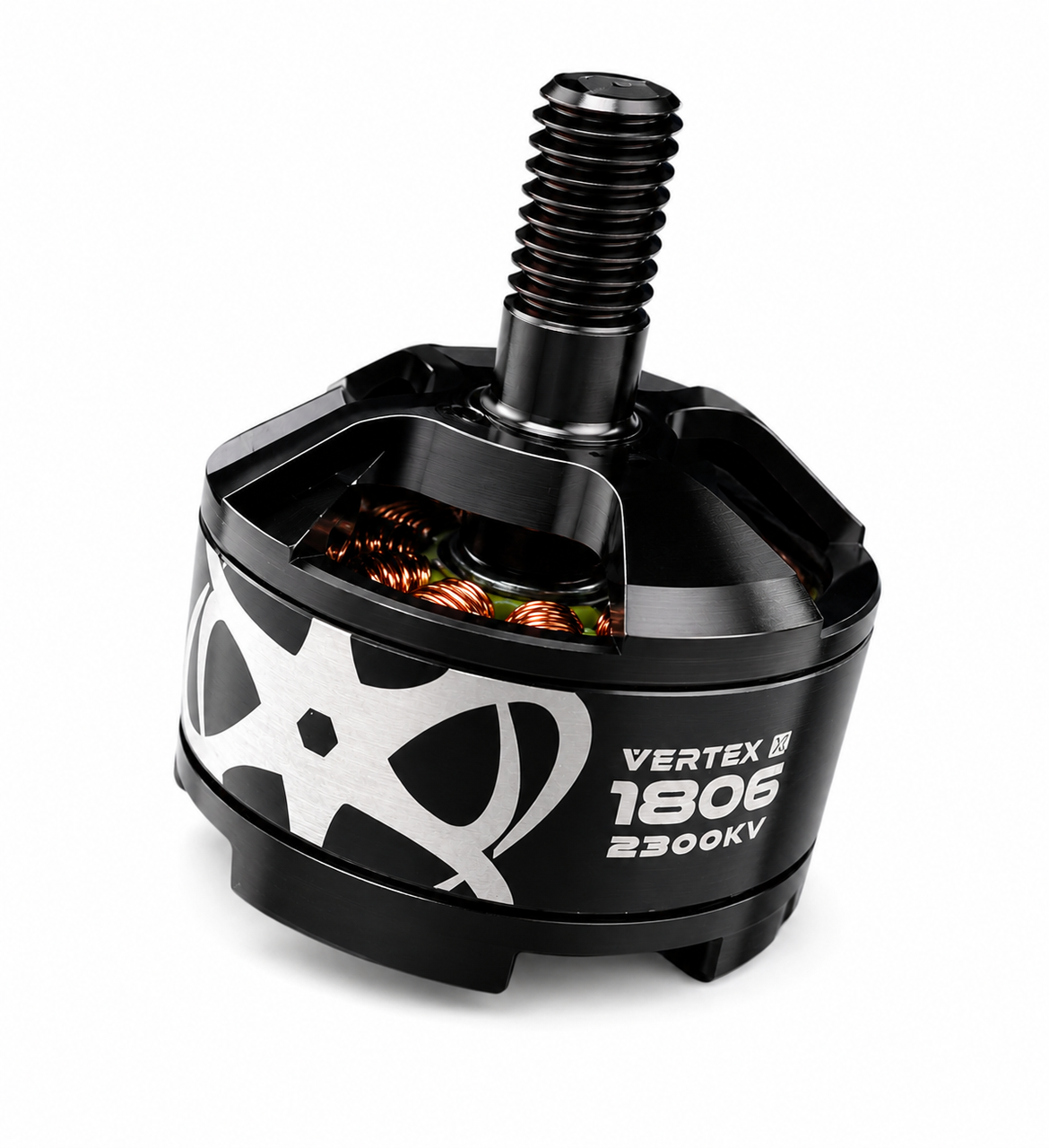

The Vertex 1806 2300KV is a compact and efficient brushless motor, perfect for small to medium-sized multirotors and lightweight airplane models (Ares Jet). Crafted with high-quality materials and precision engineering, this motor delivers smooth performance with enhanced durability.
Applications:
- Designed for the RcFactory Ares & Witch (attaches using 2 or 4 bolts based on flange design).
- Suitable for small to medium-sized multirotors and lightweight aircraft models.
Specifications:
- KV (RPM/Volt): 2300KV
- Rotor Poles: 14
- Voltage: 2-3S LiPo
- Stator: 12
- Resistance: 0.168Ω
- Weight: 19-20g (depending on wire length and bullet connectors)
- No Load Current: 0.5A @ 11.1V
- Length: 30mm
- Shaft Diameter: 2mm
- HUB Diameter: 5MM
- Motor Diameter: 23mm

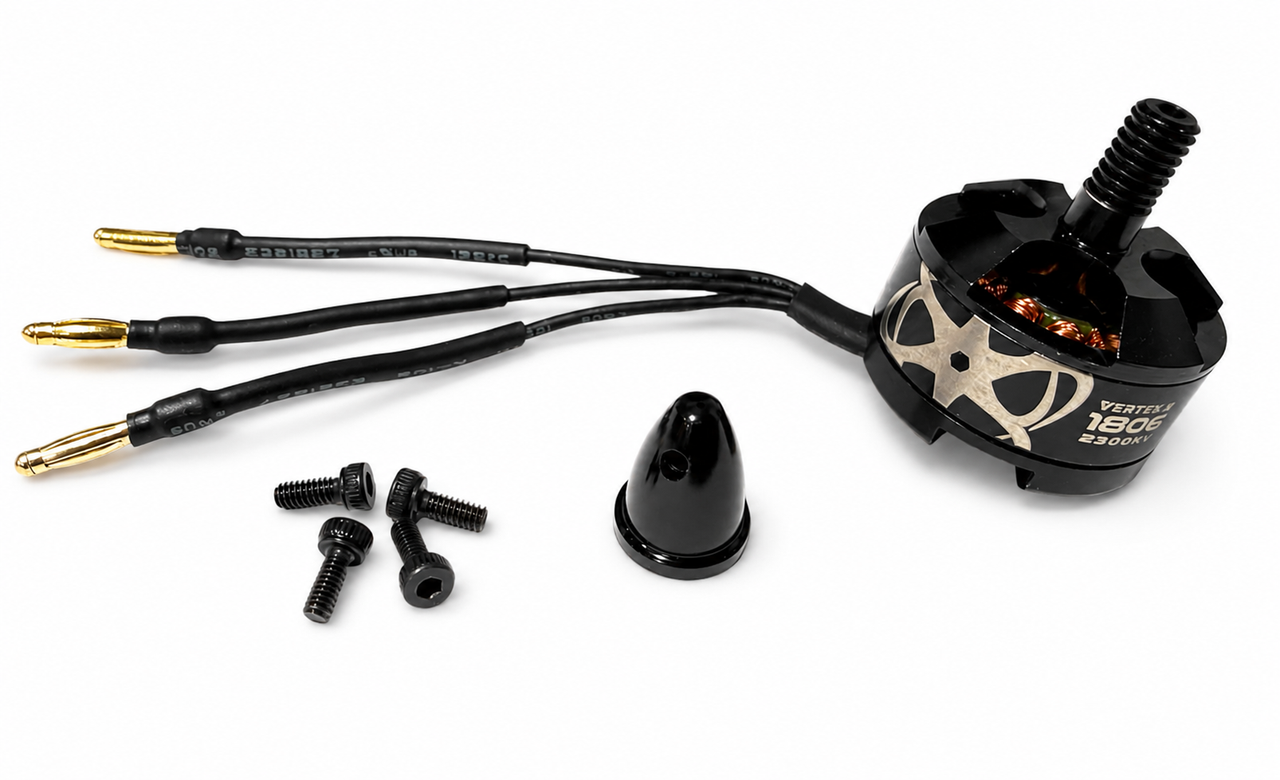

Includes:
- 1 CCW motor (can rotate in either direct)
- (4) mounting allen head bolts
- Pop mount screw head
- 2MM bullet pre-soldered
