Product Description

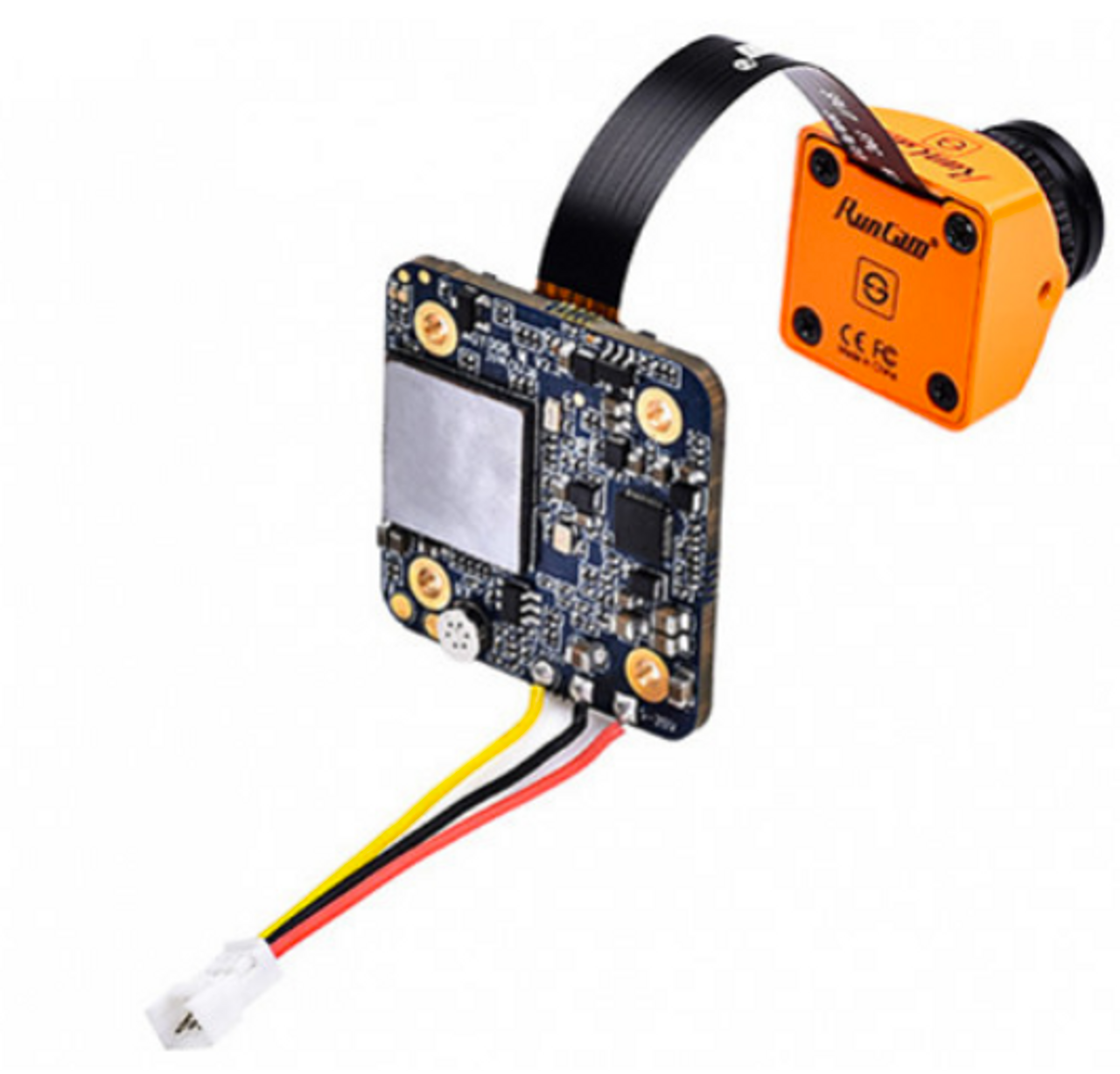

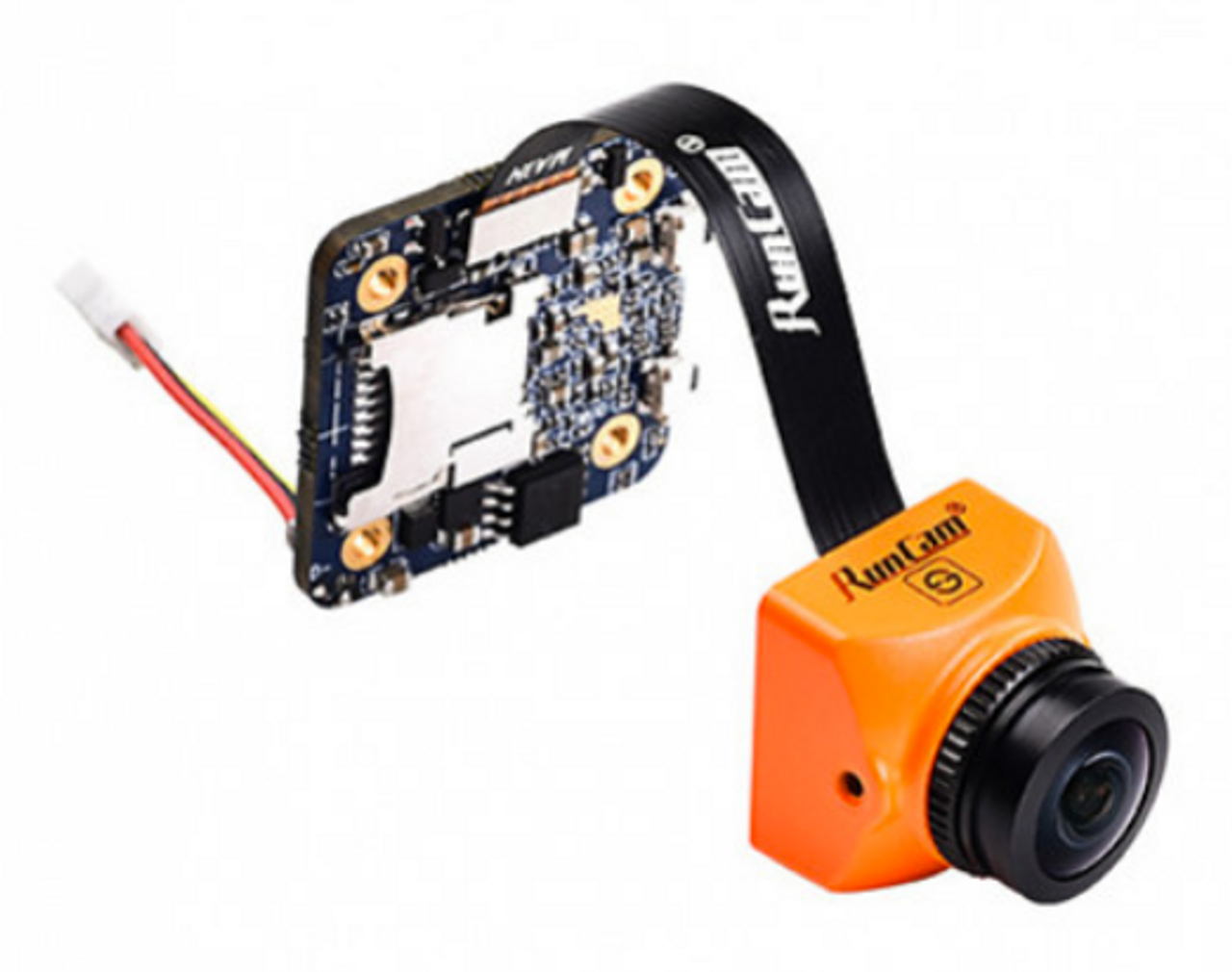

The RunCam Split Mini 2 is an amazing FPV/HD recording camera that allows you to capture crystal clear 1080p video at 60fps without the need for a bulky action camera. The Split Mini 2 keeps the same small camera form factor (19x19) as the original Split Mini. The big difference here is the PDB. Instead of two boards the Split Mini 2 now comes with only 1 PDB! To cram all of its components into one, they made the PDB a bit thicker and wider, but without the need for standoffs, the overall height and weight.
Features:
• Micro size camera
• Modular design
• 1080P/60fps HD recording and WDR FPV camera
• Power-off protection for video files
• Ultra lightweight (12.5g)
• Low latency TV-OUT (40ms)
• Wide voltage (5-20V)
• Anti-drop SD card
• FPV aspect ratio 16:9/4:3 switchable
Specs:
Field of View (FOV): Recording FOV: 165°; FPV FOV: 165°@16:9 / 130°@4:3
Video Resolution: 1080@60fps / 1080@50fps / 1080@30fps / 720@60fps
Video File Format: MOV
Image Resolution: 2 MP
TV Mode: NTSC (720x480) / PAL (720x576) Switchable
Interface: JST 1.25mm / UART
Max Micro SD Card Supported: 64GB (need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)
Hole Distance of Installation: 20x20mm
Dimensions: PCB 29x29mm / Lens Module 19x19mm
Power Input: DC 5-20V
Working Current: 650mA @5V / 270mA @12V
Weight: 12.5g
Package:
1 x Camera
1 x Micro to a full-size mounting bracket
1 x Metal cover
1 x M2 screw set
1 x cable
1 x manual
