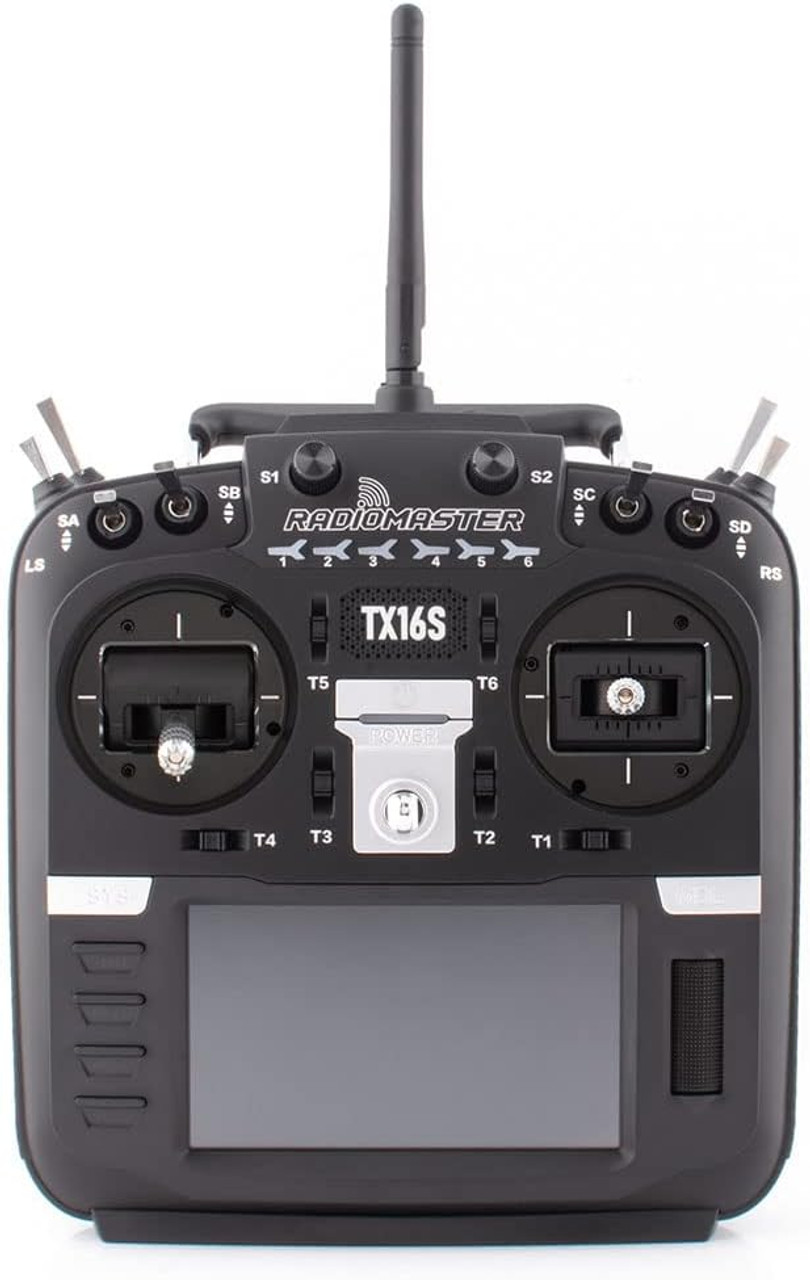

RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)

(No reviews yet) Write a Review
SKU:
RadioMaster TX16S MK11
MPN:
RadioMaster TX16S
On Sale
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
  • RadioMaster TX16S Mark II Radio/Transmitter - Hall Gimbals 4in1 (EDGETX & OPENTX)
Now: $209.99
Was: $219.99

Description

 Specification

  • Item: TX16S Mark II
  • Size: 287x129x184mm
  • Weight: 750g (without battery)
  • Transmission frequency: 2.400GHz-2.480GHz
  • Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)
  • Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
  • SD card: 256MB by default, 8GB maximum
  • Antenna gain: 2db (transmit power adjustable)
  • Working current: 400mA
  • Working voltage: 6.6-8.4v DC
  • Remote control distance:> 2km @ 22dbm
  • Radio firmware: EdgeTX
  • Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
  • Channels: Up to 16 channels (depending on the receiver)
  • Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
  • Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
  • Module Bay: JR compatible module bay

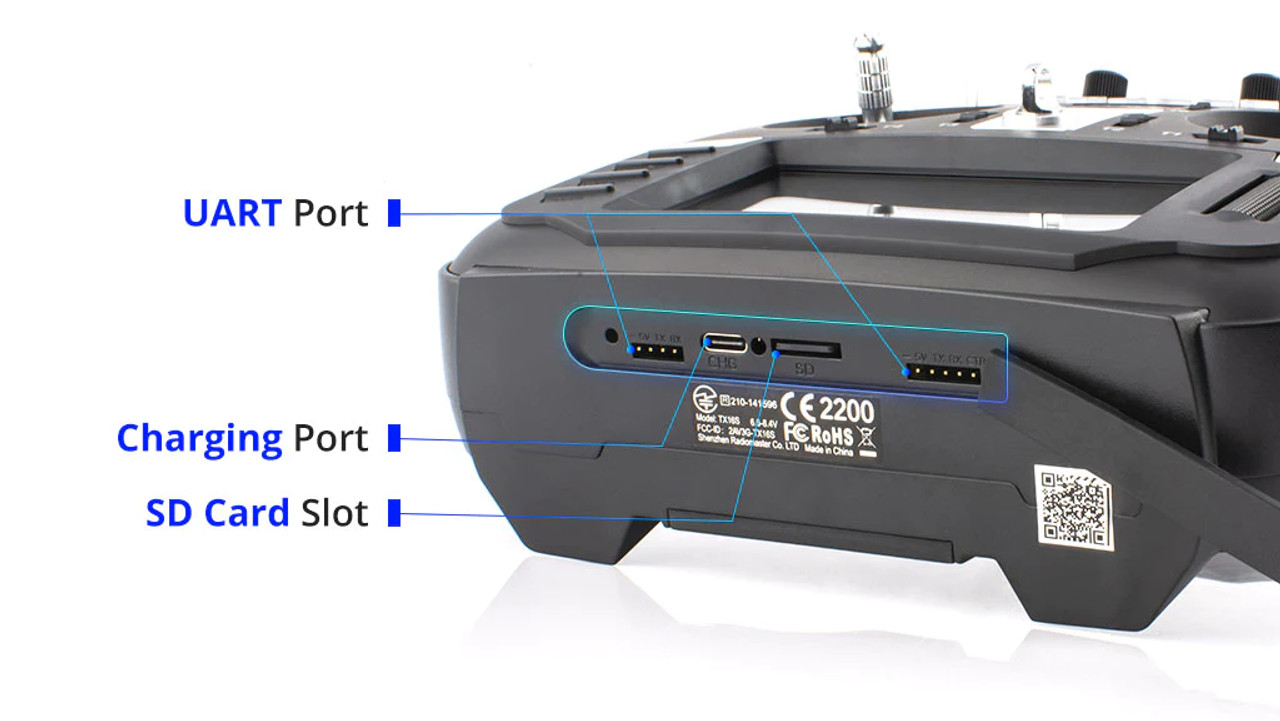

  • Upgrade method: Supports USB-C online / SD card offline upgrade

Features and updates:

  • Support EdgeTX & OpenTX
  • EdgeTX is installed by default (Touch screen enabled).
  • 4in1 is if you only want to use other protocols such as Frsky D8/D16, but these are kind of obsolete and slowly phasing ou
  • V4.0 Hall Gimbals, same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.
  • Flat & Raised Grips Included
  • Both the raised and flat versions of the rear grips are included allowing you to customize the feel of your TX16s MKII right out of the box.

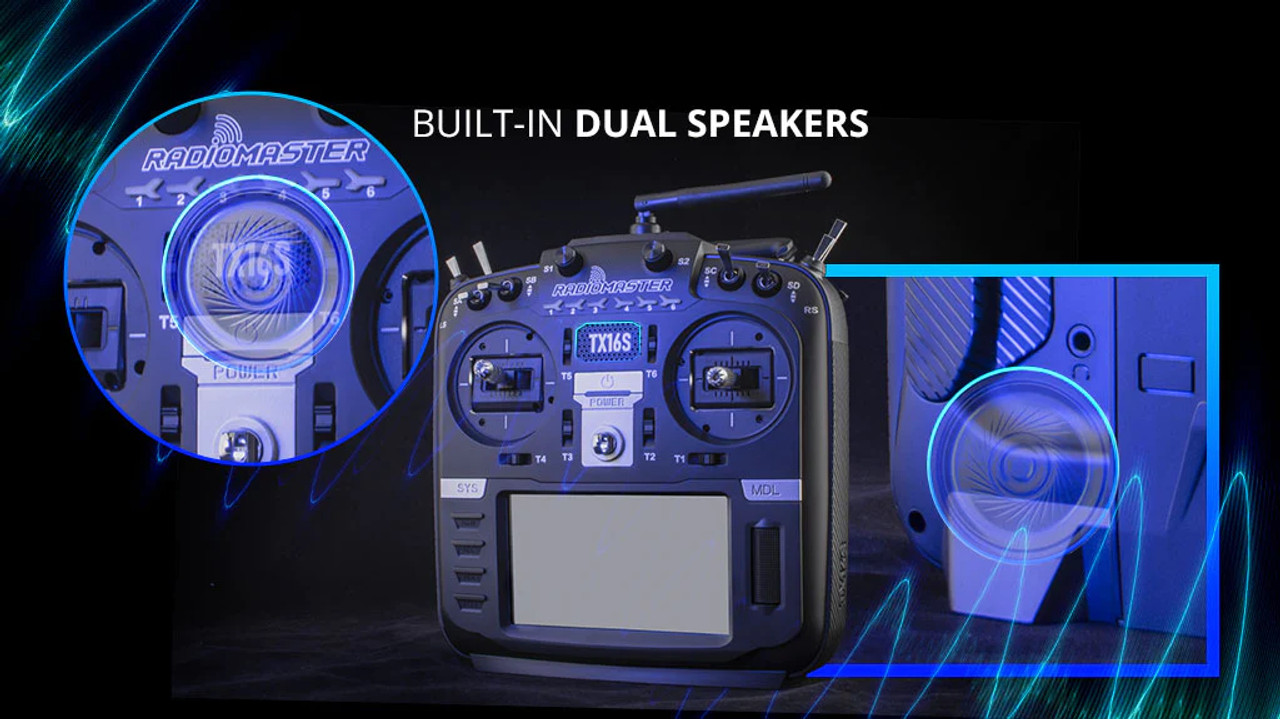

  • Built-in dual speakers
  • External Module Bay
  • The TX16s natively supports Team Black Sheep MicroTX modules in CRSF mode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.
  • Easy Firmware Updates

Upgraded Design

  • Retooled faceplate with improved fit and finish
  • Improved S1/S2 knobs with center detents
  • 4.3” IPS Color Display - The TX16s features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions.
  • Improved LS/RS Sliders with smoother feel and better centre-detents.
  • New 3.5mm Audio jack - Rear mounted audio jack minimizes RF interference from external modules and adds headphone audio feature.
  • Redesigned battery cover, easier to remove.
  • Rear DIY Socket added for personalized mods.

Package Includes

  • 1 * TX16S Mark II Radio Controller
  • 1 * 18650 Tray
  • 1 * USB-C Cable
  • 1 * Screen Protector
  • 1   pair of flat grips
  • 1   pair of raised grips (installed on radio by default)
  • 1 * TX16S Key Chain

Requires

  • 2s 3000-5000mah Lipo Not Included

Manual: Link

How to Bind Radio w/ Crack Receiver:
