LED Ultra Halo's Light Stick - XX0 (Small)

Made in the USA!!!  Introducing Ultra Halo's Light Stick's, cutting-edge LED emitter products: versatile, featherweight, low-power, rugged, and exceptionally bright. We're thrilled to announce the arrival of www.UltraHalo.com's premium LED offerings at Twisted Hobbys.

Professionally crafted for effortless installation, these LEDs ensure ultra-fast setup, allowing you to start flying immediately. Manufactured right here in the USA, they guarantee the lightest weight and highest quality available on the market today.

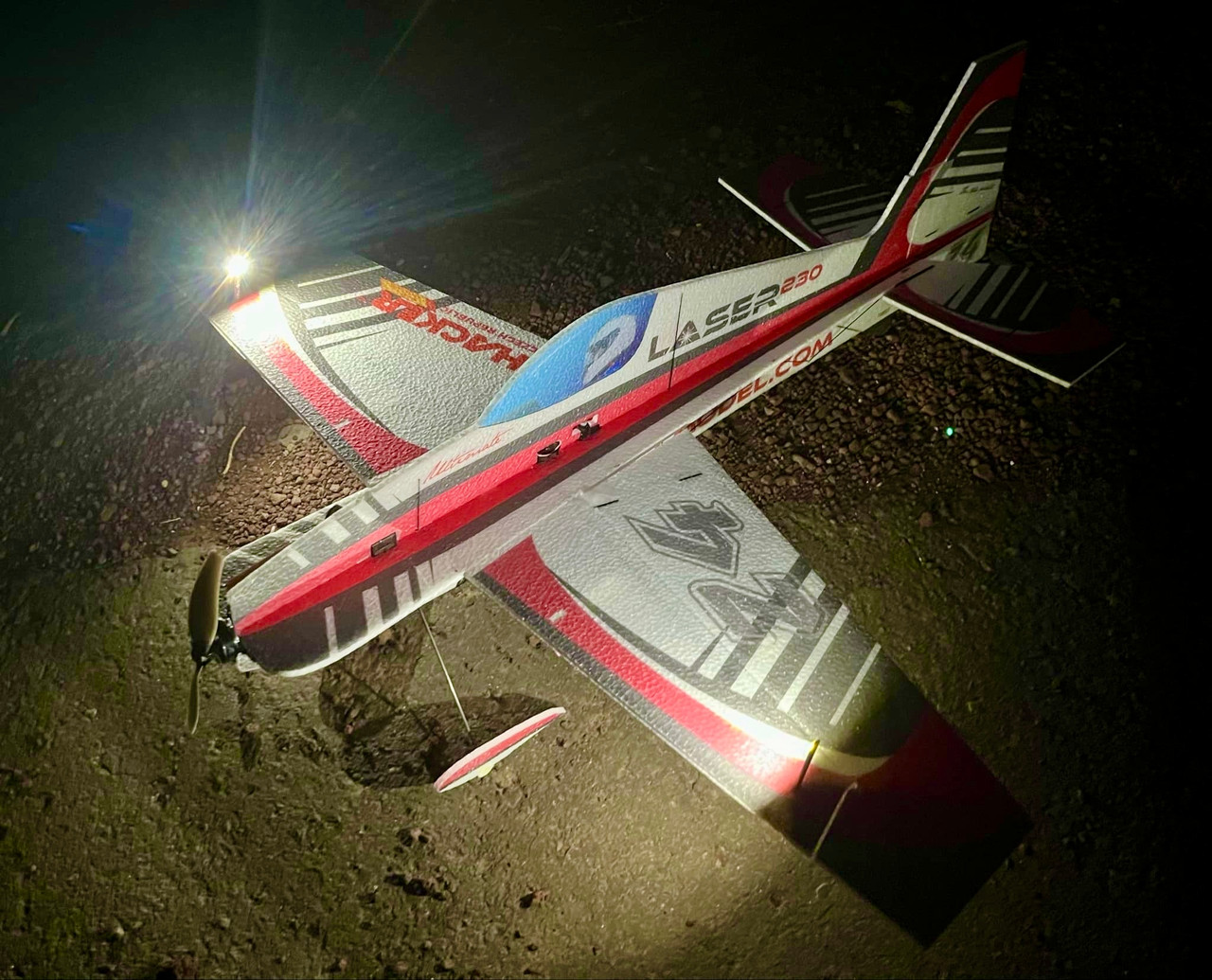

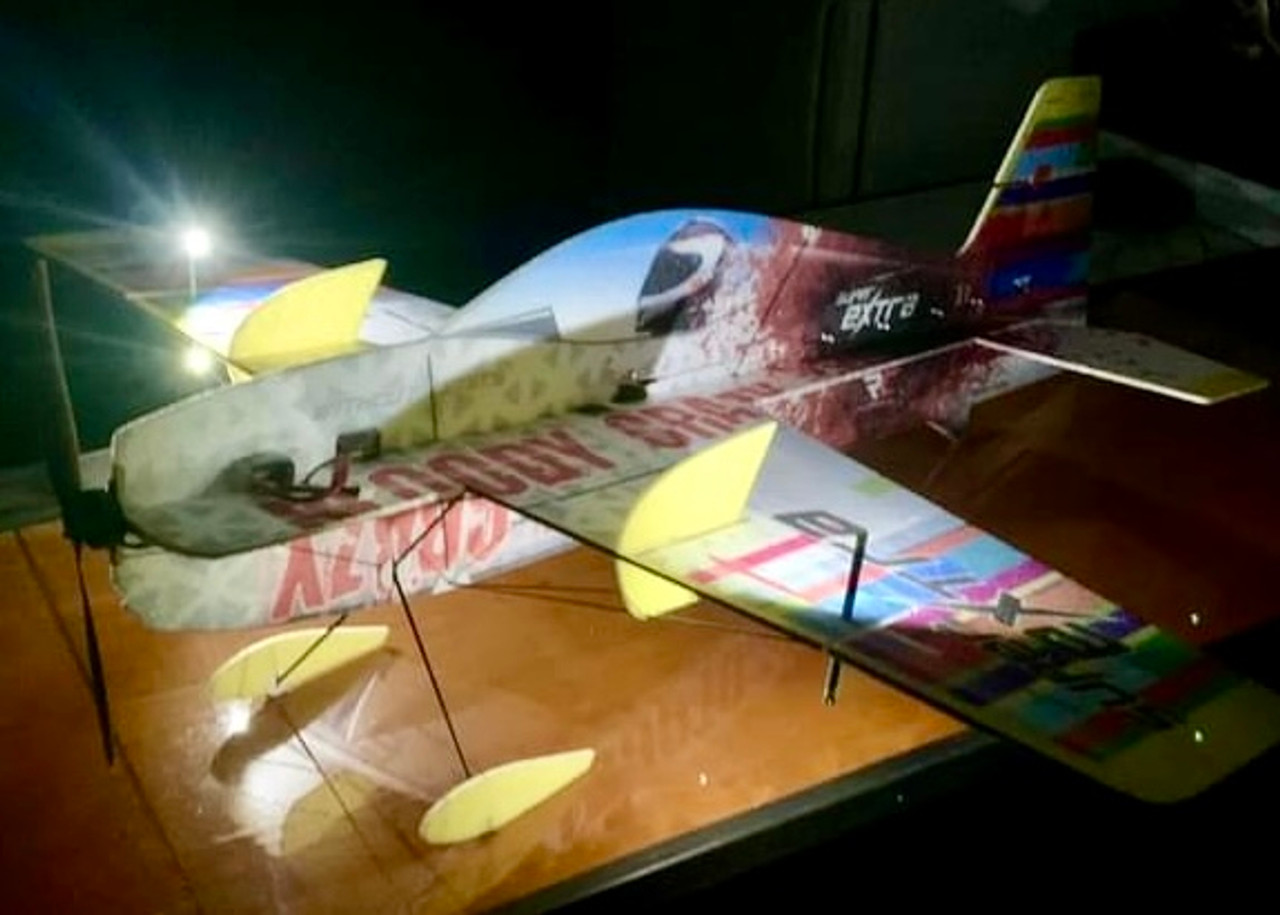

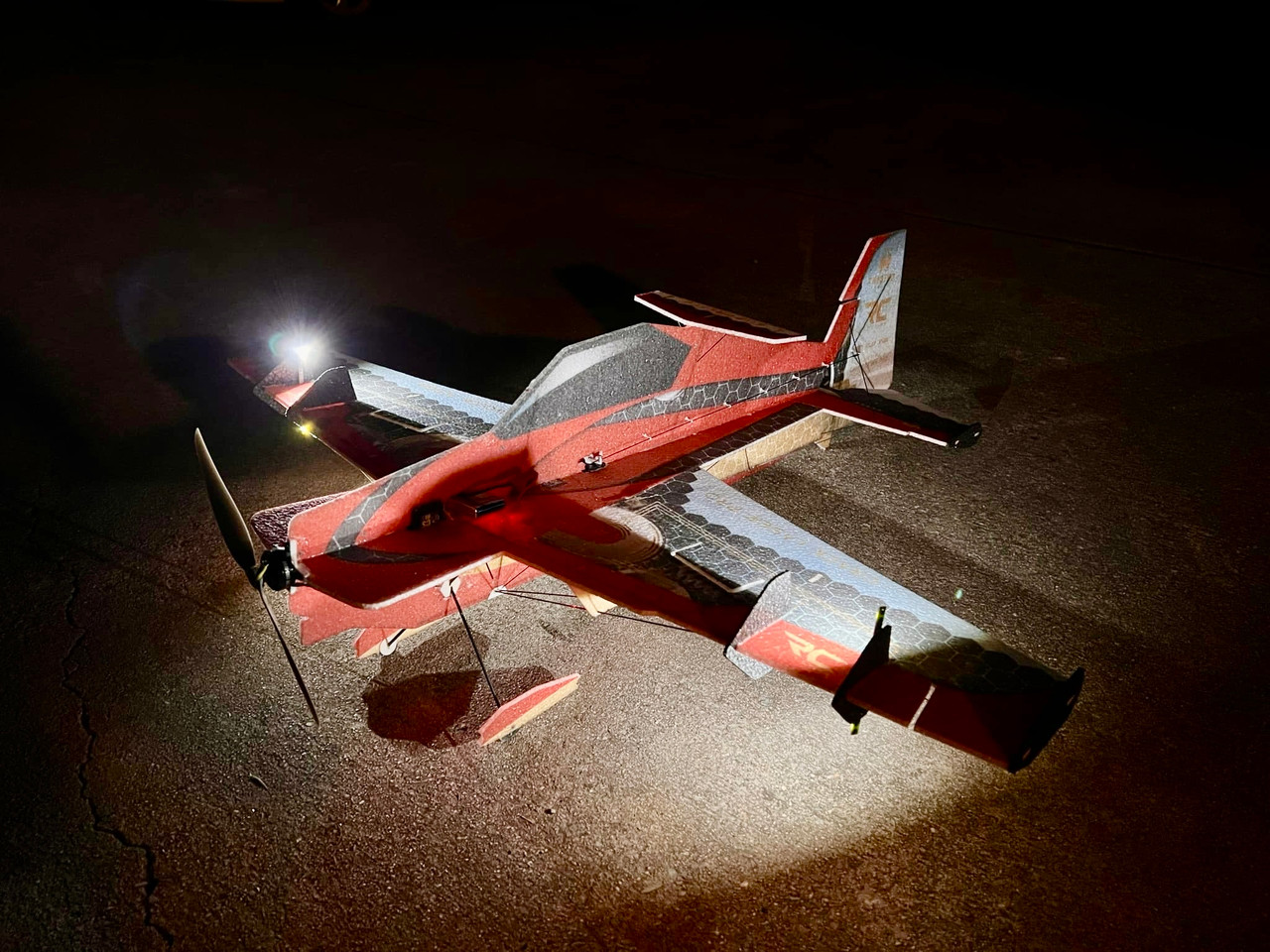

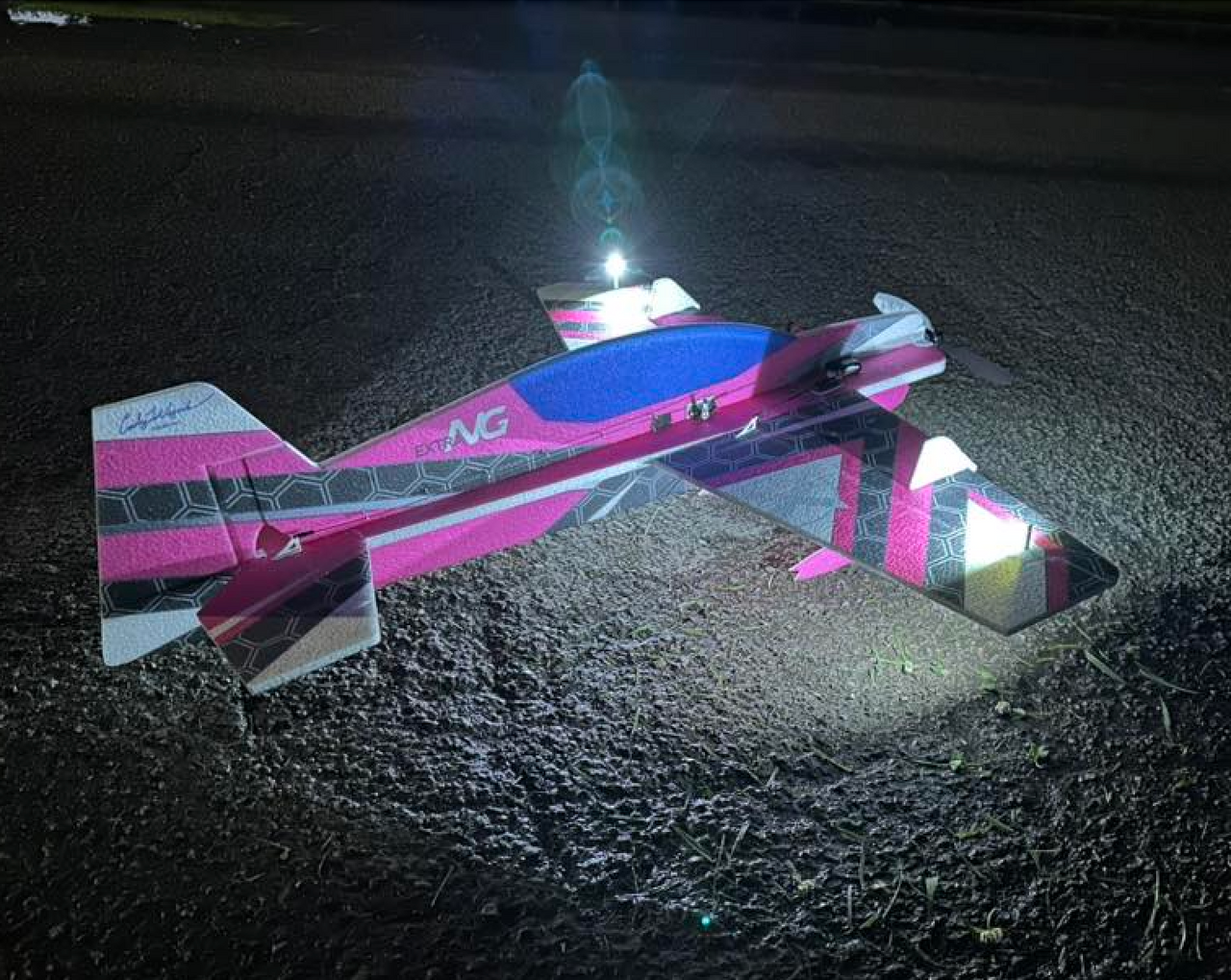

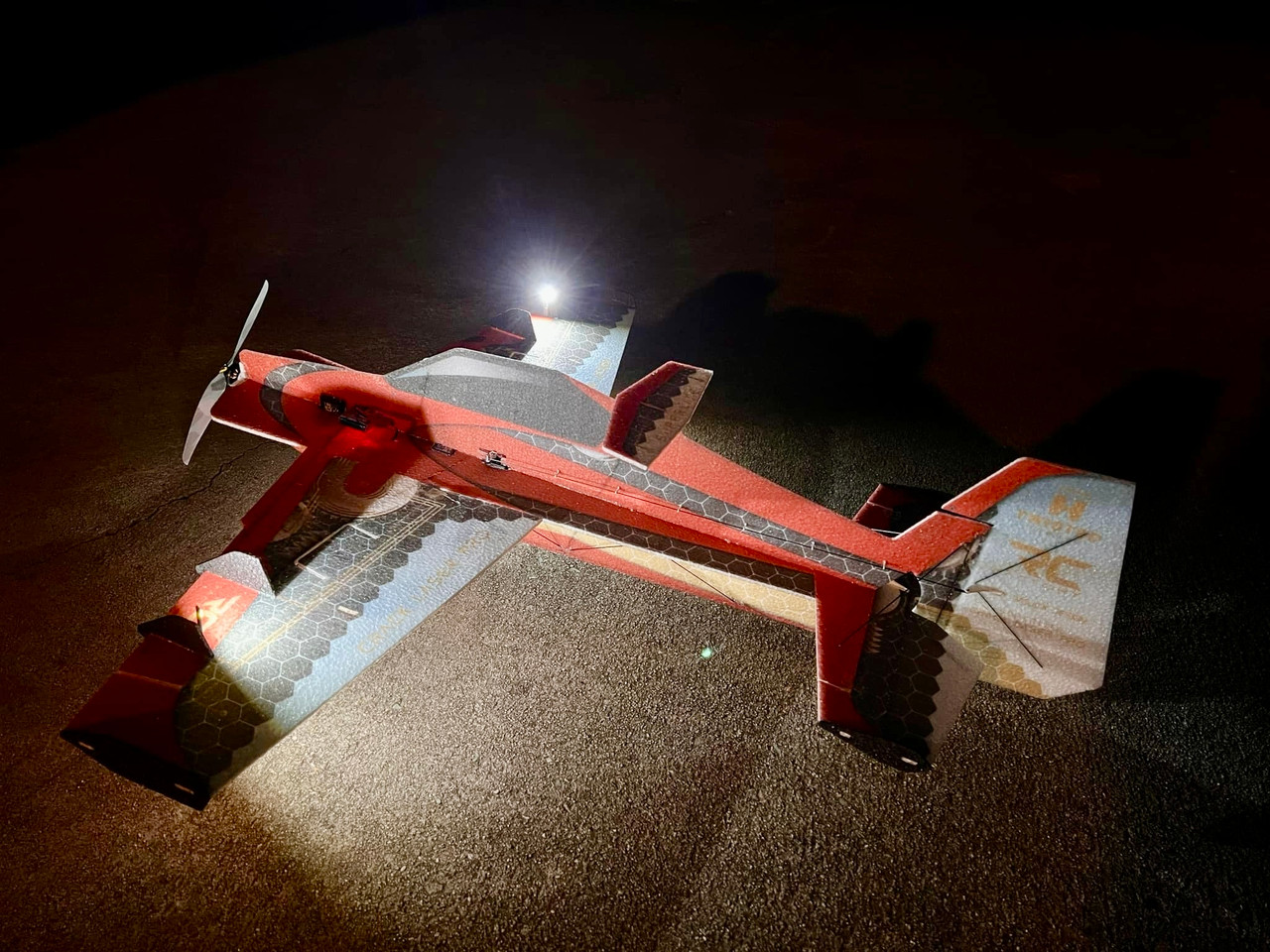

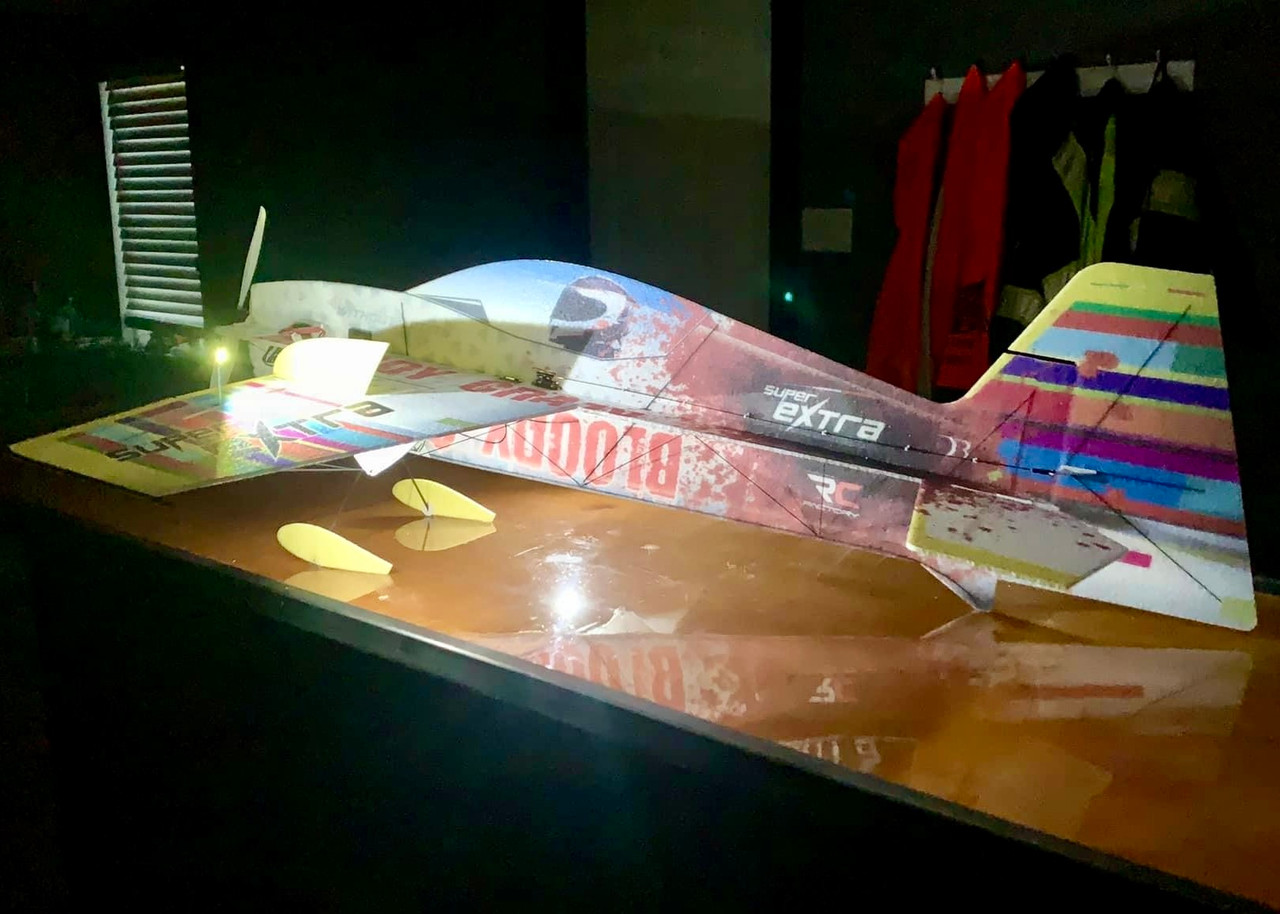

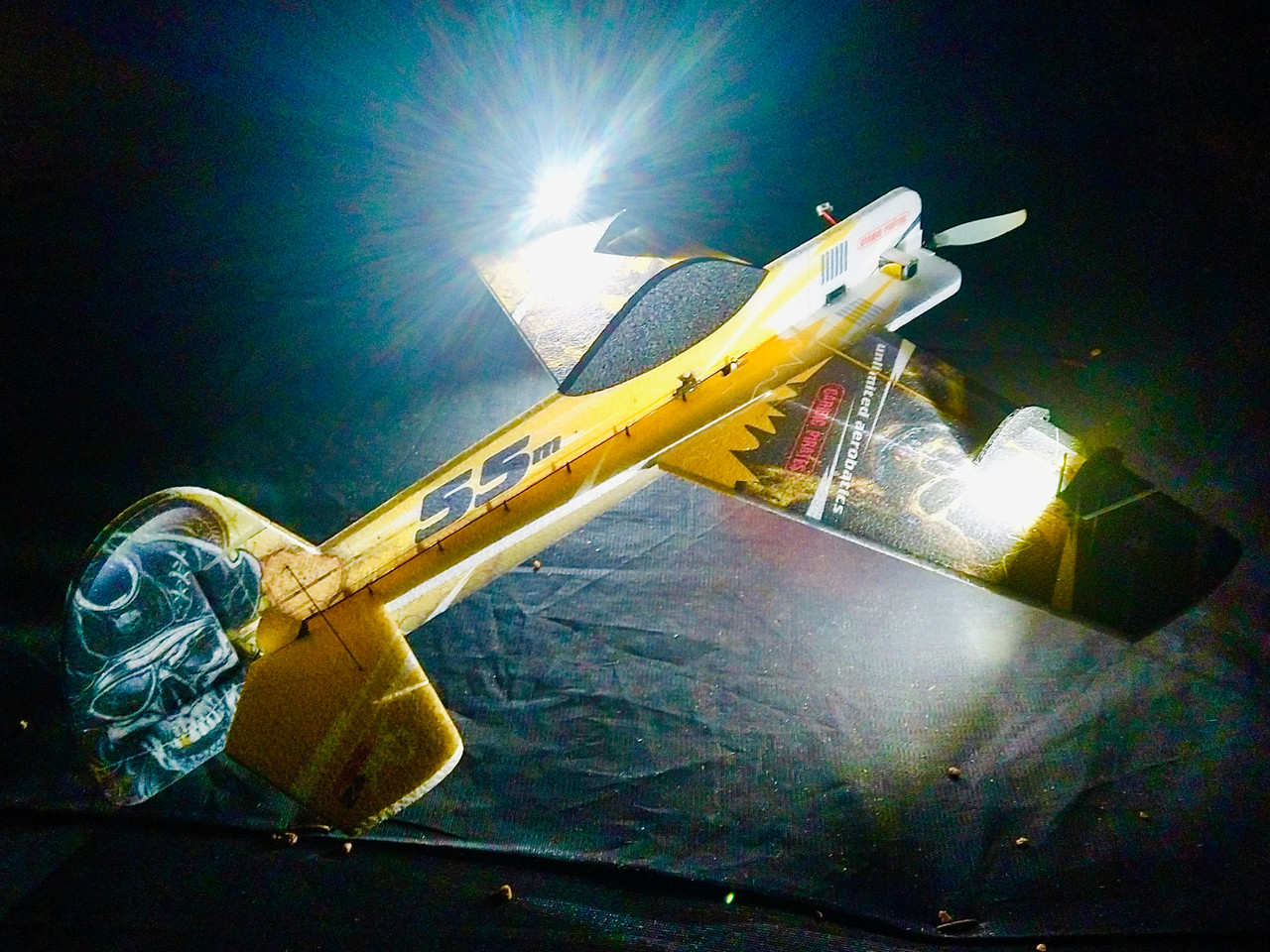

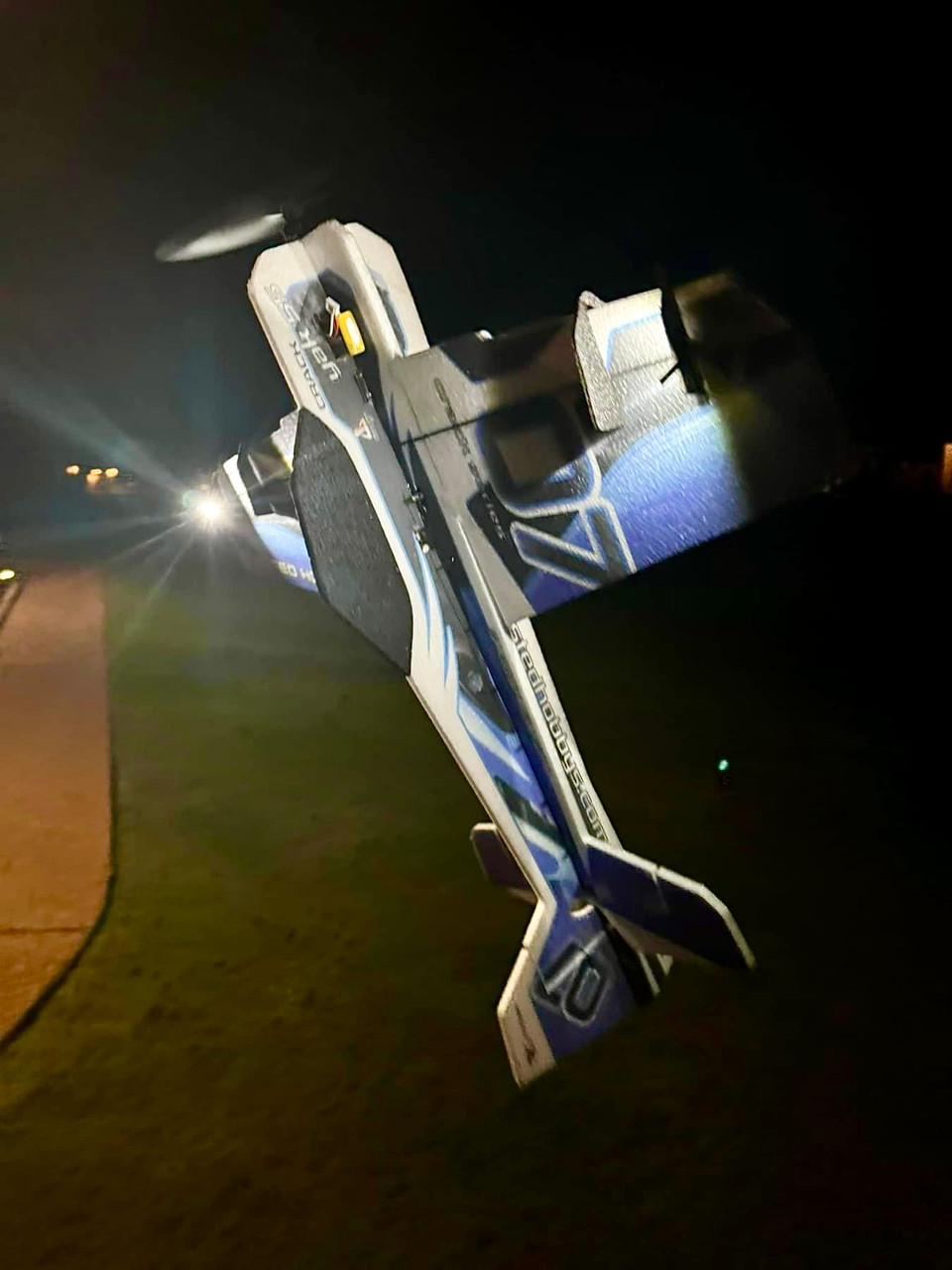

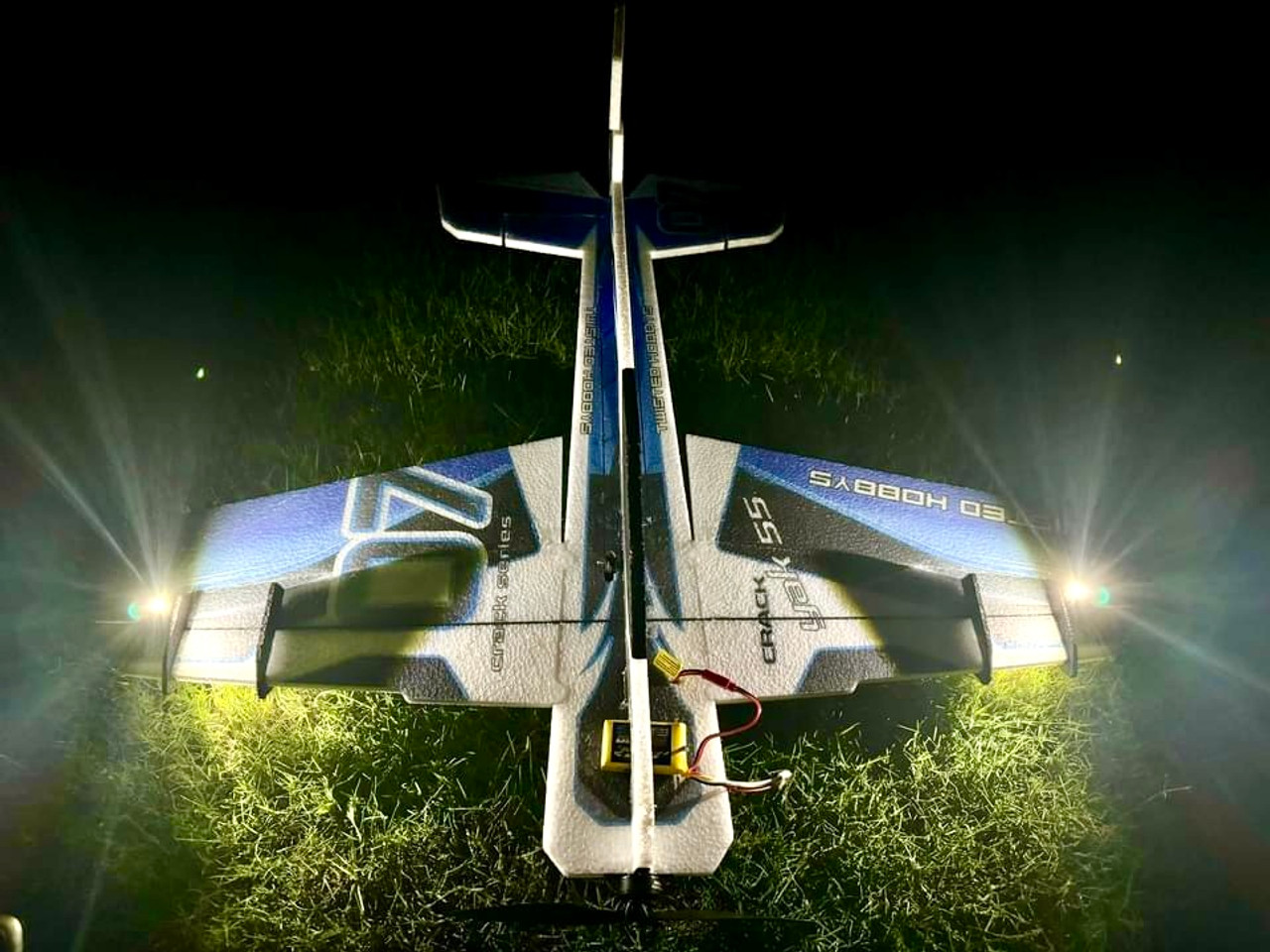

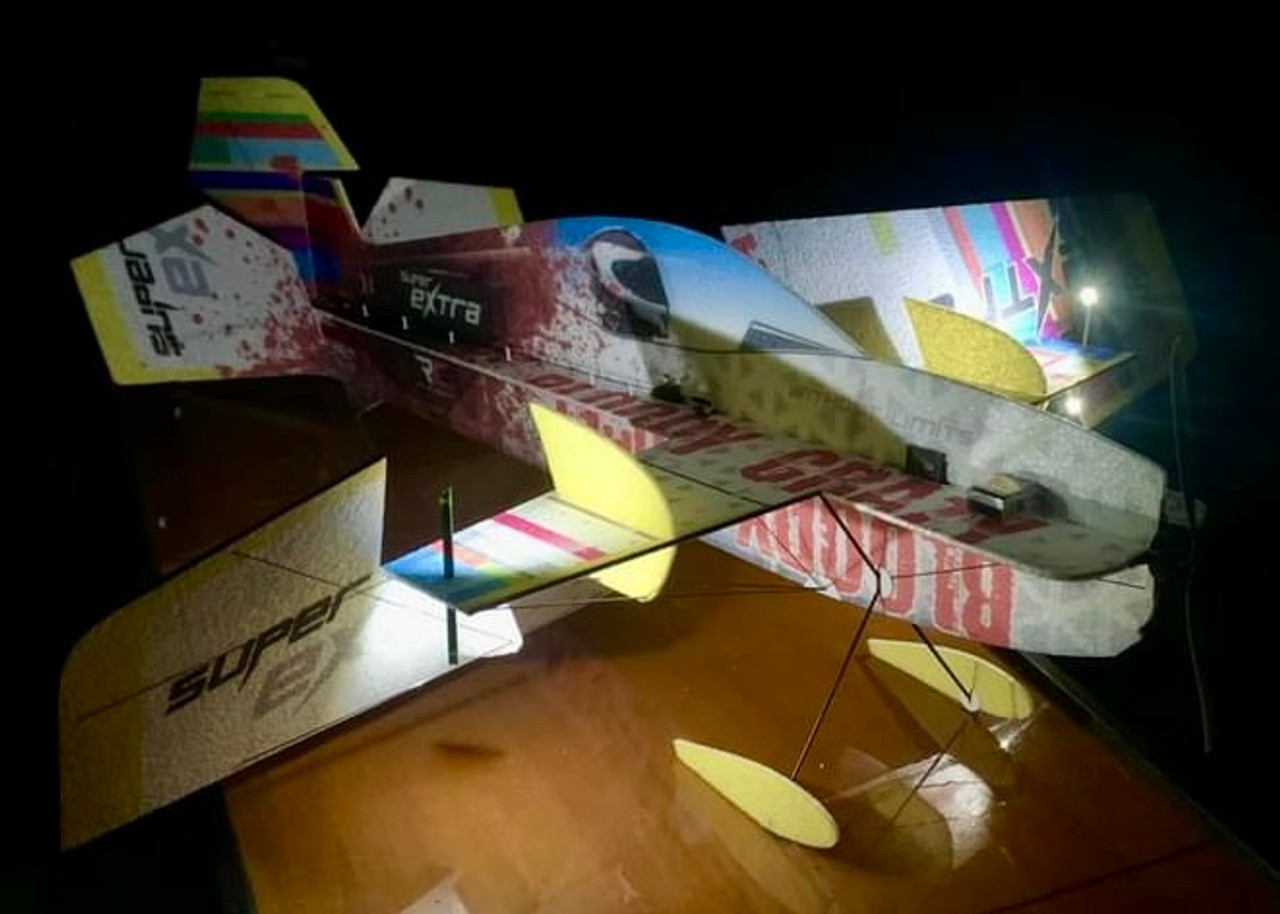

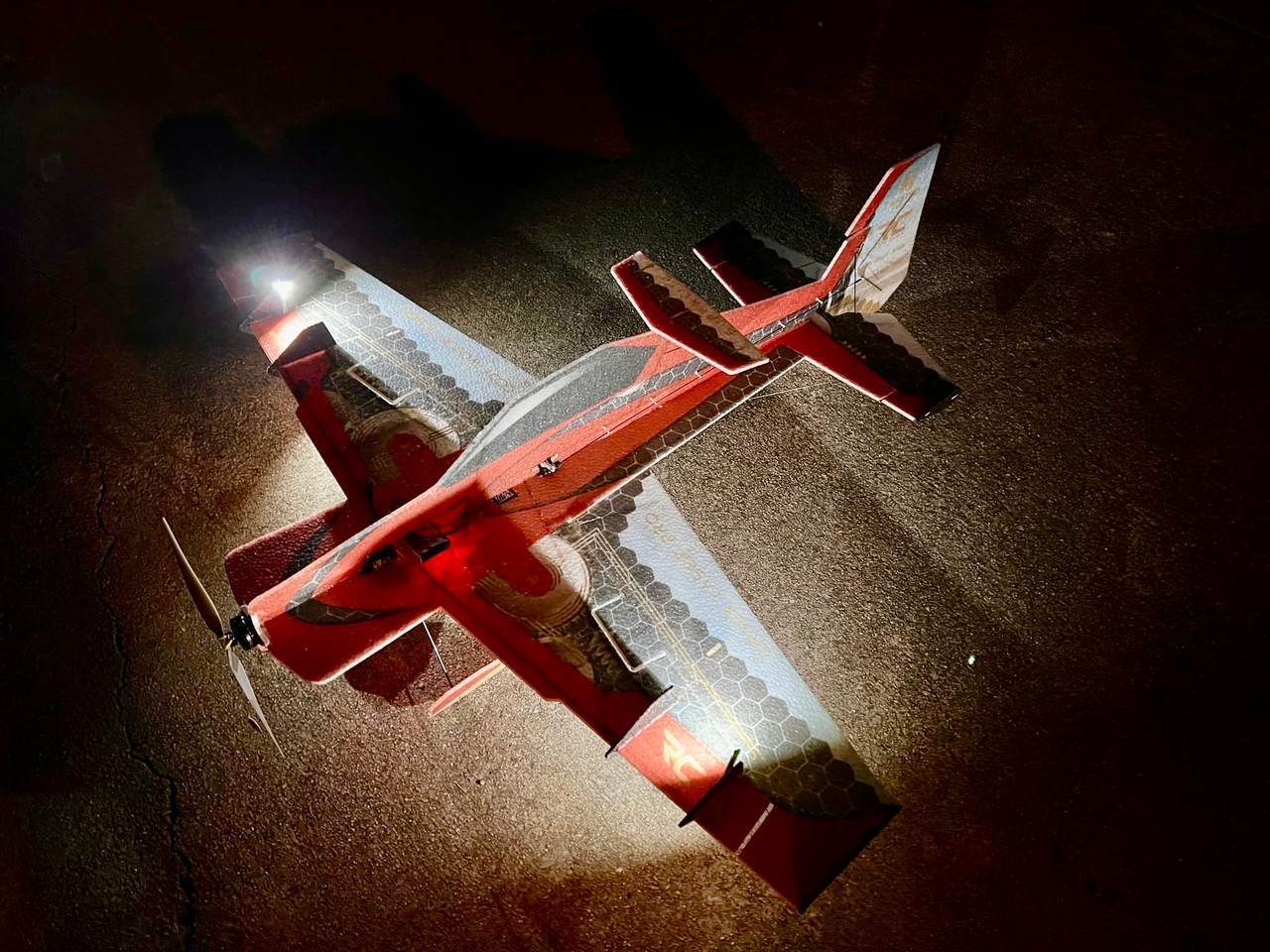

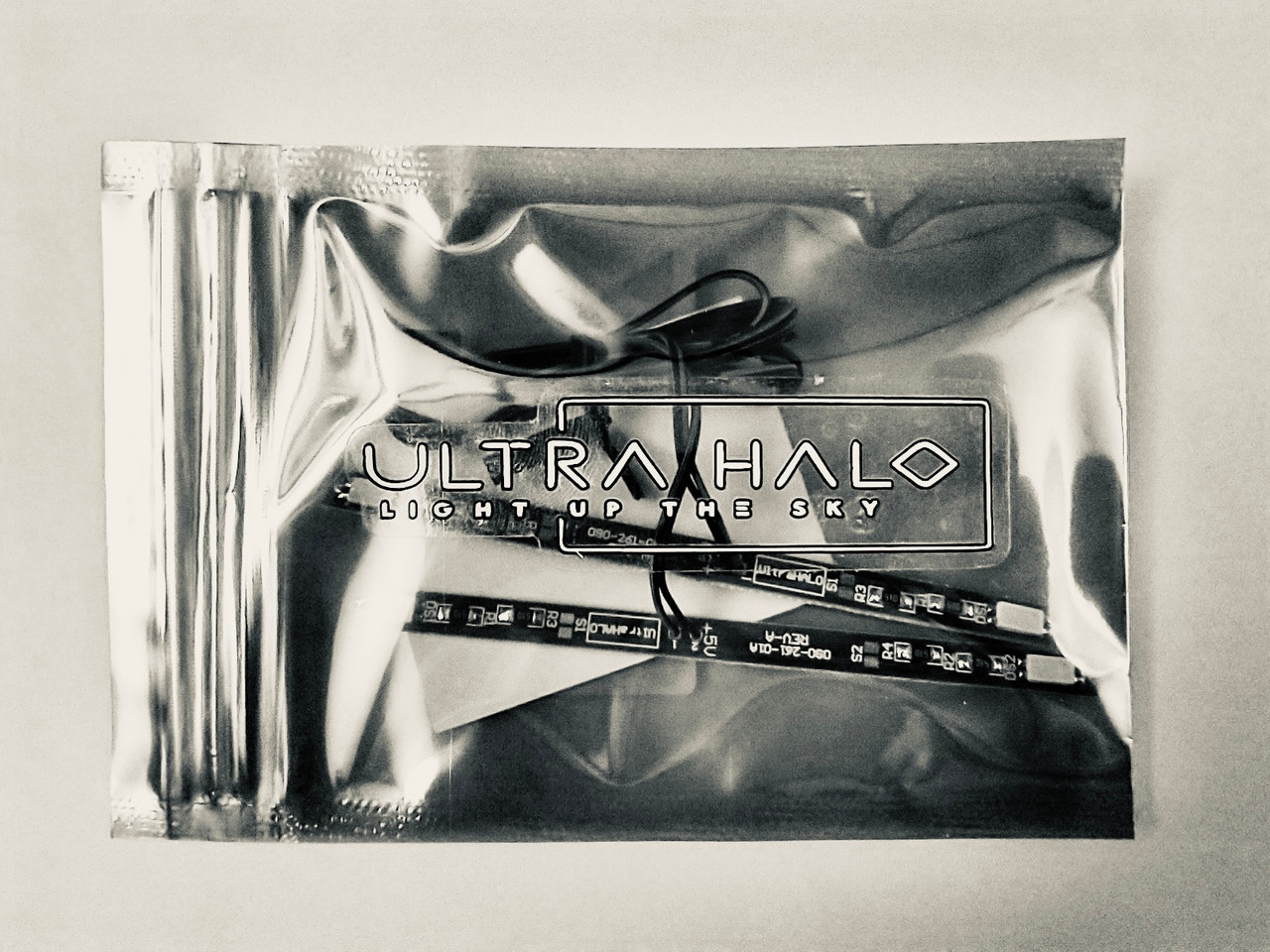

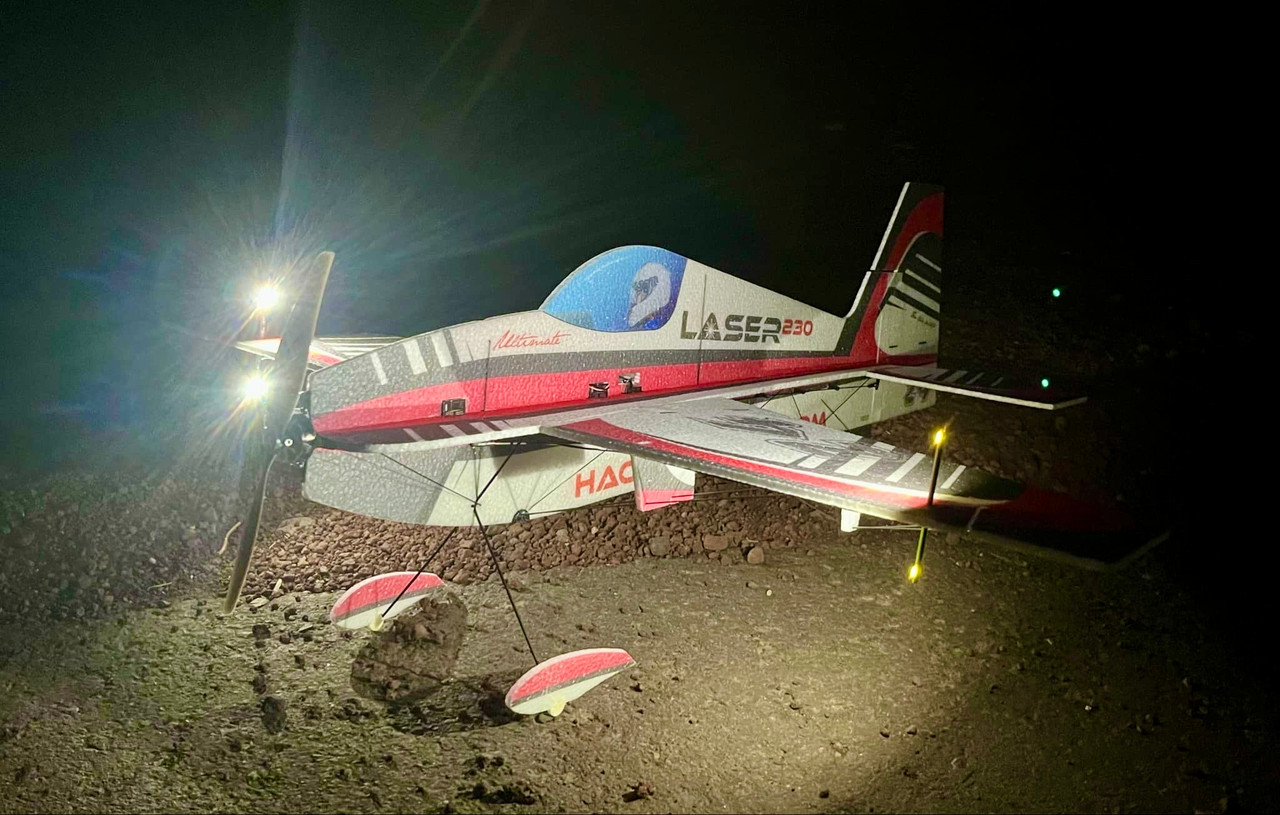

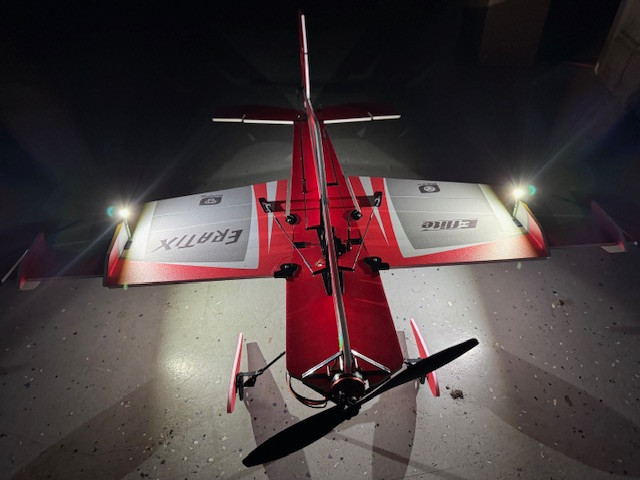

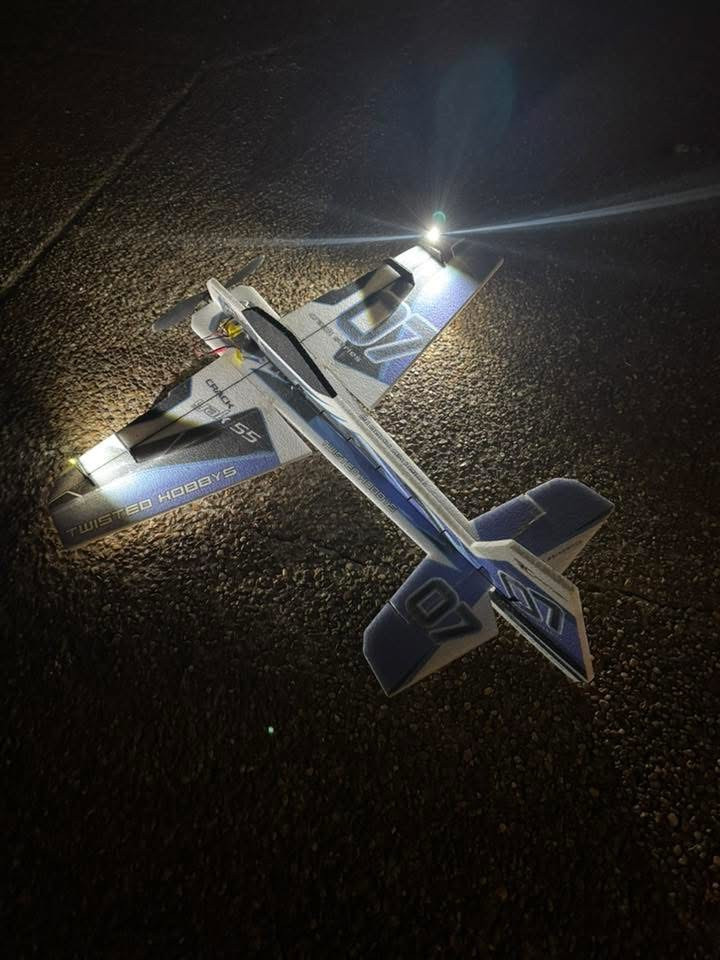

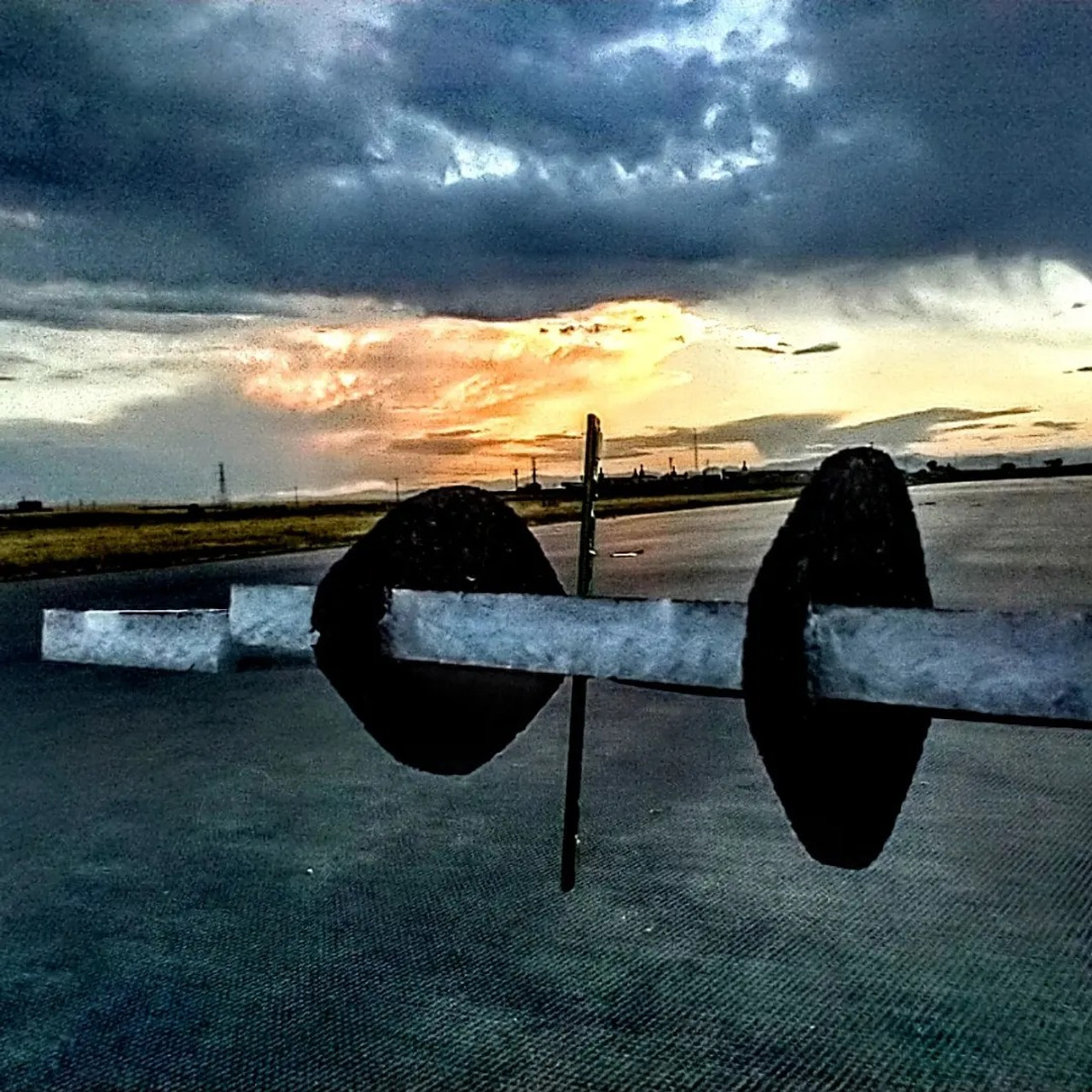

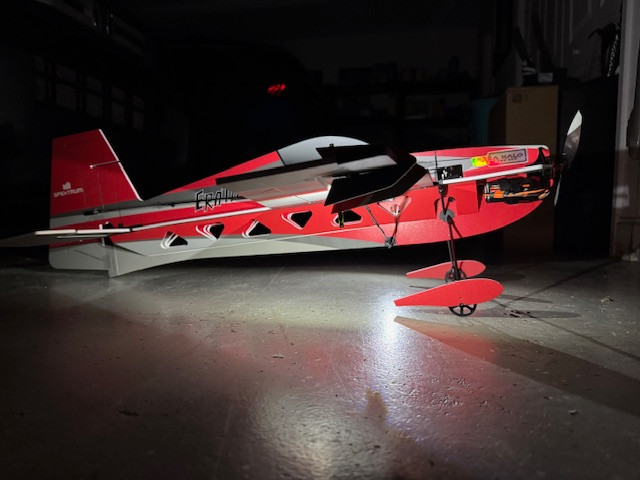

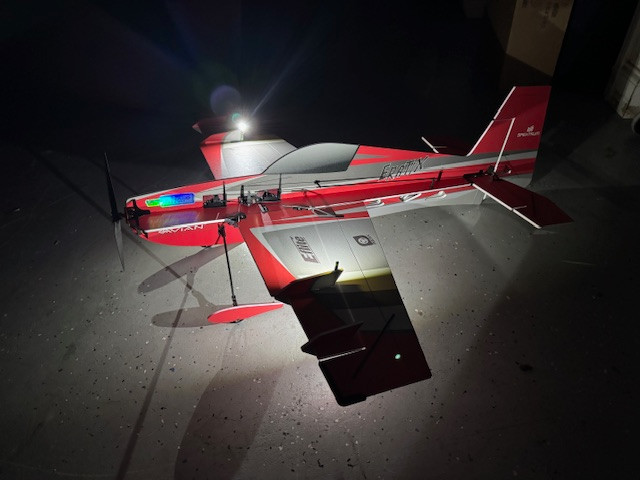

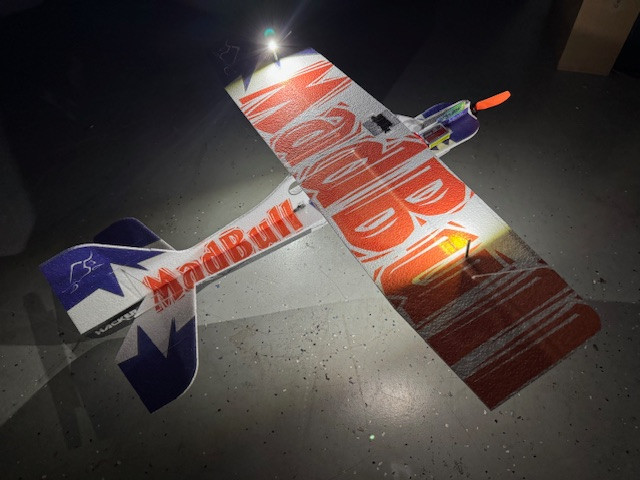

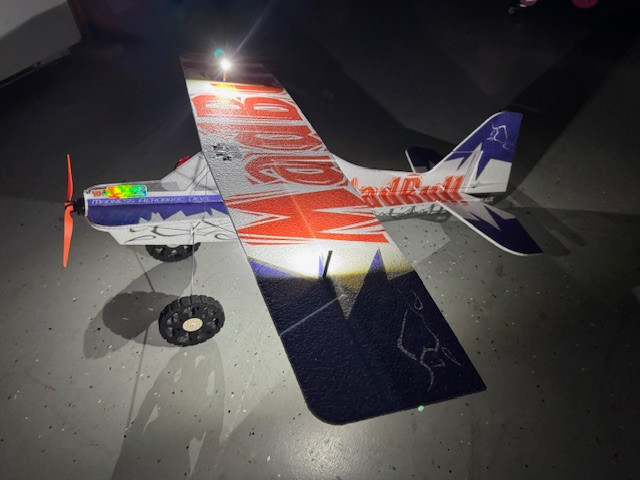

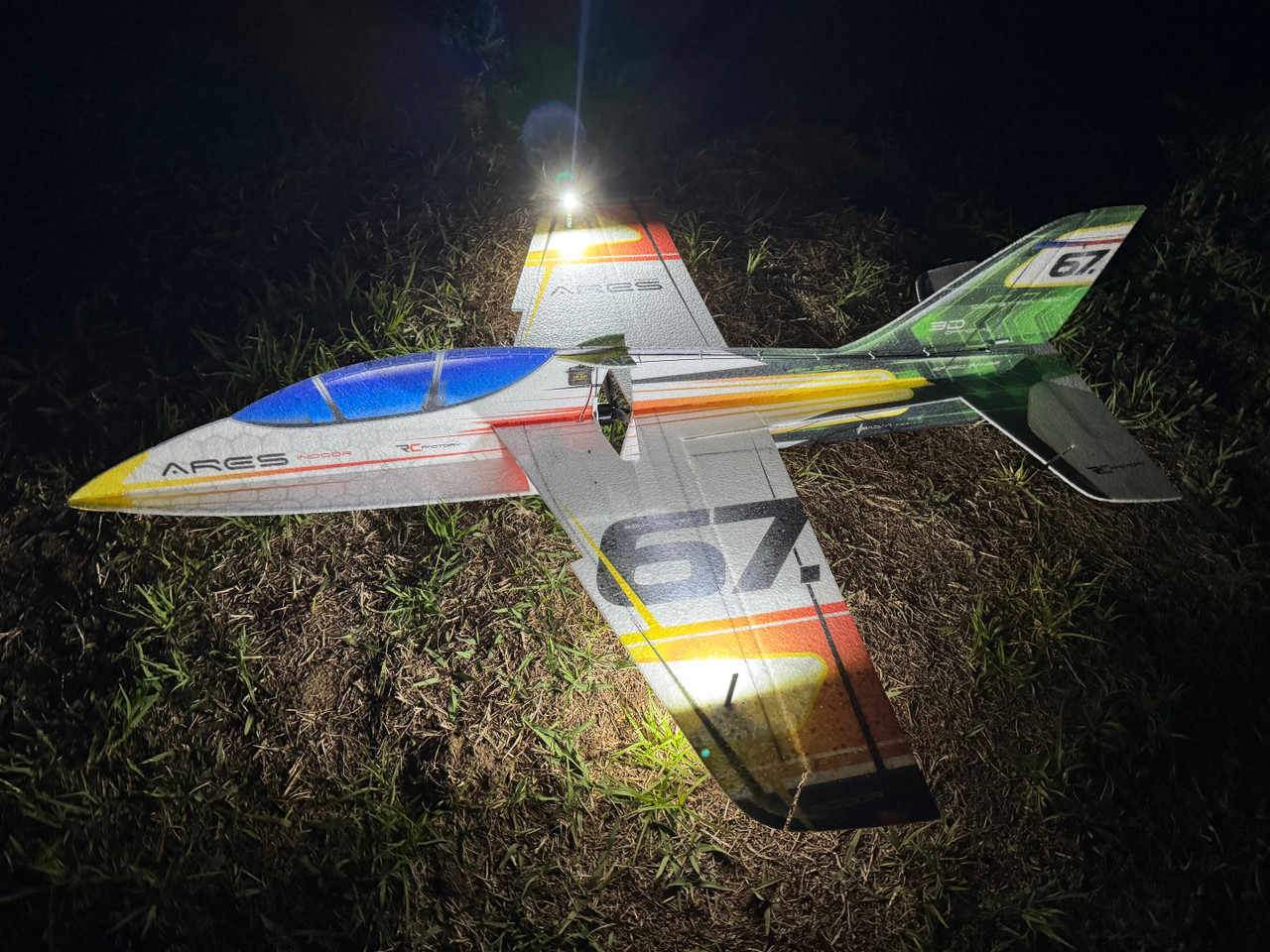

Our new XX0 is our smallest LED Light Kit which is already pre-wired/plug and play, requiring zero soldering!  Each kit includes a servo led plug connecting directly to receiver/power, eliminating the need for additional connectors. With single LEDs both on top and two on the bottom of each side bar, creates a brilliantly illuminated inward view of your model.

• XX0 Size (20-35" wingspan)
• Each "bar/stick" draws .04-.06 amps @ 5v/6v +/-.5mA
• Max volts of 6v without damaging unit, draw will be 60ma at 6 volts
• Recommended operating voltage is 4-6 volts (receiver voltage is usually 5 volts which is ideal) higher the voltage the brighter the unit.
• Power Dissipation: 700 mW (with cooling/heat sinking)
• Continuous Forward Current: 200mA (with cooling/heat sinking, 25 mA indefinitely)
• Operating Temperature: -40 to +85 Celsius (up to 185 degrees F)
• Storage Temperature: -40 to +100 C
• Color Temperature: 6500K (daylight)
• Luminous Flux 53 lumens typ. at 120 mA
• Optical Efficiency 141 1m/w
• Mechanical Shock: 1500G 0.5msec pulse
• Total Lumens per stick: 100 Lumens (about 9 foot-candles; average flashlight)

Optional: designed built into unit for even brighter performance if pilot wants:  S1 and S2 can be jumped (shorted with soldering dab) together to double total light output.  Max current on 6 volts is 120mah per sticker or 240mA for both sides together.
