Product Description
BOLT and Vertex Series ESC Programming Card
This programming card provides a faster and easier way to adjust available settings on compatible BOLT and Vertex Series brushless ESCs without navigating transmitter-stick programming menus.
Its clearly marked controls make it convenient to review or change supported ESC functions during initial setup or when adjusting an aircraft’s power system.
Compatibility and Features
- Compatible with supported BOLT and standard Vertex Series brushless ESCs
- Simplifies access to available programmable ESC settings
- Useful for initial setup and later power-system adjustments
- Compact and easy to keep in a field or setup box
- Not intended for the Vertex 17A 3D/4D reversible ESC
Basic Use
- Remove the propeller and disconnect the flight battery.
- Connect the ESC receiver lead to the programming card with the correct polarity.

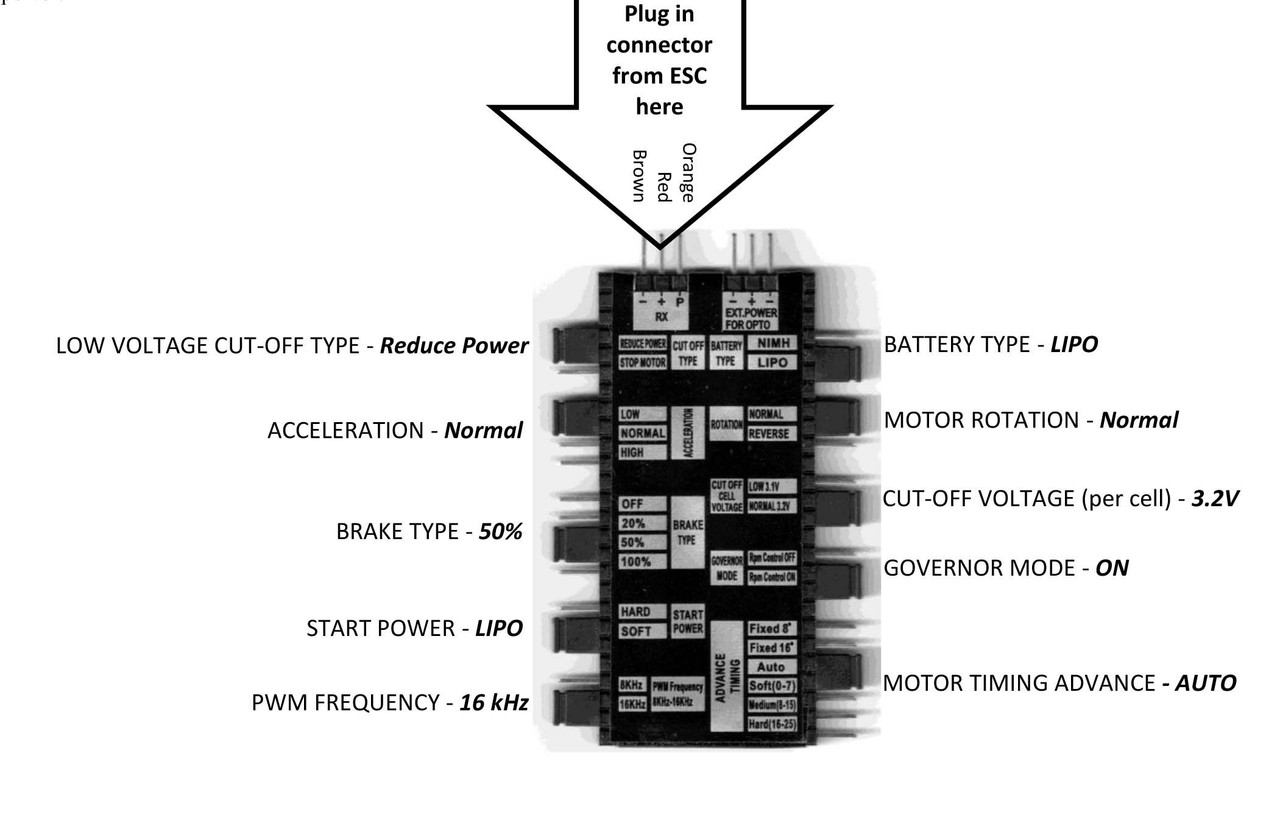

- Connect the flight battery and follow the markings on the card to select and save the desired settings.
- Disconnect the battery before removing the programming card.
Available settings may vary by ESC model. Confirm compatibility and follow the instructions supplied with the ESC before making changes.
Included
- One BOLT and Vertex Series ESC Programming Card
